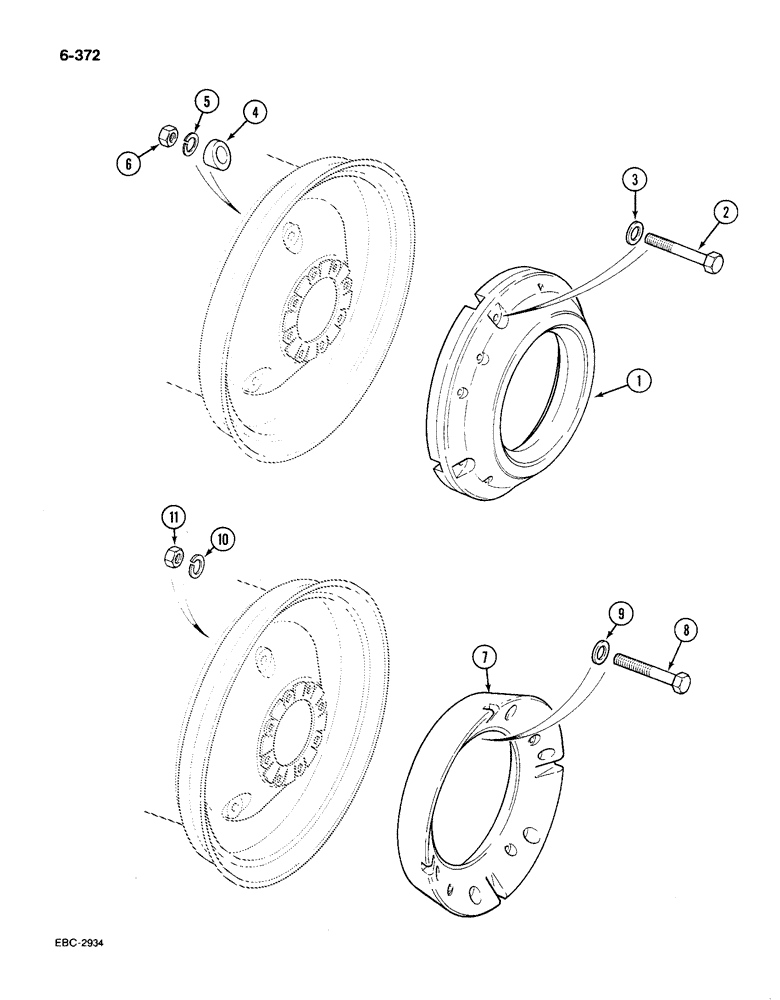

Запчасти Case IH 585 (6-372) - REAR WHEEL WEIGHTS, SOLID TYPE, 28 AND 30 INCH ATTACHED 8 RIM CLAMP WHEELS (06) - POWER TRAIN

1

3123758R3

WEIGHT

120 lbs., first set

2шт.

2

181151

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

SCREW hex cap, 7/16 NC x 3-1/4 inch, grade 5, 28 or 30 inch Sankey or Nagbol wheels

8шт.

3

21029R1

WASHER

flat, 15/32 x 1 x 7/64 inch

8шт.

4

537133R1

SPACER

taper, 28 or 30 inch Sankey or Nagbol wheels

8шт.

5

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

6

NLS

NO LONGER SERVICED

NUT hex, 7/16 inch NC, grade 5

8шт.

7

1500992C1

WEIGHT

first set, 28, 30 and 34" Lemmerez wheels

2шт.

8

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

hex, 5/8 NC x 3 inch, grade 5, 28, 30 and 34" Lemmerez wheels

12шт.

9

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

flat, 21/32 x 1-5/16 x 5/64 inch, 28, 30 and 34" Lemmerez wheels

12шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 28, 30 and 34" Lemmerez wheels 5/8"

12шт.

11

280374

NUT,Hex, 5/8" - 11, Gr 5

hex, 5/8 inch NC, grade 5, 28, 30 and 34" Lemmerez wheels

12шт.
