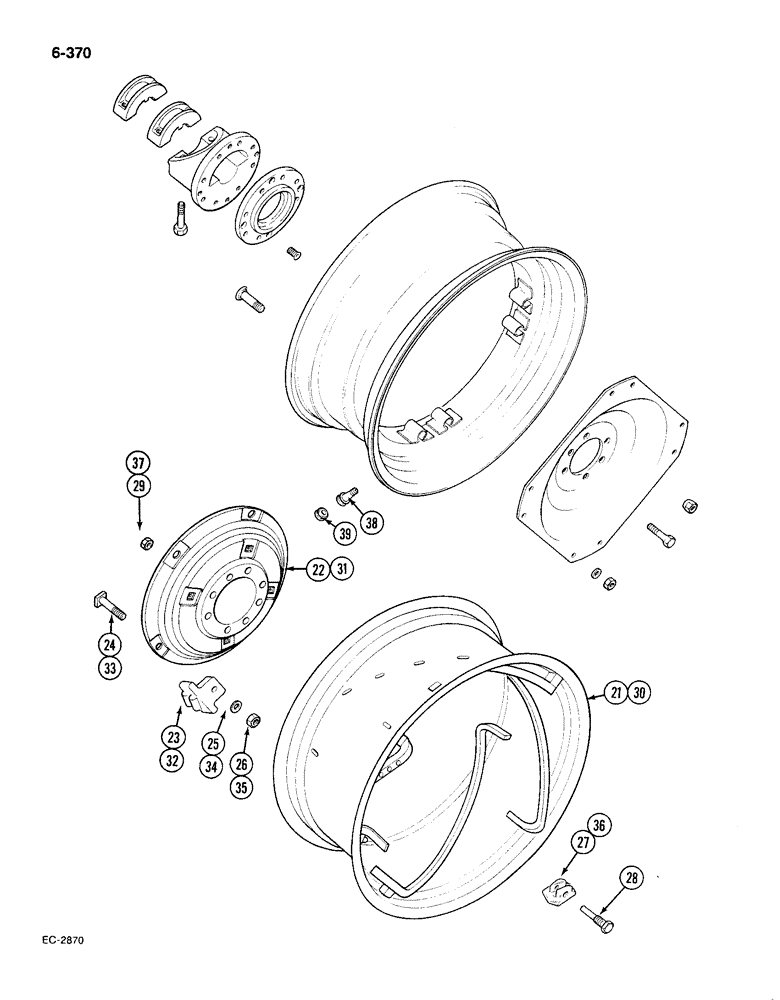

Запчасти Case IH 585 (6-370) - REAR WHEELS, 24, 26, 28, 30, 38 INCH AND POWER ADJUSTED, 38 INCH WHEEL (06) - POWER TRAIN

21

1282568C1

RIM

power adjusted wheel, W12-28 (for 13.6-28 tire), 28 inch rear

2шт.

22

1282567C1

DISC, WHEEL

DISC formed, 28 inch diameter, power adjusted rear

2шт.

23

399004R1

SHIN

CLAMP double ramp, 28 inch power adjusted rear wheel

10шт.

24

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT square head, 3/4 NC x 2-1/4 inch, 28 inch power adjusted rear wheel

10шт.

25

399007R1

WASHER

flat, 3/4 inch, 28 inch power adjusted rear wheel

10шт.

26

399006R1

WHEEL NUT

hex, 3/4 inch NC, 28 inch power adjusted rear wheel

10шт.

27

A9406

STOP

BODY stop, 28 inch power adjusted rear wheel

4шт.

28

K200142

SCREW,Hex, 9/16" x 2 1/8"

stop, 28 inch power adjusted rear wheel

4шт.

29

3047575R3

NUT,Wheel, 5/8"-18

rear wheel mounting, 28 inch power adjusted rear wheel

16шт.

30

1282566C1

RIM

power adjusted wheel, W14-30 (for 16.9-30 tire) 30 inch rear

2шт.

31

399002R1

DISC, WHEEL

DISC formed, 30 inch diameter, power adjusted rear wheels

2шт.

32

399004R1

SHIN

CLAMP double ramp, 30 inch power adjusted rear wheels

10шт.

33

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT square head, 3/4 NC x 2-1/4 inch, 30 inch power adjusted rear wheels

10шт.

34

399006R1

WHEEL NUT

hex, 3/4 inch NC, 30 inch power adjusted rear wheels

10шт.

35

A9406

STOP

BODY stop, 30 inch power adjusted rear wheels

4шт.

36

K200142

SCREW,Hex, 9/16" x 2 1/8"

stop, 30 inch power adjusted rear wheels

4шт.

37

3047575R3

NUT,Wheel, 5/8"-18

rear wheel mounting, 30 inch power adjusted

16шт.

38

27549R1

VALVE STEM

TR618A, 30" power adjusted rear wheels

1шт.

39

383697R1

PLUG

rubber, rim hole, 30 inch power adjusted rear wheels

1шт.

39

417194C1

PLUG

valve hole (use with rim 3129777R1), 30 inch power adjusted rear wheels

1шт.
