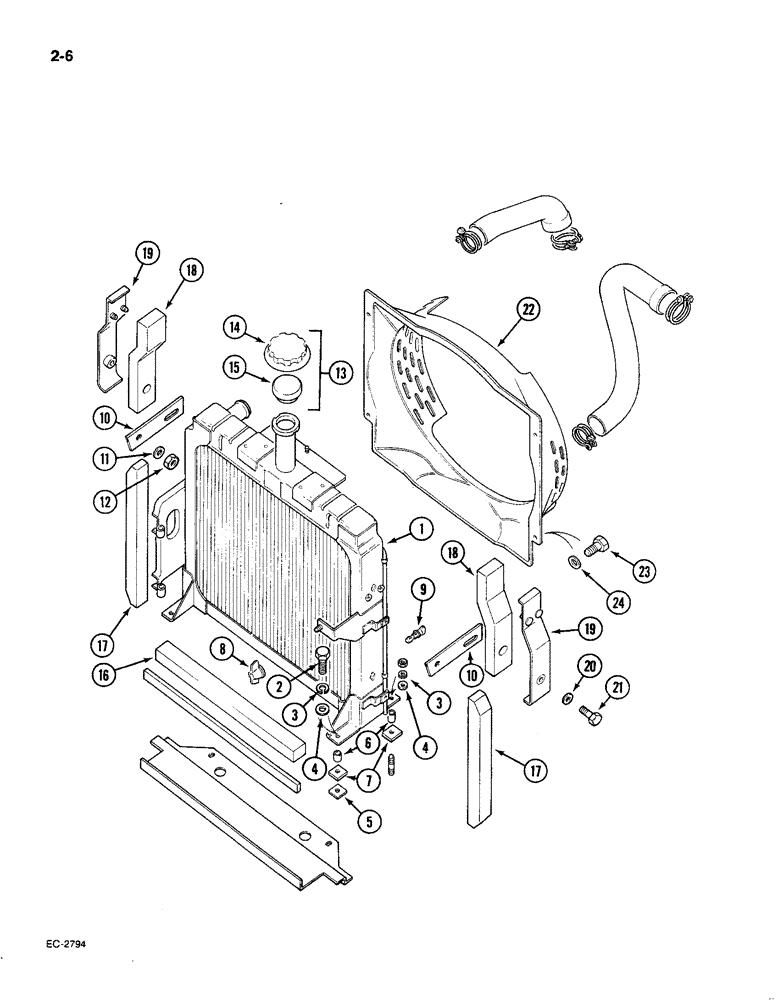

Запчасти Case IH 585 (2-08) - RADIATOR AND CONNECTIONS, P.I.N. 18001 AND AFTER, TRACTOR WITHOUT AIR CONDITIONING CONTD (02) - ENGINE

25

39149H

HOSE CLAMP

CLAMP hose, No. 64

2шт.

25

705935R91

HOSE CLAMP

CLAMP hose, Serial Range: (optional-39149H)

2шт.

26

402207R1

LARGE HOSE,50.80 mm ID x 179.83 mm, SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Inlet 50.80 mm ID x 179.83 mm, SAE 20R2

1шт.

26

402207R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

27

402205R1

LARGE HOSE,50.80 mm ID x 213.90 mm, SAE 100R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A OR SAE 20R4 CLASS D1, Outlet 50.80 mm ID x 213.90 mm, SAE 100R2

1шт.

27

402205R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

28

39205H

CLAMP

hose, No. 80, type C

2шт.

28

706082R91

CLAMP

hose, Serial Range: (optional-39205H)

2шт.

29

NSS

NOT SOLD SEPARAT

SEAL foam, baffle, 13 x 13 x 416 mm

1шт.

30

98957C1

BAFFLE

lower air, long

1шт.

31

99688C1

STUD

3/8 inch NC x 47 mm

2шт.

32

120377

NUT,3/8" - 16, Gr 5

2шт.
