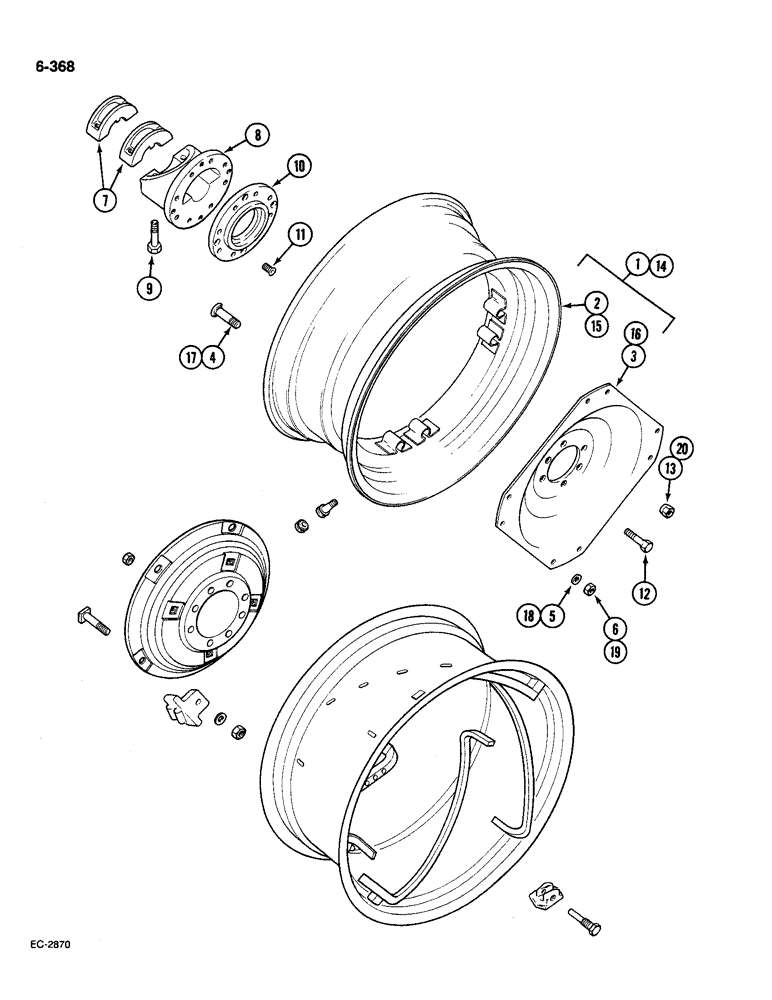

Запчасти Case IH 585 (6-368) - REAR WHEELS, 24, 26, 28, 30, 38 INCH AND POWER ADJUSTED, 24, 26, 28 AND 30 INCH WHEELS (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

WHEEL complete, Includes: Ref. 2-6

2шт.

2

374808R92

RIM

wheel, W12-24

1шт.

2

3128777R1

RIM rear, DW16-26

1шт.

2

363988R92

RIM

wheel, W12-28, includes clamps

1шт.

2

395856R2

RIM

wheel, DW14-30

1шт.

2

395855R2

RIM

wheel, DW16-30

1шт.

3

374806R1

DISC, WHEEL

DISC 24 and 26 inch (for use with rims 374808R92 and 3129777R1)

1шт.

3

361724R1

WHEEL DISC

DISC 28 and 30 inch rear (use with rims 363988R92, 395856R2 and 395855R2)

1шт.

4

363800R2

BOLT,5/8" - 18 x 3 1/8"

square head, 5/8 NF x 3-1/8 inch

6шт.

5

369730R2

WASHER

flat, 21/32 inch

6шт.

5

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

6

352777R2

WHEEL NUT

hex, 5/8 inch NF

6шт.

6

225861

NUT,5/8"-18, G8

(Optional to 352777R2) 5/8"-18, G8

6шт.

7

389539R1

CLAMP

rear wheel hub, for use with bar type rear axle

4шт.

8

530504R1

HUB

rear wheel, for use with bar type rear axle

2шт.

9

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT special, hex head, for use with bar type rear axle

8шт.

9

271848

BOLT,Hex, 7/8" - 14 x 4 3/4", Gr 5

hex, 7/8 NF x 4-3/4 inch, grade 5 (Optional to 375463R2)

8шт.

10

365957R3

FLANGE

pilot, rear wheel hub, for use with bar type rear axle

2шт.

11

373367R1

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW pilot flange mounting, for use with bar type rear axle

8шт.

12

365397R3

WHEEL BOLT

BOLT rear wheel mounting, for use with bar type rear axle

16шт.

13

3047575R3

NUT,Wheel, 5/8"-18

rear wheel mounting

16шт.

14

1265243C92

WHEEL

complete, DW11-38 (for 13.6-38 tire), 38 inch, Includes: Ref. 15-19

2шт.

15

1265244C1

RIM

wheel, DW11-38, 38 inch wheel

1шт.

16

1265242C1

DISC, WHEEL

DISC wheel, 36 inch, 38

1шт.

17

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT coach, M16 x 120 mm, grade 8.8, 38 inch wheel

8шт.

18

1332731C1

WASHER

38 inch wheel

8шт.

19

1332732C1

NUT

hex, M16, grade 8, 38 inch wheel

8шт.

20

3047575R3

NUT,Wheel, 5/8"-18

rear wheel mounting, 38 inch

16шт.
