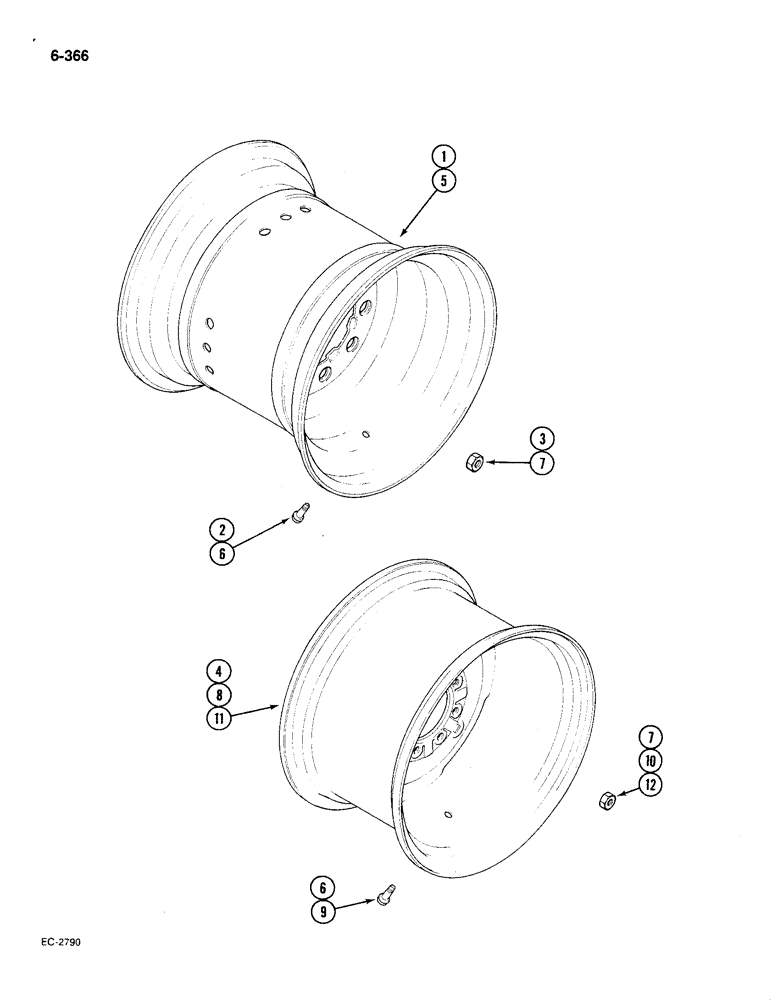

Запчасти Case IH 585 (6-366) - REAR WHEELS WITH INTEGRAL DISC, 16 INCH WHEEL, LOW PROFILE TRACTOR (06) - POWER TRAIN

1

386078R92

RIM

WHEEL rear, 16.1 x 16LB (for 18.4-16.1 and 21.51-16.1 tires)

2шт.

2

27549R1

VALVE STEM

TR618A

2шт.

3

3047575R3

NUT,Wheel, 5/8"-18

rear wheel, mounting

16шт.

4

1970636C1

WHEEL ASSY.

WHEEL complete, 16.1-w11c (for 13.5-16.1 tire), 16 inch - orchard tractor

2шт.

5

1970665C1

WHEEL ASSY.

WHEEL complete, 16.1-w16c (for 18.4-16.1 tire), 16 inch - orchard tractor

2шт.

5

1970664C1

WHEEL ASSY.

WHEEL complete, 16.1-w16c (for 21.51-16.1 tire), 16 inch - orchard tractor

2шт.

6

27549R1

VALVE STEM

TR618A, 16" wheels - orchard tractor

1шт.

7

3047575R3

NUT,Wheel, 5/8"-18

rear wheel, mounting, 16 inch wheels - orchard tractor

16шт.

8

376196R91

WHEEL

internal, includes disc, W12-24 (for 14.9-24 tire), 24 inch

2шт.

8

1288036C1

WHEEL ASSY.

WHEEL internal, includes disc, W15L-24 (for 16.9-24 and 18.4-24 tires), 24 inch

2шт.

9

27549R1

VALVE STEM

TR618A, 24" wheels

1шт.

10

3047575R3

NUT,Wheel, 5/8"-18

rear wheel, mounting, 24 inch wheels

16шт.

11

376197R1

WHEEL ASSY.

WHEEL complete, W12-28 (for 14.9-28 tire), 28 inch

2шт.

11

1288037C1

WHEEL

internal, includes disc, W15L-28 (for 16.9-28 tire), 28 inch

2шт.

12

3047575R3

NUT,Wheel, 5/8"-18

rear wheel, mounting, 28 inch

16шт.
