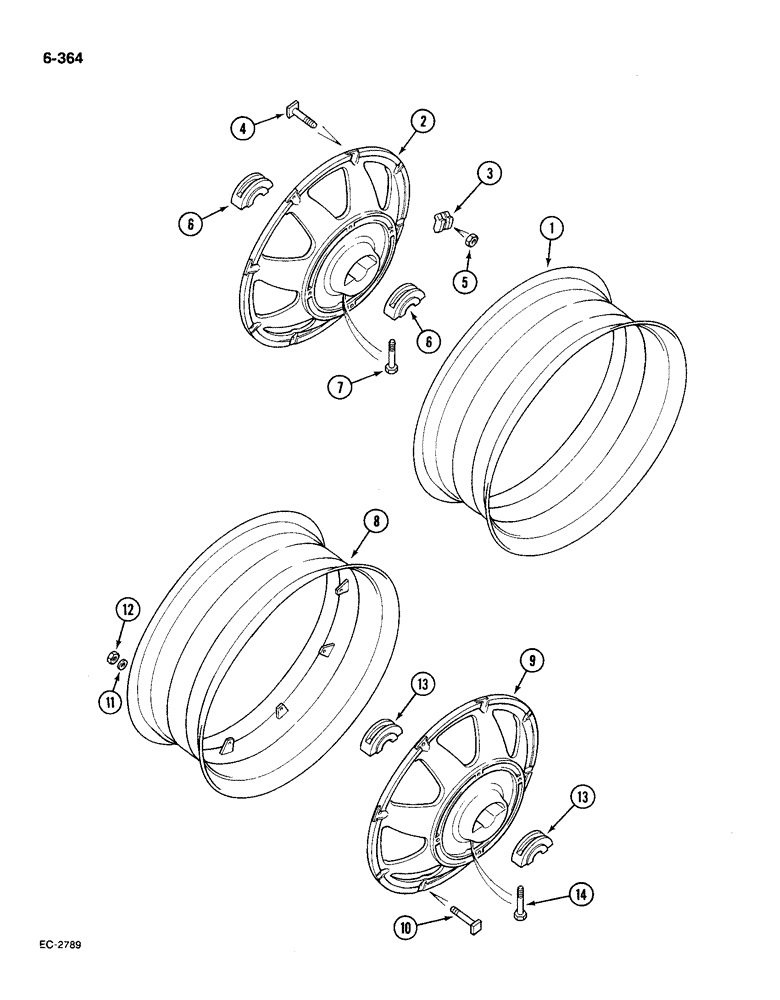

Запчасти Case IH 585 (6-364) - REAR WHEELS, CAST, 38 AND 42 INCH, TRACTORS WITH BAR TYPE REAR AXLE (06) - POWER TRAIN

1

380869R1

RIM

rear, complete, includes clamps, WDB14-38 (for 15.5-38 tire)

2шт.

2

392415R1

WHEEL

DISC wheel, 38 inch

2шт.

3

381725R1

SHIN

CLAMP rear wheel rim, adjustable

12шт.

3

381726R1

SHIN

CLAMP rear wheel rim, fixed

4шт.

4

381727R2

WHEEL BOLT,Sq Hd, 5/8" - 18 x 2 3/4"

BOLT rim clamp

16шт.

5

425-1110

NUT,5/8"-18, G5

hex, 5/8 inch NF

16шт.

6

389539R1

CLAMP

rear wheel hub

4шт.

7

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT special, hex head

8шт.

7

271848

BOLT,Hex, 7/8" - 14 x 4 3/4", Gr 5

hex, 7/8 NF x 4-3/4 inch (Optional to 375463R2)

8шт.

8

392714R91

RIM

rear, complete, WDB9-42, includes clamps (for 12.4-42 tire), 42 inch wheel

2шт.

9

388336R1

DISC

wheel, 42 inch (cast)

2шт.

10

381727R2

WHEEL BOLT,Sq Hd, 5/8" - 18 x 2 3/4"

BOLT rim clamp, 42 inch wheels

16шт.

11

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

flat, 21/32 x 1-5/16 x 5/64 inch, 42 inch wheels

16шт.

12

425-1110

NUT,5/8"-18, G5

hex, 5/8 inch NF, 42 inch wheel

16шт.

13

389539R1

CLAMP

rear wheel hub, 42 inch

4шт.

14

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT special, hex head, 42 inch wheel

8шт.

14

271848

BOLT,Hex, 7/8" - 14 x 4 3/4", Gr 5

hex, 7/8 NF x 4-3/4 inch (Optional to 375463R2), 42 inch wheel

8шт.
