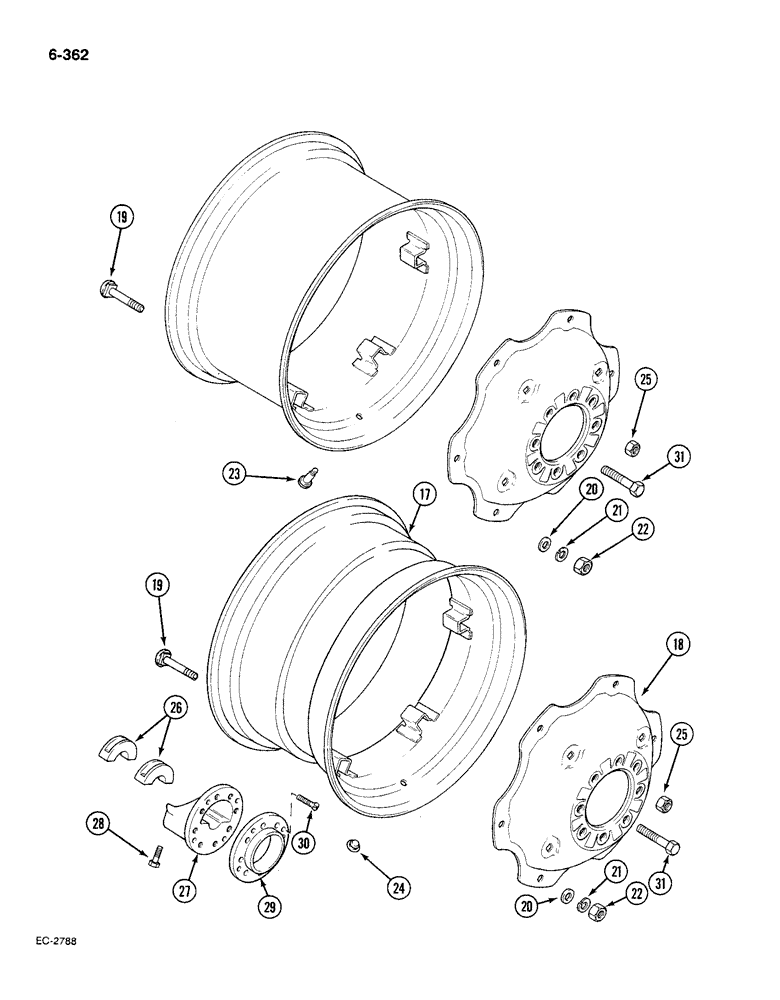

Запчасти Case IH 585 (6-362) - REAR WHEELS, STEEL, 24, 26, 28, AND 30 INCH, 30 INCH WHEELS (06) - POWER TRAIN

17

395856R2

RIM

rear, DW14-30, includes clamps (for 16.9-30 tire), 30 inch heavy duty wheels

2шт.

17

395855R2

RIM

rear, DW16-30, includes clamps (for 18.4-30 tire), 30 inch heavy duty wheels

2шт.

18

1333149C1

DISC, WHEEL

DISC 28 and 30 inch, 30 inch heavy duty

2шт.

19

363800R2

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp, double quatities for dual rear wheels, 30 inch heavy duty

12шт.

20

369730R2

WASHER

flat, 21/32 inch, double quatities for dual rear wheels, 30 inch heavy duty

12шт.

21

131140

LOCK WASHER,5/8"

WASHER, LOCK, , Double quantities for dual rear wheels, 30 inch heavy duty 5/8"

12шт.

22

352777R2

WHEEL NUT

rear wheel rim clamp, double quatities for dual rear wheels, 30 inch heavy duty

12шт.

22

225861

NUT,5/8"-18, G8

(Optional to 352777R2), 30 inch heavy duty wheels 5/8"-18, G8

12шт.

23

27549R1

VALVE STEM

TR 618A, 30" heavy duty wheels

1шт.

24

383697R1

PLUG

rubber, rim hole, 30 inch heavy duty wheels

1шт.

25

3047575R3

NUT,Wheel, 5/8"-18

NUT rear wheel, mounting

16шт.

26

389539R1

CLAMP

rear wheel hub, double quatities for dual rear wheels, for bar type axle

4шт.

27

530504R1

HUB

rear wheel, double quatities for dual rear wheels, clamp for bar type axle

2шт.

28

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT special, hex head, double quatities for dual rear wheels, hub clamp for bar type axle

8шт.

28

271848

BOLT,Hex, 7/8" - 14 x 4 3/4", Gr 5

hex, 7/8 NF x 4-3/4 inch (Optional to 375463R1), hub clamp for bar type axle

8шт.

29

365957R3

FLANGE

pilot, rear wheel hub, double quatities for dual rear wheels, clamp for bar type axle

2шт.

30

373367R1

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW pilot, flange mounting, double quatities for dual rear wheels, hub clamp for bar type axle

8шт.

31

365397R3

WHEEL BOLT

BOLT rear wheel mounting, double quatities for dual rear wheels, hub clamp for bar type axle

16шт.

Ref #31 (P/N 365397R3) - longer wheel bolt 1343216C1 to be used with HD hub.

1шт.
