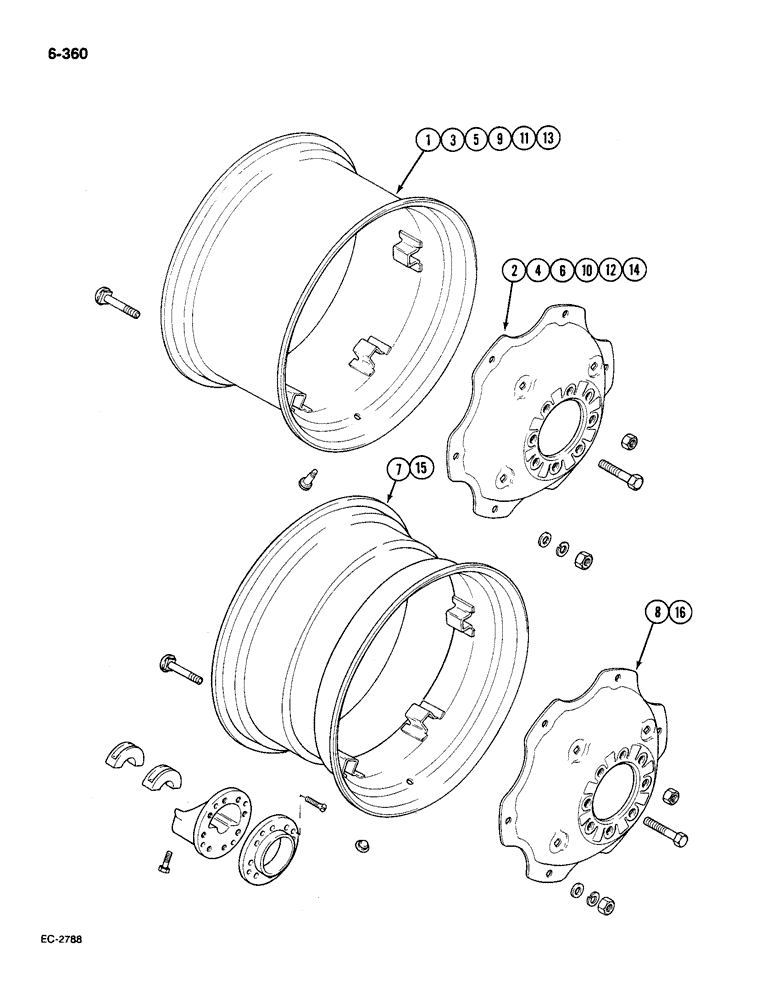

Запчасти Case IH 585 (6-360) - REAR WHEELS, STEEL, 24, 26, 28, AND 30 INCH, 24 INCH WHEEL, ORCHARD TRACTOR (06) - POWER TRAIN

1

374807R92

RIM

wheel, W10-24 (for 12.4-24 tire)

2шт.

2

374806R1

DISC, WHEEL

DISC rear wheel, 24 and 26 inch

2шт.

3

374808R92

RIM

rear, W12-24, includes clamps (for 14.9-24 tire), 24 inch wheel

2шт.

3

1265033C92

RIM

rear, W15L-24, including clamps (for 16.9-24 tire), 24 inch wheel

2шт.

4

374806R1

DISC, WHEEL

DISC rear wheel, 24 and 26 inch

2шт.

5

1265033C92

RIM

rear wheel, W15L-24, including clamps (for 16.9-24 tire), 24 inch heavy duty wheel

2шт.

6

1333150C1

DISC, WHEEL

DISC 24 inch heavy duty

2шт.

7

3129777R1

RIM

rear, DW16-26, includes clamps (for 18.4-26 tire), 26 inch wheel

2шт.

8

374806R1

DISC, WHEEL

DISC rear wheel, 24 and 26 inch

2шт.

9

1265034C1

RIM

rear, W11-28, includes clamps (for 13.6-28 tire), 28 inch wheel

2шт.

9

363988R92

RIM

wheel, W12-28, includes clamps (for 14.9-28 tire), 28 inch wheels

2шт.

9

1265036C1

RIM

rear, W15L-28, includes clamps (for 16.9-28 and 18.4-28 tires), 28 inch wheels

2шт.

10

361724R1

WHEEL DISC

DISC rear wheels, 28 and 30 inch

2шт.

11

363988R92

RIM

wheel, W12-28, includes clamps (for 14.9-28 tire), 28 inch dual wheels

4шт.

Ref #11 (P/N 363988R92) - If 24" duals on tractor w/ 8.3 - 24 tire, use: 1332956C1 rim

1шт.

1332960C1 spacer band

1шт.

1333150C1 disc

1шт.

12

361724R1

WHEEL DISC

DISC 28 and 30 inch rear wheels, dual

4шт.

13

1265036C1

RIM

rear, W15L-28, includes clamps (for 16.9-28 and 18.4-28 tires), 28 inch heavy duty wheels

2шт.

14

1333149C1

DISC, WHEEL

DISC 28 and 30 inch, heavy duty

2шт.

15

395856R2

RIM

rear, DW14-30, includes clamps (for 16.9-30 tire), 30 inch wheelsRIM

2шт.

15

395855R2

RIM

rear, DW16-30, includes clamps (for 18.4-30 tire), 30 inch wheels

2шт.

16

361724R1

WHEEL DISC

DISC rear, 28 and 30 inch

2шт.
