Запчасти Case IH 585 (6-356) - PROTECTION SHIELDS, 4WD PRIOR TO P.I.N. 18001 (06) - POWER TRAIN

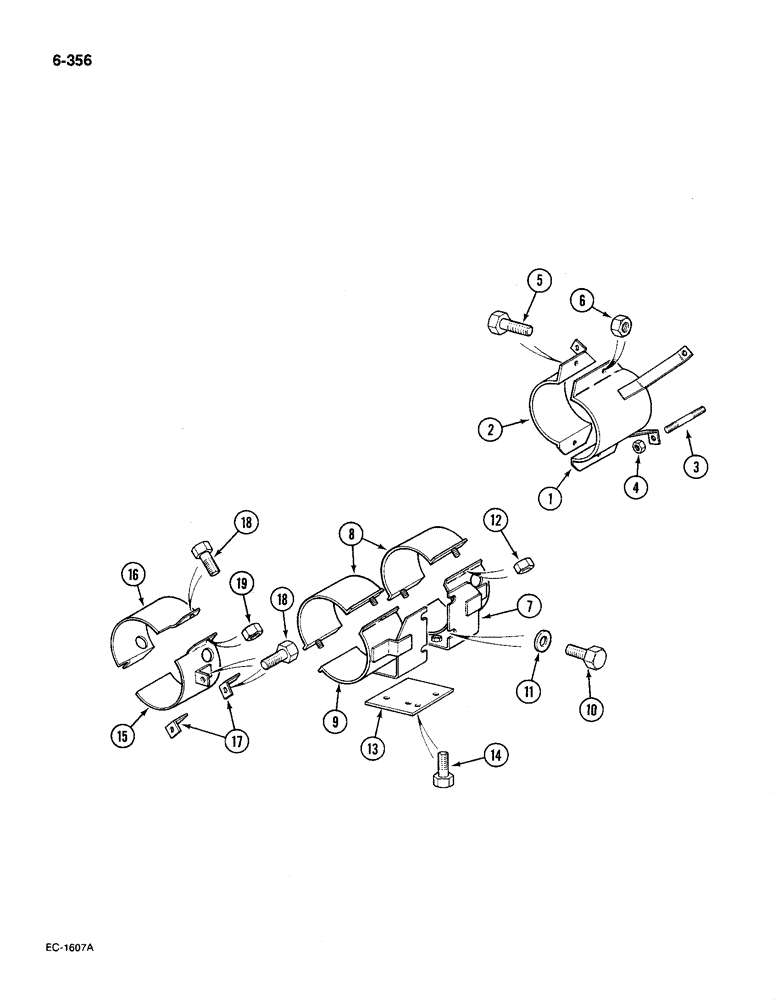

Схема запчастей Case IH 585 - (6-356) - PROTECTION SHIELDS, 4WD PRIOR TO P.I.N. 18001 (06) - POWER TRAIN
3
19
7
1
10
11
12
16
14
15
9
17
18
8
2
13
6
4
18
5

Артикул

Название

Примечание

Количество

1

82170C1

SHIELD

outer, front axle

1шт.

2

82171C1

SHIELD

inner, front axle

1шт.

3

82222C1

STUD

M10 x 67 mm

3шт.

4

30359R1

NUT

hex, M10, grade 8

3шт.

5

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

6

934310R1

NUT,M8, Cl 8

hex, M8, class 8

2шт.

7

82159C1

SHIELD

pillow block, front outer

1шт.

8

82195C1

SHIELD

pillow block, inner

2шт.

9

82160C1

SHIELD

pillow block, rear outer

1шт.

10

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

4шт.

11

120396

WASHER

flat, 0.531 x 1.063 x 0.074 inch

4шт.

12

934310R1

NUT,M8, Cl 8

hex, M8, class 8

4шт.

13

82177C1

PLATE

1шт.

14

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

15

82163C1

SHIELD

rear, outer

1шт.

16

82161C1

SHIELD

rear, inner

1шт.

17

82164C1

ANGLE

shield mounting

2шт.

18

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

5шт.

19

934310R1

NUT,M8, Cl 8

hex, M8, class 8

2шт.

Выбрано товаров: 19
