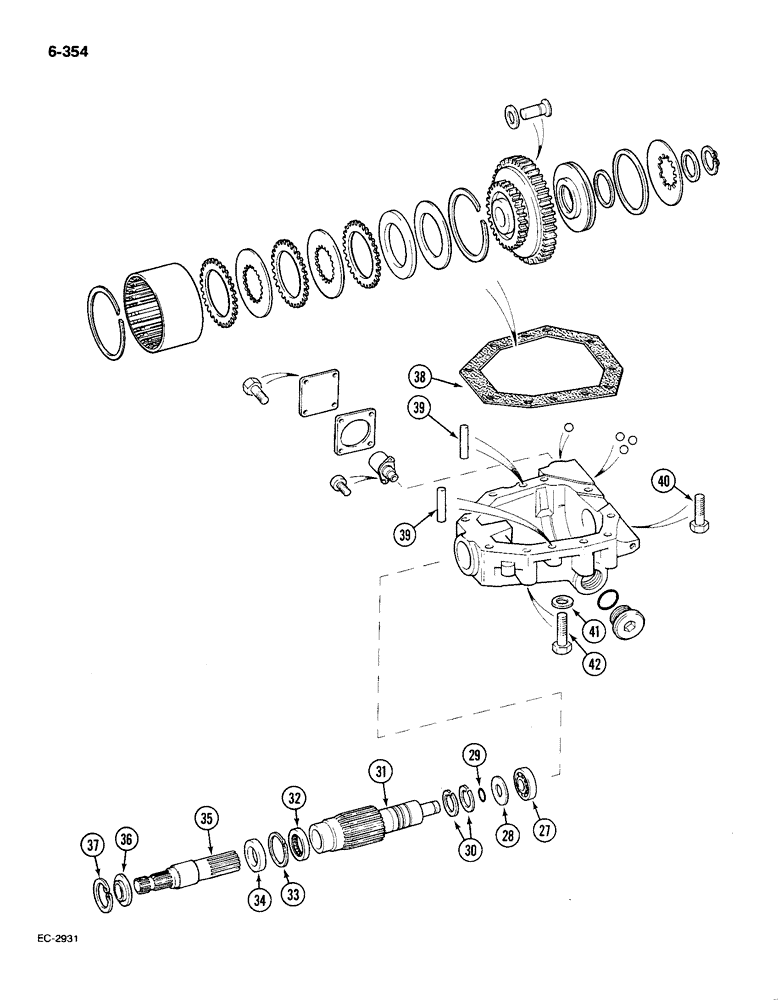

Запчасти Case IH 585 (6-354) - TRANSFER GEARBOX, 4WD P.I.N. 18001 AND AFTER, CONTD (06) - POWER TRAIN

82360C91

DRIVE

BOX transfer gear, Includes: Ref. 27-37

1шт.

27

81088C1

BEARING, ROLLER

BEARING roller

1шт.

28

81089C1

THRUST WASHER

WASHER

1шт.

29

81182C1

RING

19 x 1.5 mm

1шт.

30

81191C1

SEALING RING

RING 35 x 2 mm

2шт.

31

81192C1

SHAFT

drive

1шт.

32

81093C1

BEARING, ROLLER

BEARING roller

1шт.

33

933086R1

SNAP RING,M30, Ext

- retaining, external, 27.48 mm

1шт.

34

81086C1

OIL SEAL

SEAL oil

1шт.

35

81158C1

SHAFT

1шт.

36

81087C1

RING, SNAP

RETAINER

1шт.

37

934443R1

SNAP RING,M58, Int

RING retaining, internal, 61.74 mm

1шт.

38

82632C2

GASKET

transfer gear box

1шт.

39

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

40

25658R1

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 8

hex, 1/2 NC x 4-1/4 inch, grade 8

5шт.

41

26273R1

WASHER

flat, 0.531 x 1.062 x 0.134 inch

4шт.

41

26273R1

WASHER

flat, 0.531 x 1.062 x 0.134 inch

4шт.

42

25285R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

hex, 1/2 NC x 3-1/4 inch grade 8

4шт.
