Запчасти Case IH 585 (6-352) - TRANSFER GEARBOX, 4WD P.I.N. 18001 AND AFTER (06) - POWER TRAIN

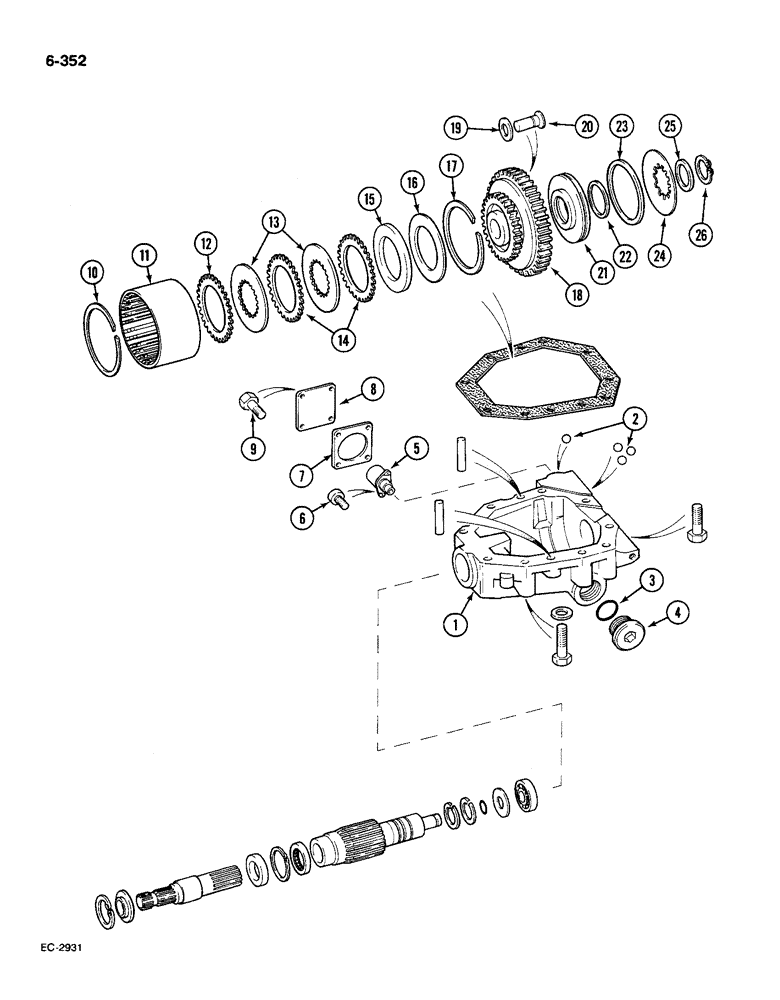

Схема запчастей Case IH 585 - (6-352) - TRANSFER GEARBOX, 4WD P.I.N. 18001 AND AFTER (06) - POWER TRAIN
24
6
2
26
9
14
12
23
10
21
18
15
22
20
8
13
3
7
11
4
17
5
19
1
25
16

Артикул

Название

Примечание

Количество

82360C91

DRIVE

BOX transfer gear, Includes: Ref. 1-26

1шт.

1

81170C1

CASE

HOUSING transfer gear, Includes: Ref. 2

1шт.

2

3057501R1

BALL

6 mm diameter

4шт.

3

81168C1

O-RING,2.65mm Thk x 32.5mm ID, Cl 5, 75 Duro

33 x 2 mm

1шт.

4

905476R1

PLUG

hex socket, M36, grade 5.8

1шт.

5

81171C1

VALVE

1шт.

Ref #5 - (Solenoid)

1шт.

6

930974R1

HEX SOC SCREW,M5 x 10mm, Cl 8.8

SCREW cap, hex socket, M5 x 10 mm, class 8.8

2шт.

7

81172C1

PACKING RING

GASKET valve cover

1шт.

8

81173C1

COVER

valve

1шт.

9

930244R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, M8 x 25 mm, class 8.8

4шт.

10

81190C1

RING, SNAP

RING snap

1шт.

11

81184C1

RING CARRIER

CARRIER

1шт.

12

81189C1

WASHER

WASHER

1шт.

13

81187C1

DRIVEN PLATE

PLATE inner

8шт.

14

81188C1

DRIVE PLATE

PLATE outer

9шт.

15

81186C1

WASHER

shim, 4.0 mm

1шт.

15

1968318C1

WASHER

WASHER shim, 4.4 mm

1шт.

15

1968319C1

WASHER

WASHER shim, 4.6 mm

1шт.

15

1968320C1

WASHER

WASHER shim, 4.8 mm

1шт.

15

1968321C1

WASHER

WASHER shim, 5.0 mm

1шт.

15

1968322C1

WASHER

WASHER shim, 5.2 mm

1шт.

15

1968323C1

WASHER

WASHER shim, 5.4 mm

1шт.

15

1968324C1

WASHER

WASHER shim, 5.6 mm

1шт.

15

1968317C1

WASHER

WASHER shim, 5.8 mm

1шт.

15

1968325C1

WASHER

WASHER shim, 6.0 mm

1шт.

15

1968326C1

WASHER

WASHER shim, 6.2 mm

1шт.

15

1968327C1

WASHER

WASHER shim, 6.4 mm

1шт.

15

1968328C1

WASHER

WASHER shim, 6.6 mm

1шт.

15

1968329C1

WASHER

WASHER shim, 6.8 mm

1шт.

16

81186C1

WASHER

shim, 4.0 mm

1шт.

17

81185C1

CIRCLIP

RING snap

1шт.

18

81174C1

GEAR

1шт.

19

81179C1

O-RING,1.5mm Thk x 7mm ID, 70 Duro

7 x 1.5 mm

1шт.

20

81178C1

LARGE PIN,17mm OD x 34.7mm L

BOLT

1шт.

21

81175C1

PISTON

1шт.

22

81176C1

PACKING RING

RING 51.5 x 2.5 mm

1шт.

23

81177C1

RING,Square, 2.5mm Thk x 107mm ID

RING 107 x 2.5 mm

1шт.

24

81180C1

SPRING

SPRING

1шт.

25

81181C1

RING

1шт.

26

800-1145

SNAP RING,M45, Ext

Retaining (Replaces 933283C1, 933283R1) M45, Ext

1шт.

Выбрано товаров: 41
