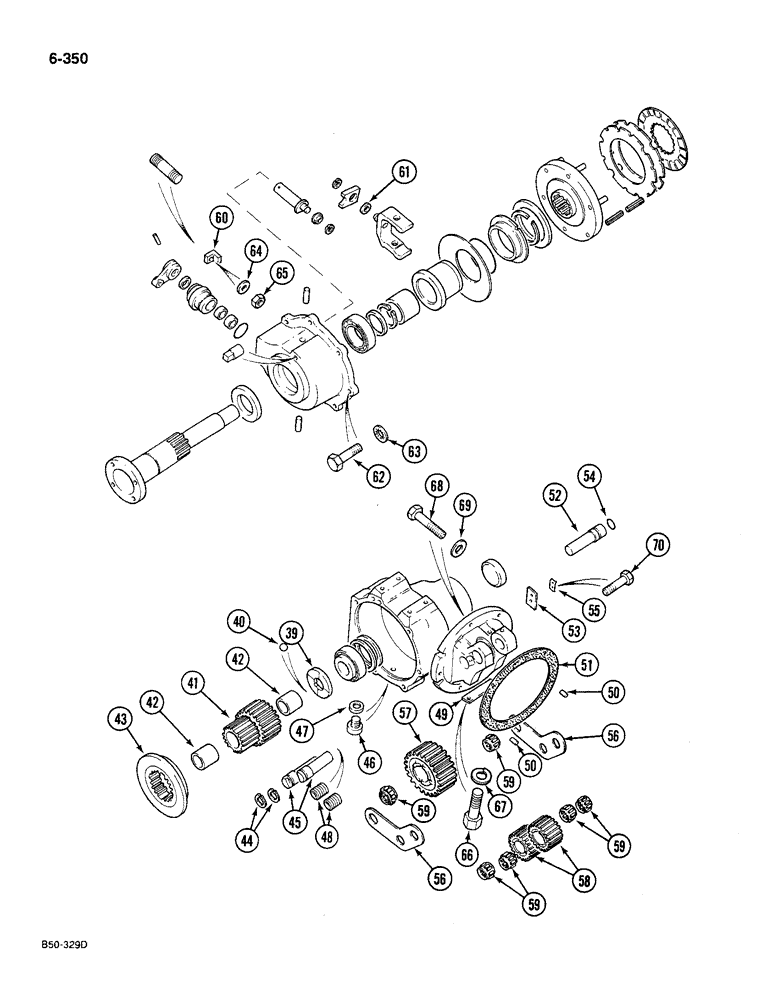

Запчасти Case IH 585 (6-350) - PTO CLUTCH, 4WD PRIOR TO P.I.N. 18001, CONTD (06) - POWER TRAIN

39

1500649C1

THRUST WASHER

thrust

1шт.

40

17008R1

BALL,1/4" Dia

Grade 25 metal 1/4" Dia

1шт.

41

3129960R91

GEAR

24 teeth, with bushing, Includes: Ref. 42

1шт.

42

3129962R1

BUSHING

2шт.

43

3129963R2

PLATE

thrust

1шт.

44

399837R1

SNAP RING,#118, 1.121", Ext

RING retaining, external, 1.121 inch

2шт.

45

3129951R1

PIN

idler gear

2шт.

46

934259R1

PLUG,Hex, M10 x 1

1шт.

47

718743R1

SEALING RING,M10 x 16 x 1

Ring M10 x 16 x 1

1шт.

48

444687

PLUG,Hex Soc, 1/8"-27

- Automotive, NPTFLG Hex Soc, 1/8"-27

2шт.

49

3129966R1

BRACKET

1шт.

50

20154R1

DOWEL,5/16" x 7/8"

PIN dowel, 5/16 x 7/8 inch

2шт.

51

984791C1

GASKET

0.4 mm

1шт.

51

1502059C1

GASKET

0.3 mm

1шт.

52

3129953R1

PIN

idler gear

1шт.

53

3129957R1

PLATE

Gear pin lock

2шт.

54

3129954R1

O-RING

1шт.

55

3129958R1

PLATE, LOCKING

PLATE bolt lock

2шт.

56

3129956R1

THRUST WASHER

WASHER thrust, idler gear

2шт.

57

3129952R1

GEAR, IDLER

GEAR idler, 31 teeth

1шт.

58

3129950R1

GEAR, IDLER

GEAR idler, 20 teeth

2шт.

59

3129955R91

BEARING, NEEDLE

BEARING needle, roller

6шт.

60

1502172C1

ANGLE

clamp

1шт.

61

3405811R1

BUSHING

1шт.

62

30021R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

7шт.

63

933965R1

LOCK WASHER,M10

7шт.

64

95-11034

WASHER,1/4"

plain, 0.344 x 0.688 x 0.051 inch

1шт.

65

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

1шт.

66

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

hex, M8 x 20 mm, class 8.8

2шт.

67

934309R1

LOCK WASHER,M8

WASHER lock, M8

2шт.

68

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

7шт.

69

25896R1

WASHER,13/32" x 13/16" x .09", HDN

hardened, 13/32 x 13/16 x 3/32 inch

2шт.

70

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, M6 x 12 mm, class 8.8

4шт.
