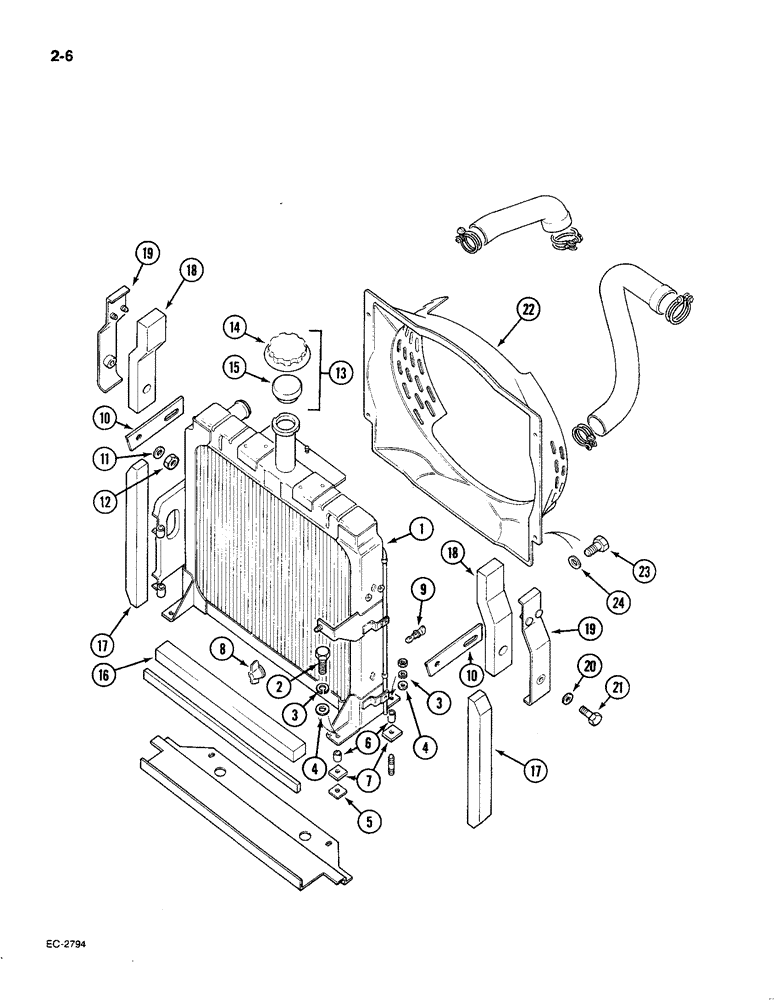

Запчасти Case IH 585 (2-06) - RADIATOR AND CONNECTIONS, P.I.N. 18001 AND AFTER, TRACTOR WITHOUT AIR CONDITIONING (02) - ENGINE

1

1536373C1

RADIATOR

new, with new bolt pattern (Replaces 84524C93)

1шт.

1a

1536376C1

RADIATOR

new, with new bolt pattern (Replaces 1970646C1), MFD tractors without cab, Start Serial: 22746

1шт.

1

1333111C1

RADIATOR

(orchard tractor)

1шт.

2

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, grade 5, ZND

2шт.

3

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

4шт.

5

84525C1

SPACER

2шт.

6

99427C1

SPACER

BUSHING

4шт.

7

47240D

PAD

radiator

4шт.

8

142745

NUT, WING

NUT wing, 5/16 inch NC

1шт.

9

3113083R1

PLUG, DRAIN

VALVE drain, 1/4 inch

1шт.

10

94313C1

STRAP

radiator mounting, Serial Range: -20910

2шт.

10

99996C2

STRAP

radiator mounting, Start Serial: 20910

2шт.

11

120394

WASHER,3/8", SAE

WASHER flat, 13/32 x 13/16 x 3/64 inch, Serial Range: -20910

2шт.

11

30175R1

WASHER,M8 x 17.5 x 2, HT

, Start Serial: 20910

2шт.

12

9411655

LOCK NUT,3/8"-16, GB

NUT hex lock, 3/8 inch NC, grade 5, Serial Range: -20910

2шт.

12

1970881C1

NUT

hex, 8 mm, Nyloc, Start Serial: 20910

2шт.

13

1500626C91

PLUG

CAP radiator, complete, Includes: Ref. 14 and 15.

1шт.

14

532674R1

PLUG

COVER radiator cap

1шт.

15

3118639R1

CAP

radiator

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL foam, radiator lower, 19 x 25 x 450 mm

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL foam, radiator side, 32 x 38 x 325 mm

2шт.

18

98934C1

SEAL

SEAL radiator side

2шт.

18

1970626C1

SEAL

foam, radiator side, MFD tractors without cab, Start Serial: 22746

2шт.

19

98907C1

GUARD

SHIELD radiator seal

2шт.

19

1333038C1

GUARD

SHIELD radiator seal, MFD tractors without cab, Start Serial: 22746

2шт.

19

1333122C1

GUARD

SHIELD radiator seal (orchard tractor)

2шт.

20

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

2шт.

21

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

22

527475R3

HOUSING

fan

1шт.

22

1333138C1

GUARD

SHROUD fan (orchard tractor)

1шт.

23

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

24

95-11028

WASHER,1/4"

flat, 0.281 x 0.625 x 0.051 inch

4шт.
