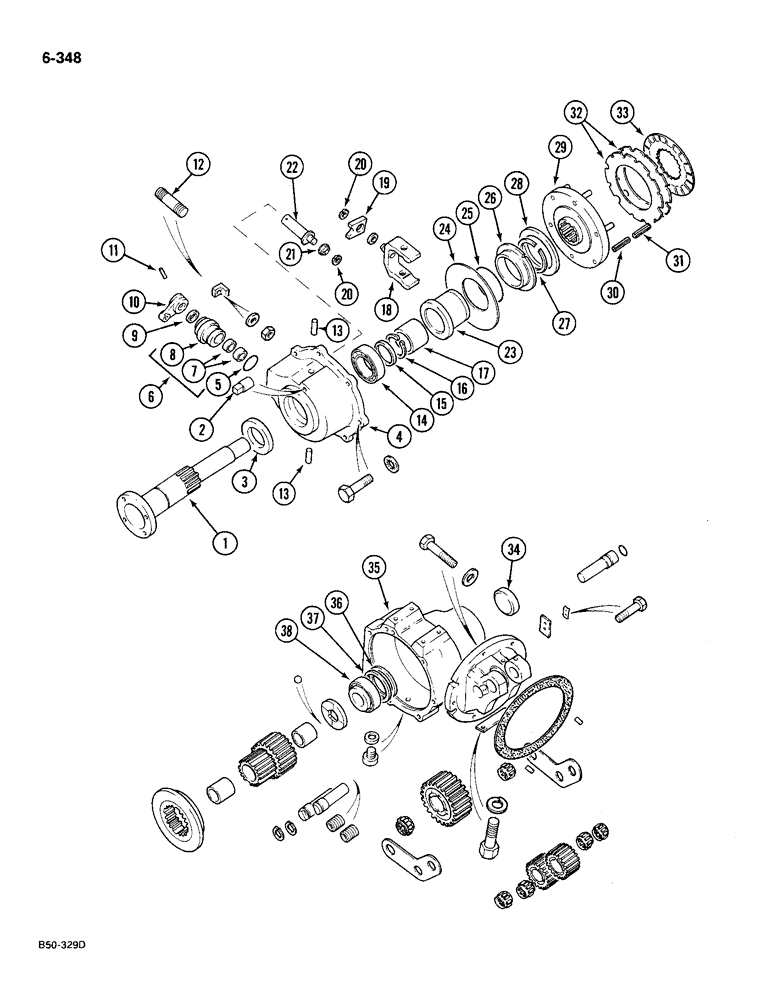

Запчасти Case IH 585 (6-348) - PTO CLUTCH, 4WD PRIOR TO P.I.N. 18001 (06) - POWER TRAIN

1

3129959R1

SHAFT

main

1шт.

2

9617020

PLUG,1/4" - 18 x 0.48"

automotive Hex Socket, 1/4 inch NPTF

1шт.

3

3216278R2

OIL SEAL,55mm ID x 90mm OD x 15.5mm Thk

oil (Replaces 3126278R2)

1шт.

4

3223136R1

CASE

COVER front

1шт.

5

3217269R1

O-RING,2.5mm Thk x 42mm ID, 70 Duro

1шт.

6

1500548C92

HOUSING ASSY.

HOUSING complete with bearing, Includes: Ref. 7 and 8

1шт.

7

3064504R91

BEARING

needle

2шт.

8

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

9

1500550C1

OIL SEAL

1шт.

10

1500013C1

LEVER

lower

1шт.

11

Q2935

LOCK PIN,M8 x 45, Slotted

PIN, LOCK, M8 x 45, Slotted

1шт.

12

3072253R1

STUD

1шт.

13

3216291R3

PIN

pivot

2шт.

14

3216279R91

TAPERED BEARING

tapered roller

1шт.

15

3216292R1

WASHER

1шт.

16

933030R1

SNAP RING,M55, Ext

RING retaining

1шт.

14

3216279R91

TAPERED BEARING

tapered roller

1шт.

17

3216285R1

SPACER

1шт.

18

3223146R92

YOKE

1шт.

19

3225050R91

SUPPORT ASSY.

ARM control assembly

1шт.

20

933120R1

SNAP RING,M15, Ext

RAIN ring retaining, external, 13.94 mm

2шт.

21

3216283R1

BALL JOINT

BUSHING

1шт.

22

1500547C1

PIN

eccentric

1шт.

23

1500647C91

SLEEVE ASSY

SLEEVE clutch release

1шт.

24

3223717R1

SPRING WASHER

WASHER belleville

1шт.

25

3216293R3

RING

1шт.

26

3216294R3

RING

BUSHING

1шт.

27

934593R1

CIRCLIP,#80, 75.4 x 4.85 x 1.7

RING retaining

1шт.

28

3216295R91

THRUST BEARING,90mm ID x 120mm OD x 8mm W

thrust

1шт.

29

1500645C92

HUB

ASSEMBLY with pins, Includes: Ref. 30 and 31

1шт.

30

932323R1

LOCK PIN,M6 x 45, Slotted

PIN - slotted spring, 6 x 45 mm

6шт.

31

Q5348

LOCK PIN,10mm OD x 45mm L, Slotted

PIN, LOCK, M10 x 45, Slotted

6шт.

32

3221192R1

DISC

clutch outer

6шт.

33

1500651C1

CLUTCH PLATE,120mm ID x 156mm OD x 3.05mm Thk

clutch inner

4шт.

34

934581R1

PLUG,M63, Conical

cup

1шт.

35

3129949R1

CASE

mounting

1шт.

36

3142414R1

SHIM

0.10 mm

1шт.

36

3146816R1

SHIM

0.15 mm

1шт.

36

3142630R1

SHIM

0.20 mm

1шт.

36

3142631R1

SHIM

0.50 mm

1шт.

37

3223137R1

WASHER

1шт.

38

3220682R91

TAPERED BEARING,35mm ID x 80mm OD x 32.75mm W

tapered roller

1шт.

38

3225581R91

TAPERED BEARING

BEARING tapered roller, Serial Range: (Optional-3220682R91)

1шт.
