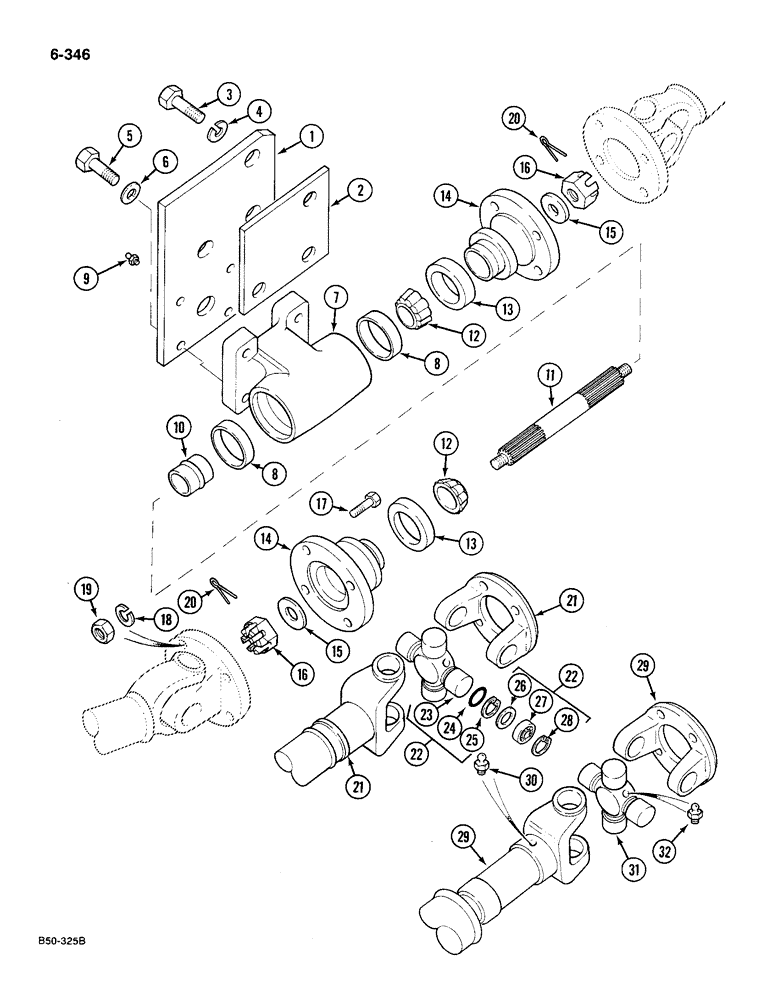

Запчасти Case IH 585 (6-346) - DRIVE SHAFT, 4WD PRIOR TO P.I.N. 18001 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
3129947R1
SUPPORT
BRACKET, pillow block
1шт.
2
3121579R1
SPACER
PLATE spacer
1шт.
4
131142
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
3шт.
5
24862R1
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8
4шт.
6
NLS
NO LONGER SERVICED
flat, 0.531 x 1.063 x 0.074 inch
4шт.
7
3129942R91
BLOCK ASSY.
BLOCK pillow, Includes: Ref. 8
1шт.
8
651817R11
BEARING cup
2шт.
9
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , NPTF 1/8"-27 x .66 lg
1шт.
10
3129945R1
SPACER
1шт.
11
3129944R1
SHAFT
1шт.
13
3129946R1
OIL SEAL
oil
2шт.
13
1004318C1
OIL SEAL
SEAL oil, Serial Range: (Optional-3129946R1)
2шт.
14
3129941R1
FLANGE
companion
2шт.
15
25556R1
WASHER,21/32" x 1 1/2" x .188", HDN
hardened, 21/32 x 1-1/2 x 3/16 inch
2шт.
16
1003759C1
NUT,5/8"-18
NUT hex, slotted
2шт.
17
870325R1
BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8
hex, 7/16 NC x 1-3/8 inch, grade 8
12шт.
18
115314
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
16шт.
19
9418646
NUT,7/16"-14, G8
hex, 7/16 inch NC, grade 8
16шт.
20
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
2шт.
21
3129940R92
SHAFT
drive, complete, Includes: Ref. 22-28
2шт.
22
1287973C91
U-JOINT SPIDER
PACKAGE service, U-joint repair, Includes: Ref. 23-28
4шт.
23
NSS
NOT SOLD SEPARAT
JOINT universal
1шт.
24
NSS
NOT SOLD SEPARAT
SEAL
4шт.
25
NSS
NOT SOLD SEPARAT
RETAINER seal
4шт.
26
NSS
NOT SOLD SEPARAT
WASHER thrust
4шт.
27
NSS
NOT SOLD SEPARAT
BEARING cup, with roller needles
4шт.
28
NSS
NOT SOLD SEPARAT
RING retaining
4шт.
29
82474C91
SHAFT ASSY.
SHAFT drive (Optional to 3129940R92), Includes: Ref. 30-32
2шт.
31
82475C91
U-JOINT SPIDER
JOINT universal, Includes: Ref. 32
2шт.
Выбрано товаров: 33
