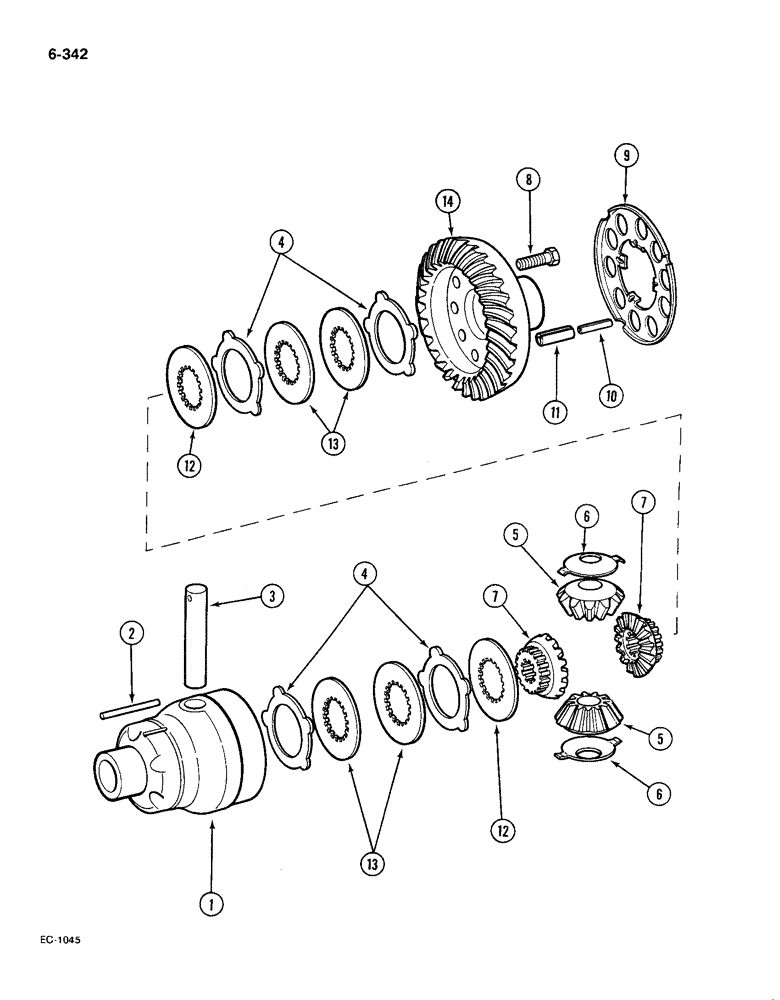

Запчасти Case IH 585 (6-342) - DIFFERENTIAL, 4 WHEEL DRIVE, APL-325, P.I.N. 18001 AND AFTER (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

DIFFERENTIAL limited slip, Includes: Ref. 1-14

1шт.

1

81441C1

HOUSING

CASE differential

1шт.

2

932183R1

LOCK PIN,M5 x 50, Slotted

PIN slotted spring, 5 x 50 mm

1шт.

3

81252C1

AXLE DIFFERENTIAL

SHAFT differential

1шт.

4

81239C1

DISC

DISK outer, 1.1 mm

10шт.

4

81238C1

DISC,46mm ID x 79mm OD x 1.2mm Thk

DISK outer, 1.2 mm

10шт.

4

81240C1

DISC

DISK outer, 1.3 mm

10шт.

4

81241C1

DISC

DISK outer, 1.4 mm

10шт.

5

81403C1

CONE PINION

GEAR pinion, differential

2шт.

6

81251C1

THRUST WASHER

WASHER thrust

2шт.

7

81442C1

CONE PINION

GEAR side, differential

2шт.

8

931369R1

BOLT,Hex, M10 x 1.5 x 28mm, Cl 10.9, Full Thd

BOLT hex, M10 x 28 mm, grade 10.9

10шт.

9

81253C1

PLATE

lock

1шт.

10

932671R1

LOCK PIN,M6 x 30, Slotted

PIN, slotted spring, 6 x 30 mm

5шт.

11

Q2948

LOCK PIN,M10 x 30, Slotted

PIN, LOCK, M10 x 30, Slotted

5шт.

12

81244C1

THRUST WASHER

WASHER lock, 2.8 mm

2шт.

12

81245C1

THRUST WASHER

WASHER lock, 2.9 mm

2шт.

12

81243C1

THRUST WASHER

WASHER lock, 3.0 mm

2шт.

12

81246C1

THRUST WASHER

WASHER lock, 3.1 mm

2шт.

12

81247C1

THRUST WASHER

WASHER lock, 3.2 mm

2шт.

12

81248C1

THRUST WASHER

WASHER lock,3.3 mm

2шт.

13

81242C1

SHIM

DISK, inner

8шт.

14

NSS

NOT SOLD SEPARAT

GEAR bevel (See Page 6-301)

1шт.
