(6-340) - DIFFERENTIAL, 4WD PRIOR TO P.I.N. 18001

Запчасти Case IH 585 (6-340) - DIFFERENTIAL, 4WD PRIOR TO P.I.N. 18001 (06) - POWER TRAIN

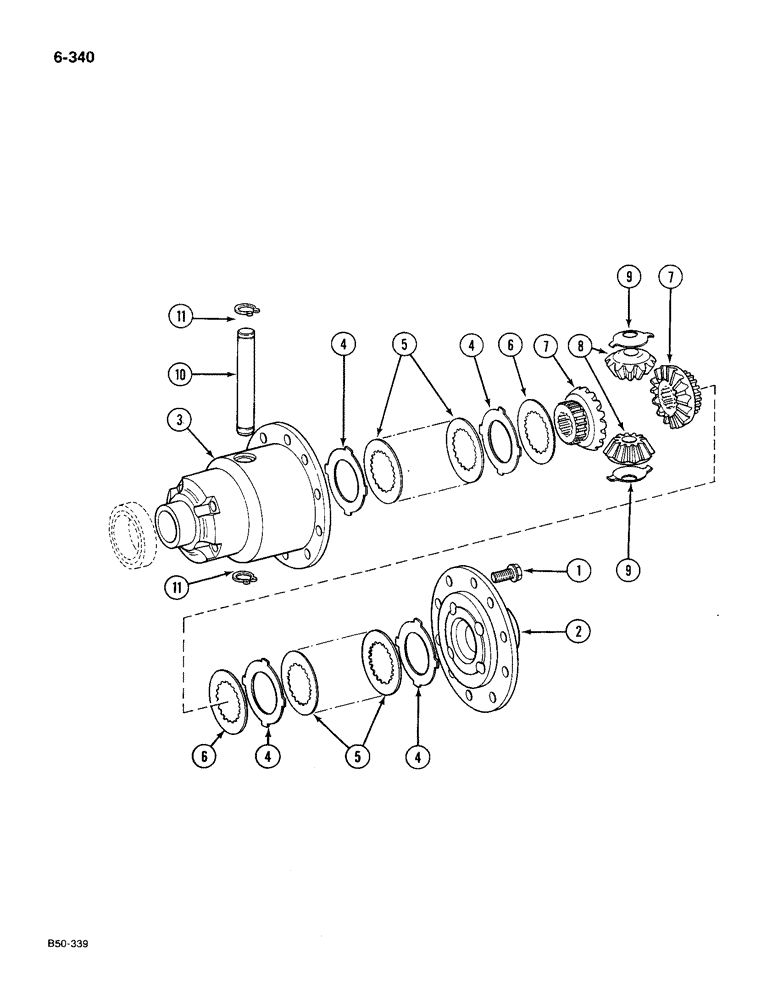

Схема запчастей Case IH 585 - (6-340) - DIFFERENTIAL, 4WD PRIOR TO P.I.N. 18001 (06) - POWER TRAIN
10
5
5
1
6
11
7
7
3
4
8
4
4
2
4
9
6
9
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3230285R1

BOLT

BOLT hex lock, M10 x 22 mm

10шт.

2

3230282R1

HOUSING

CASE differential (2 halves), Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

CASE

1шт.

4

3223459R1

SHIM

PLATE driven

10шт.

5

3223460R1

DRIVE PLATE

PLATE drive

8шт.

6

3223463R1

FIN

PLATE thrust, 2.8 mm

2шт.

6

3223462R1

PLATE, THRUST

PLATE thrust, 2.9 mm

2шт.

6

3223461R1

WASHER

PLATE thrust, 3.0 mm

2шт.

7

3230283R1

GEAR

differential side

2шт.

8

3230284R1

GEAR

pinion, differential

2шт.

9

3147204R1

WASHER, THRUST

WASHER thrust

2шт.

10

3216569R1

LARGE PIN

SHAFT differential

1шт.

11

3139039R1

RING, SNAP

RING sanp

2шт.
