Запчасти Case IH 585 (6-338) - DIFFERENTIAL CARRIER, 4WD PRIOR TO P.I.N. 18001 (06) - POWER TRAIN

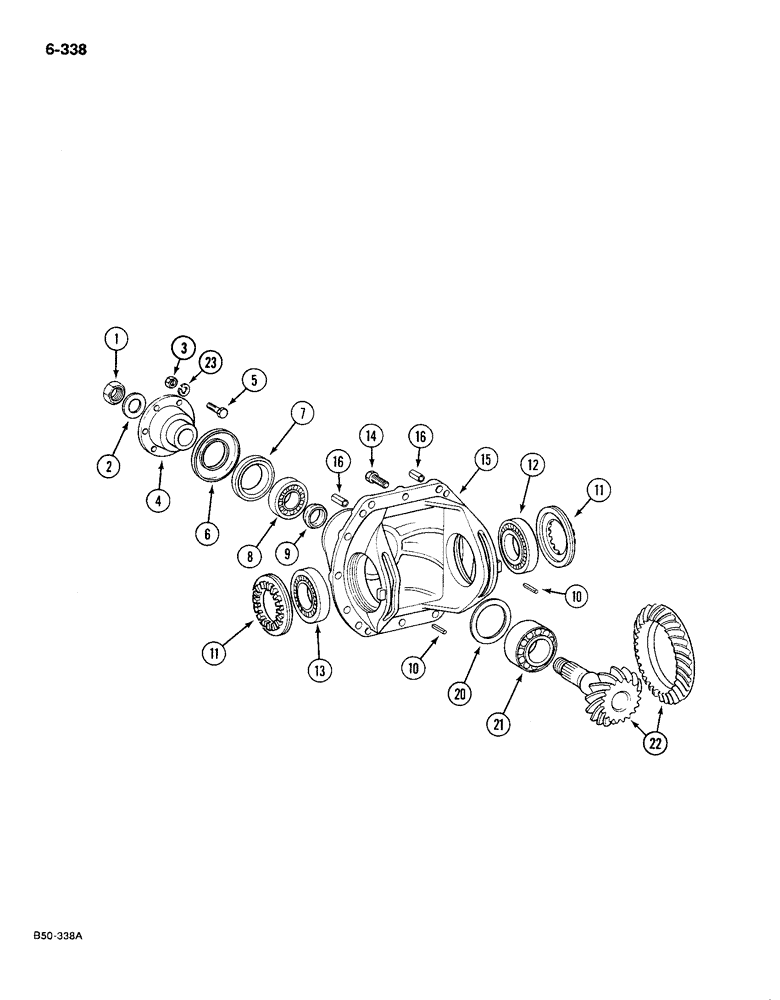

Схема запчастей Case IH 585 - (6-338) - DIFFERENTIAL CARRIER, 4WD PRIOR TO P.I.N. 18001 (06) - POWER TRAIN
1
3
13
16
4
21
15
8
2
9
11
23
12
5
10
22
6
14
20
10
11
16
7

Артикул

Название

Примечание

Количество

1

934649R1

NUT,M20 x 1.5, Cl 10

hex, M20, class 10

1шт.

2

3216566R1

WASHER

1шт.

3

9418646

NUT,7/16"-14, G8

hex, 7/16 inch NC, grade 8

4шт.

4

1502274C1

FLANGE

drive

1шт.

5

70427R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

hex, 7/16 NC x 1-1/4 inch, grade 8

4шт.

6

3216554R1

SHIELD

dust

1шт.

7

3146754R1

SEAL

SEAL oil

1шт.

8

871241R91

ROLLER BEARING

. cone, pinion rear

1шт.

8

530741R1

BEARING CUP

pinion rear

1шт.

9

3216560R1

SLEEVE

BUSHING

1шт.

10

Q5343

LOCK PIN,M5 x 30, Slotted

PIN, LOCK, M5 x 30, Slotted

2шт.

11

3216565R1

NUT

adjusting

2шт.

12

3216713R91

BEARING, ROLLER

BEARING tapered rollor

1шт.

13

3216713R91

BEARING, ROLLER

BEARING tapered roolor

1шт.

14

931370R1

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

hex, M10 x 35 mm, class 10.9

9шт.

14

82222C1

STUD

M10 x 67 mm

3шт.

15

3216559R1

HOUSING

differential

1шт.

16

932601R1

RIVET

PIN slotted spring, 10 x 30 mm

2шт.

20

3216564R1

SHIM

0.1

1шт.

20

3216563R1

DISC

SHIM, 0.2 mm

1шт.

20

3216562R1

SHIM

0.3 mm

1шт.

20

3216551R1

SHIM, 0.6 mm

1шт.

21

313814R91

ROLLER BEARING,36.51mm ID x 28.57mm W

cone, pinion front

1шт.

21

197608R1

BEARING ASSY,1.375" ID x 3" OD x 1.1562"

BEARING CUP, Pinion front

1шт.

22

1502273C91

GEAR, BEVEL

GEAR matched set, 11/35 teeth

1шт.

23

115314

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

Выбрано товаров: 26
