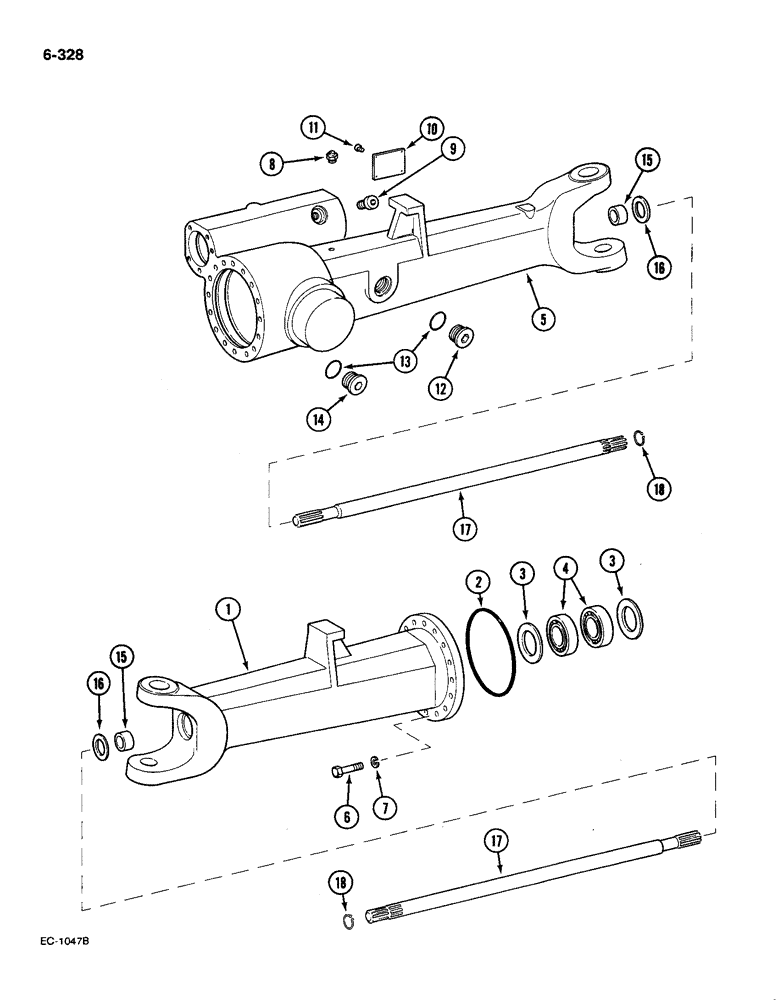

Запчасти Case IH 585 (6-328) - AXLE HOUSING, FRONT, 4WD P.I.N. 18001 AND AFTER, FRONT AXLES APL-325 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
NSS
NOT SOLD SEPARAT
HOUSING front axle, Includes: Ref. 1-18
1шт.
1
81407C1
CASE
HOUSING axle, part 11
1шт.
2
81279C1
O-RING,3mm Thk x 156mm ID, 80 Duro
156 x 3 mm
1шт.
3
81269C1
SHIM
DISK 0.50 mm
1шт.
3
81257C1
DISC
DISK 0.60 mm
1шт.
3
81258C1
DISC
DISK 0.70 mm
1шт.
3
81270C1
DISC
DISK 0.75 mm
1шт.
3
81259C1
DISC
DISK 0.80 mm
1шт.
3
81271C1
DISC
DISK 0.85 mm
1шт.
3
81260C1
SHIM
DISK 0.90 mm
1шт.
3
81272C1
DISC
DISK 0.95 mm
1шт.
3
81261C1
SHIM
DISK 1.00 mm
1шт.
3
81273C1
SHIM
DISK 1.05 mm
1шт.
3
81262C1
SHIM
DISK 1.10 mm
1шт.
3
81274C1
DISC
DISK 1.15 mm
1шт.
3
81263C1
DISC
DISK 1.20 mm
1шт.
3
81275C1
DISC
DISK 1.25 mm
1шт.
3
81264C1
DISC
DISK 1.30 mm
1шт.
3
81276C1
DISC
DISK 1.35 mm
1шт.
3
81265C1
DISC
DISK 1.40 mm
1шт.
3
81266C1
DISC
DISK 1.50 mm
1шт.
3
81267C1
DISC
DISK 1.60 mm
1шт.
3
81268C1
DISC
DISK 1.80 mm
1шт.
4
81277C1
RACE
BEARING outer race
2шт.
4
81278C1
RACE
BEARING inner race
2шт.
4
663556R91
TAPERED BEARING
roller (Replaces 81277C1 and 81278C1)
2шт.
5
81406C1
HOUSING ASSY.
HOUSING axle, part 1
1шт.
6
931638R1
BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd
hex, M14 x 45 mm, class 10.9
16шт.
7
3222147R1
DISC
WASHER flat, 14 mm
16шт.
8
898138H1
BREATHER
VALVE breather
1шт.
9
933679R1
PLUG,Hex Soc, M10 x 1, Pipe
hex socket, M10
1шт.
10
81282C1
NAMEPLATE
PLATE name
1шт.
11
932658R1
GROOVED PIN,Rd Hd, M3 x 5
PIN groove drive stud, 3 x 5 mm
4шт.
12
905476R1
PLUG
hex socket, M36, grade 5.8
1шт.
13
81284C1
O-RING,2.2mm Thk x 33mm ID
32 x 2 mm
2шт.
14
81283C1
PLUG
screw
1шт.
15
81410C2
BUSHING,37mm ID x 41mm OD x 26mm L
2шт.
16
81411C2
SEAL
shaft
2шт.
17
81408C1
SHAFT
plug-in, Serial Range: -58039
2шт.
17
1968451C1
SHAFT
plug-in, Start Serial: 58039
2шт.
18
81409C1
RING, SNAP
RING retaining
2шт.
81405C1
TAPE
protection (not illustrated)
1шт.
Выбрано товаров: 42
