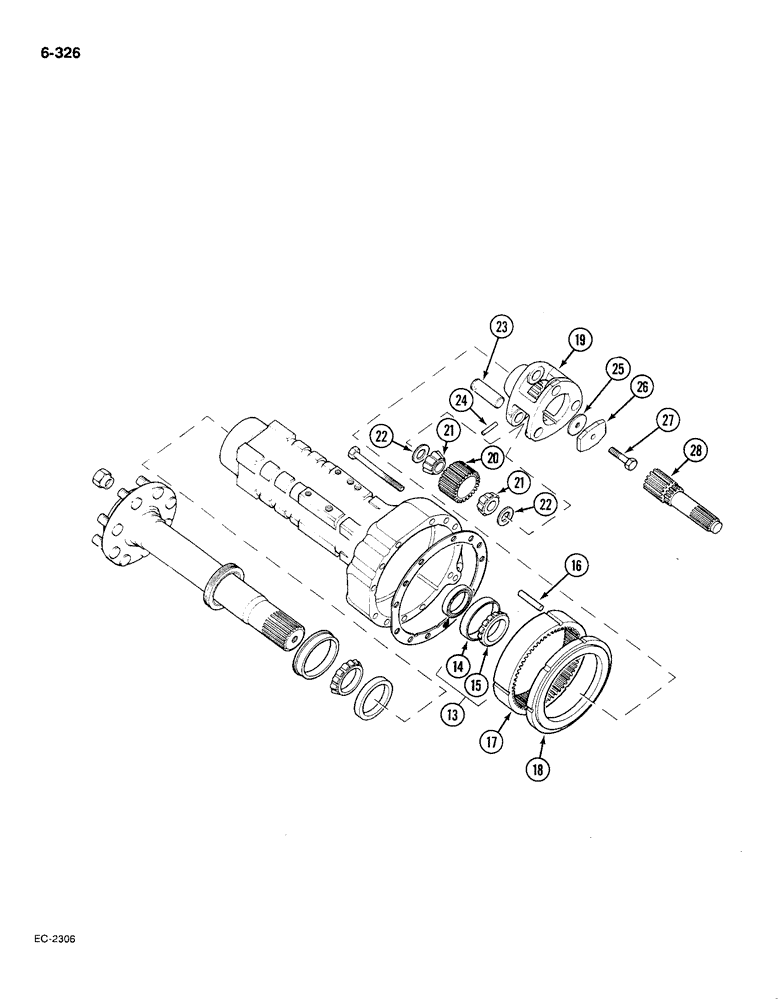

Запчасти Case IH 585 (6-326) - REAR AXLE, CARRIER AND CONNECTIONS, CONTD (06) - POWER TRAIN

14

NSS

NOT SOLD SEPARAT

BEARING cup, rear axle, inner, tractors with bar type rear axle order P/N 972467R91, tractors with flange type rear axle order P/N 298188R91

2шт.

15

NSS

NOT SOLD SEPARAT

BEARING cone, rear axle, outer, tractors with bar type rear axle order P/N 972467R91, tractors with flange type rear axle order P/N 298188R91

2шт.

16

529686R1

DOWEL

PIN dowel, tractors with bar type rear axle, all wheel drive tractors, Serial Range: -18001

6шт.

16

529685R1

DOWEL

PIN dowel, 3/8 x 2-1/4 inch, tractors with flange type rear axle

6шт.

17

535317R1

GEAR, RING

GEAR ring, 66 teeth, tractors with bar type rear axle, all wheel drive tractors, Serial Range: -18001

2шт.

17

535316R1

GEAR, RING

GEAR ring, 66 teeth, tractors with flange type rear axle

2шт.

18

114620C1

RING,260mm OD

brake outer disc

2шт.

19

114613C1

CARRIER

planet gear, tractors with bar type rear axle, all wheel drive tractors, Serial Range: -18001

2шт.

19

404339R3

PINION CARRIER

CARRIER planet gear, tractors with flange type rear axle

2шт.

20

66128C2

PINION

GEAR planet, 25 teeth, tractors with bar type rear axle, all wheel drive tractors, Serial Range: -18001

6шт.

20

399784R2

PINION

GEAR planet, 25 teeth, tractors with flange type rear axle

6шт.

21

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING cone inner, planet gear, tractors with bar type rear axle, all wheel drive tractors, Serial Range: -18001

12шт.

21

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

inner, planet gear, tractors with flange type rear axle

12шт.

22

65421C2

SHIM KIT

PACKAGE service, planet gear shim, includes next three shims, tractors with bar type rear axle, all wheel drive tractors, Serial Range: -18001

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.042 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.049 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.056 inch

3шт.

22

65420C1

SHIM KIT

KIT service, planet gear shim, includes next three shims, tractors with flange type rear axle

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.042 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.049 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.056 inch

3шт.

23

399812R1

SHAFT

PIN planet, tractors with flange type rear axle, all wheel drive tractors, Serial Range: -18001

6шт.

23

399788R1

PIN

planet shaft, tractors with flange type rear axle

6шт.

24

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

25

65422C1

SHIM KIT

KIT rear axle retainer, includes next three shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.007 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.012 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.0299 inch

3шт.

26

399748R1

SPACER

planet carrier

2шт.

27

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

hex, 5/8 NF x 1-1/2 inch

2шт.

28

404342R1

SHAFT

planetary drive, left, tractors with bar type rear axle, all wheel drive tractors, Serial Range: -18001

1шт.

28

404343R1

SHAFT

planetary drive, right, tractors with bar type rear axle, all wheel drive tractors, Serial Range: -18001

1шт.

28

404337R1

SHAFT

planetary drive, left, tractors with flange type rear axle

1шт.

28

404338R1

SHAFT

planetary drive, right, tractors with flange type rear axle

1шт.
