Запчасти Case IH 585 (6-324) - REAR AXLE, CARRIER AND CONNECTIONS (06) - POWER TRAIN

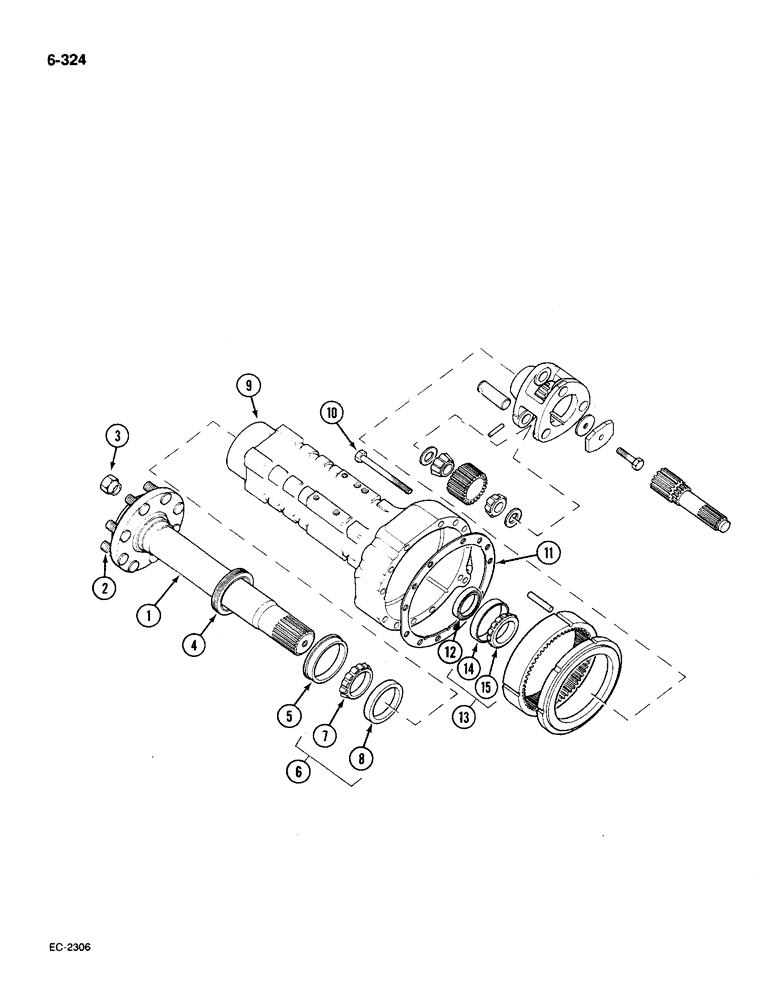

Схема запчастей Case IH 585 - (6-324) - REAR AXLE, CARRIER AND CONNECTIONS (06) - POWER TRAIN
9
11
7
6
14
13
1
2
8
3
15
4
10
5
12

Артикул

Название

Примечание

Количество

1

404340R21

HALF SHAFT

AXLE assembly, rear, tractors with flange type rear axle, all wheel drive tractors, Serial Range: -18001

2шт.

1

527353R11

AXLE, REAR

AXLE assembly, rear, tractors with bar type rear axle, Includes: Ref. 2

2шт.

Ref #1 - 1349300C1 New Axle

1шт.

2

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT rear wheel

16шт.

Ref #2 - 1349235C1 New Bolts

1шт.

3

3047575R3

NUT,Wheel, 5/8"-18

rear wheel, mounting

16шт.

Ref #3 - 1349236C1 New Nut

1шт.

4

105471C1

OIL SEAL

SEAL oil, rear axle outer, tractors with bar type rear axle, all wheel drive tractors, Serial Range: -18001

2шт.

4

105470C1

OIL SEAL

SEAL oil, rear axle outer, tractors with flange type rear axle

2шт.

5

399754R1

SLEEVE

wear, tractors with flange type rear axle

2шт.

5

399796R1

SLEEVE

wear, tractors with bar type rear axle, all wheel drive tractors, Serial Range: -18001

2шт.

6

ST2130

BEARING ASSY,3.0625" ID x 4.7812" OD x 0.9688"

BEARING rear axle outer, tractors with bar type rear axle

2шт.

6

384695R91

BEARING ASSY

, Serial Range: (Optional-ST2130)

2шт.

6

384734R91

BEARING ASSY,4.7812" ID x 3.0625" OD x 0.9688, 0.6875"

BEARING roller (Optional to ST2130)

2шт.

6

ST2000A

TAPERED BEARING

BEARING roller, rear and axle outer, tractors with flange type rear axle

2шт.

6

102160H

BEARING ASSY

BEARING roller, Serial Range: (Optional-ST2000A)

2шт.

6

399756R91

BEARING ASSY,2.6876" ID x 4.3307" OD x 0.8661, 0.7411"

BEARING (Optional to ST2000A)

2шт.

7

NSS

NOT SOLD SEPARAT

BEARING cone, axle, outer, for tractors with bar type rear axle order P/N ST2130, for tractors with flange type rear axle order P/N ST2000A

2шт.

8

NSS

NOT SOLD SEPARAT

BEARING cup, rear axle, outer, for tractors with bar type rear axle order P/N ST2130, for tractors with flange type rear axle order P/N ST2000A

2шт.

9

94225C1

AXLE CARRIER

CARRIER rear axle, left, tractors with flange type rear axle

1шт.

9

93941C1

AXLE CARRIER

CARRIER rear axle, left, tractors with bar type rear axle

1шт.

9

94226C1

AXLE CARRIER

CARRIER rear axle, right, tractors with flange type rear axle

1шт.

9

93942C1

AXLE CARRIER

CARRIER rear axle, right, tractors with bar type rear axle

1шт.

10

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

hex, 5/8 NC x 4-1/4 inch grade 8, tractors with flange type rear axle

22шт.

10

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, grade 8, Tractors with bar type rear axle

20шт.

10

25926R1

BOLT,Hex, 5/8" - 11 x 6 1/4", Gr 8

hex, 5/8 NC x 6-1/4 inch, tractors with bar type rear axle

2шт.

11

399762R3

GASKET

rear axle carrier

2шт.

12

399798R91

OIL SEAL

SEAL rear axle inner oil, tractors with bar type rear axle, all wheel drive tractors, Serial Range: -18001

2шт.

12

380200R92

OIL SEAL

oil, rear axle inner, tractors with flange type rear axle

2шт.

12

530094R91

SEAL

oil, rear axle inner, Serial Range: (Optional-380200R92)

2шт.

13

972467R91

BEARING ASSY

rear axle inner, tractors with bar type rear axle

2шт.

13

399799R91

BEARING ASSY,2.75" ID x 4.4375" OD x 1, 0.75"

BEARING (Optional to 972467R91)

2шт.

13

1500912C91

TAPERED BEARING,3.12" ID x 4.4375" OD x 0.75"

BEARING roller (Optional to 972467R91)

2шт.

13

298188R91

BEARING ASSY

roller, rear axle inner, tractors with flange type rear axle

2шт.

13

298189R91

BEARING ASSY,2.5" ID x 4.3307" OD x 0.866"

roller (Optional to 298188R91)

2шт.

13

1500907C91

ROLLER BEARING

roller (Optional to 298188R91), Includes: Ref. 14 and 15 on next Figure

2шт.

Выбрано товаров: 36
