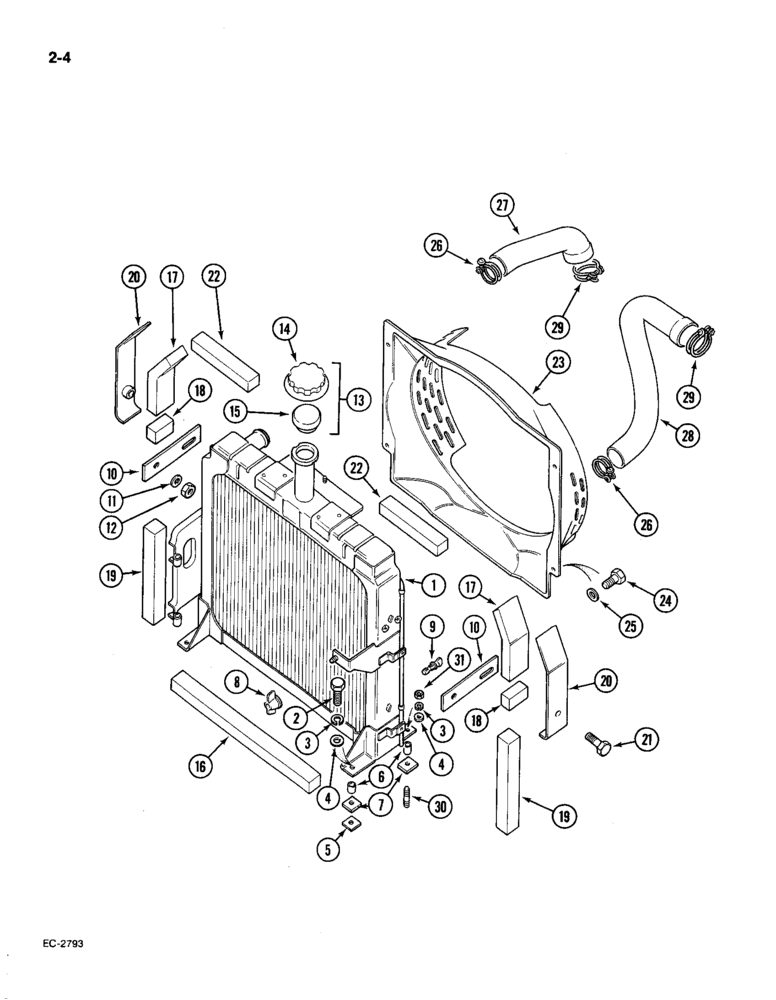

Запчасти Case IH 585 (2-04) - RADIATOR AND CONNECTIONS, PRIOR TO P.I.N. 18001 (02) - ENGINE

1

1536373C1

RADIATOR

new, with new bolt pattern (Replaces 84524C93)

1шт.

2

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex, 3/8" NC x 1-1/4", grade 5, ZND

2шт.

3

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

4шт.

5

84525C1

SPACER

2шт.

6

99427C1

SPACER

BUSHING

4шт.

7

47240D

PAD

radiator

4шт.

8

142745

NUT, WING

NUT wing, 5/16 inch NC

1шт.

9

3113083R1

PLUG, DRAIN

VALVE drain, 1/4 inch

1шт.

10

94313C1

STRAP

radiator mounting

2шт.

11

120394

WASHER,3/8", SAE

WASHER flat, 13/32 x 13/16 x 3/64 inch

2шт.

12

9411655

LOCK NUT,3/8"-16, GB

NUT hex lock, 3/8 inch NC, grade 5

2шт.

13

1500626C91

PLUG

CAP radiator, complete, Includes: Ref. 14 and 15

1шт.

14

532674R1

PLUG

COVER radiator cap

1шт.

15

3118639R1

CAP

radiator

1шт.

16

537162R1

FILLING STRIP

SEAL lower radiator

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL shield, long, 5.6 inch (142 mm) (cut from 73217C2)

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL shield, short, 2.1 inch (53 mm) (cut from 73217C2)

2шт.

19

NSS

NOT SOLD SEPARAT

SEAL foam, radiator side, 14 inch (356 mm) (cut from 73217C2)

2шт.

20

98885C1

GUARD

SHIELD radiator seal

2шт.

21

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

22

NSS

NOT SOLD SEPARAT

SEAL radiator top, 8 inch (203 mm) (cut from 73217C2)

2шт.

23

527475R3

HOUSING

fan

1шт.

24

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

25

95-11028

WASHER,1/4"

flat, 0.281 x 0.625 x 0.051 inch

4шт.

26

39149H

HOSE CLAMP

CLAMP hose, No. 64

2шт.

26

705935R91

HOSE CLAMP

CLAMP hose, Serial Range: (optional-39149H)

2шт.

27

402207R1

LARGE HOSE,50.80 mm ID x 179.83 mm, SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Inlet 50.80 mm ID x 179.83 mm, SAE 20R2

1шт.

27

402207R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

28

402205R1

LARGE HOSE,50.80 mm ID x 213.90 mm, SAE 100R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A OR SAE 20R4 CLASS D1, Outlet 50.80 mm ID x 213.90 mm, SAE 100R2

1шт.

28

402205R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

29

39205H

CLAMP

hose, No. 80, type C

2шт.

29

706082R91

CLAMP

hose, Serial Range: (optional-39205H)

2шт.

30

99688C1

STUD

3/8 inch NC x 47 mm

2шт.

31

120377

NUT,3/8" - 16, Gr 5

2шт.

31

73217C2

FILLING STRIP

SEAL foam, bulk length, 4 foot roll, Includes: Ref. 17-19 and 22

1шт.
