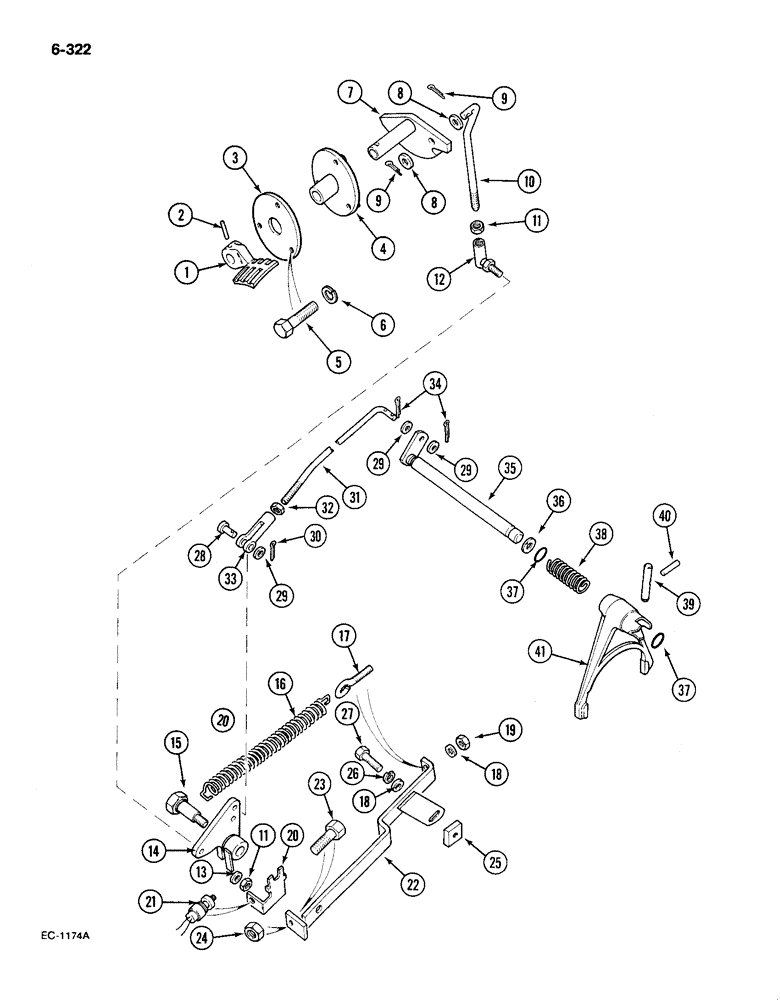

Запчасти Case IH 585 (6-322) - DIFFERENTIAL LOCK, WITH CAB (06) - POWER TRAIN

1

3399270R1

PEDAL

differential lock

1шт.

2

30797R1

PIN,M6 x 36, Coiled

coiled spring, 6 x 36 mm

1шт.

3

3399266R1

GASKET

1шт.

4

98030C1

SUPPORT

differential lock pedal

1шт.

5

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, M6 x 20 mm, grade 8.8

3шт.

6

933833R1

LOCK WASHER,M6

WASHER lock, M6

3шт.

7

1500056C1

CAM

differential lock

1шт.

8

933348R1

WASHER,M10 x 20 x 2

flat, 10.8 x 21 x 2 mm

2шт.

9

934792R1

COTTER PIN,M3.2 x 20

PIN cotter, 3.2 x 20 mm

2шт.

10

1500059C2

ROD

vertical link, differential lock

1шт.

11

30284R1

NUT,M10, Cl 10

hex, M10, class 10

2шт.

12

3129345R1

BALL JOINT

JOINT ball, M10

1шт.

13

933965R1

LOCK WASHER,M10

1шт.

14

1500060C2

LEVER

BELLCRANK differential lock

1шт.

15

1500071C1

BOLT,Pivot, Hex, 9/16" - 12 x 57.50mm

- Bellcrank pivot

1шт.

16

3121849R2

SPRING

return, differential lock pedal

1шт.

17

1502164C1

EYEBOLT,3/8" - 16 x 66mm

1шт.

18

120394

WASHER,3/8", SAE

WASHER flat, 13/32 x 13/16 x 3/64 inch

2шт.

19

120377

NUT,3/8" - 16, Gr 5

1шт.

20

1500079C1

SUPPORT

BRACKET switch mounting

1шт.

21

3147137R1

SWITCH

SWITCH differential lock (see Figure 4-114)

1шт.

22

1500072C2

BRACKET

lock return spring differential

1шт.

Ref #22 - 1537212C1 New Bracket

1шт.

23

1500078C1

BOLT,Hex, M6 x 40mm, Cl 8.8

1шт.

24

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

1шт.

25

1330751C1

SPACER

differential lock

1шт.

26

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

27

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

1шт.

28

NLS

NO LONGER SERVICED

PIN clevis, 3/8 x 1-1/16 inch

1шт.

29

Q1597

WASHER

plain, 0.406 x 0.734 x 0.056 inch

3шт.

30

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

31

1500075C91

ROD ASSY.

ROD complete, differential lock pedal, Includes: Ref. 32 and 33

1шт.

32

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

33

753984R1

CLEVIS,3/8" - 16

rod end

1шт.

34

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

35

87927C1

SHAFT

differential lock

1шт.

36

Q3501

WASHER

plain, 0.781 x 1.25 x 0.054 inch

1шт.

37

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 inch, class 5

2шт.

38

527878R1

SPRING

actuating, differential lock fork

1шт.

39

1500388C2

PIN

cam actuating

1шт.

40

365704R1

PIN,1/8" x 5/8", Coiled

1шт.

41

1500386C1

FORK

differential lock shaft

1шт.
