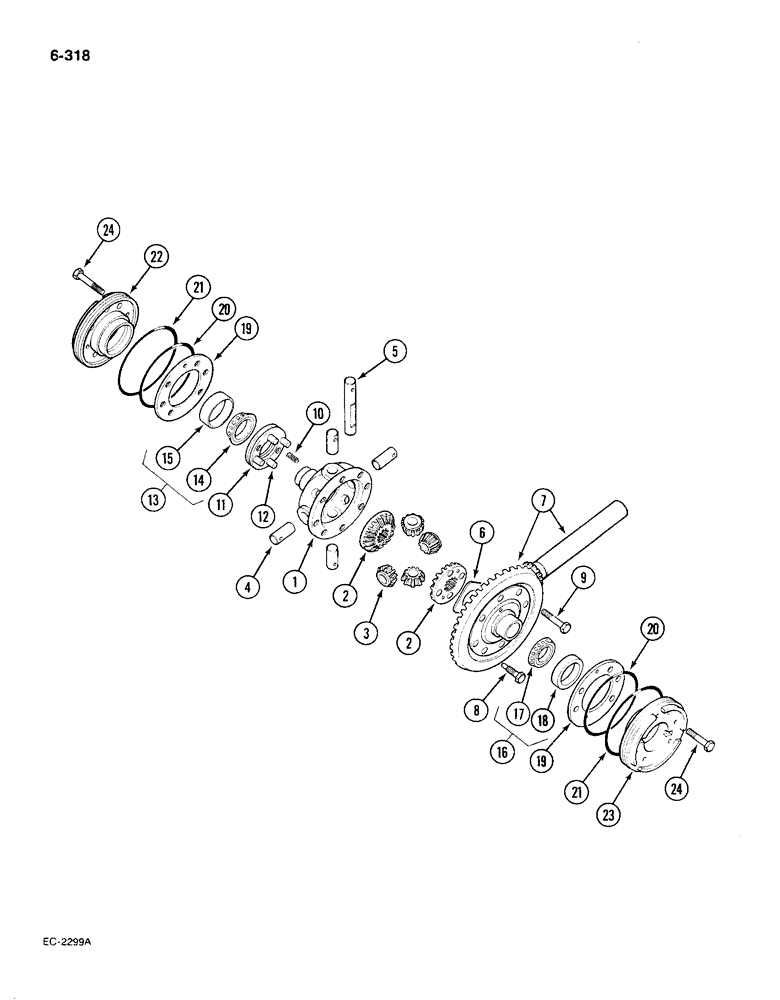

Запчасти Case IH 585 (6-318) - DIFFERENTIAL AND CONNECTIONS (06) - POWER TRAIN

1

399763R1

PINION CARRIER

CARRIER differential

1шт.

2

404336R1

PINION

GEAR bevel, differential, 20 teeth

2шт.

3

399776R1

PINION

GEAR differential pinion, 10 teeth

2шт.

4

399804R1

PIN

differential pinion

4шт.

5

399775R1

SHAFT

differential pinion, tractors with flange type rear axle

1шт.

6

399778R1

THRUST WASHER

thrust, differential bevel gear

1шт.

7

94252C1

GEAR, BEVEL

SET shaft, matched, 11/52 teeth, Start Serial: 18001

1шт.

7

3129934R1

SHAFT

SET bevel gear matched, 11/52 teeth, 4 wheel drive tractors, Serial Range: -18001

1шт.

7

65254C1

SHAFT

SET bevel gear matched, 12/53 teeth, Serial Range: -18001

1шт.

8

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT dowel, hex, 1/2 NC x 2-1/8 inch, tractors with flange type rear axle

1шт.

9

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

hex, 1/2 NC x 1-1/2 inch, grade 8, tractors with flange type rear axle

7шт.

10

400867R1

SPRING

differential lock

2шт.

11

399764R11

LOCKING RING

RING differential lock, Includes: Ref. 12

1шт.

12

399765R1

PIN

coupling

4шт.

13

105504H

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.2 mm

roller, right

1шт.

13

402353R91

BEARING ASSY,2.25" ID x 3.815" OD x 0.8268"

roller (Optional to 105504H)

1шт.

13

1500909C91

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.1 mm

roller (Optional to 105504H), Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

BEARING cone

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING cup

1шт.

16

105502H

TAPERED BEARING,2.25" ID x 3.8437" OD x 0.9688"

roller, left

1шт.

16

399766R91

ROLLER BEARING

BEARING roller, Serial Range: (Optional-105502H)

1шт.

16

1502182C91

TAPERED BEARING,57.163 mm ID x 97.655 mm OD x 24.808 mm

roller (Optional to 105502H), Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING cone

1шт.

18

NSS

NOT SOLD SEPARAT

BEARING cup

1шт.

19

65419C1

BEARING CARRIER

KIT shims, differential bearing carrier, includes the next four shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.003 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.007 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.012 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.030 inch

3шт.

20

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 ID x 7-7/8 inch

2шт.

21

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 ID x 8-1/2 inch, class 6

2шт.

22

399770R2

BEARING CARRIER

CARRIER differential bearing, right

1шт.

23

399769R2

BEARING CARRIER

CARRIER differential bearing, left

1шт.

24

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

hex, 1/2 NC x 1-1/2 inch, grade 8

8шт.
