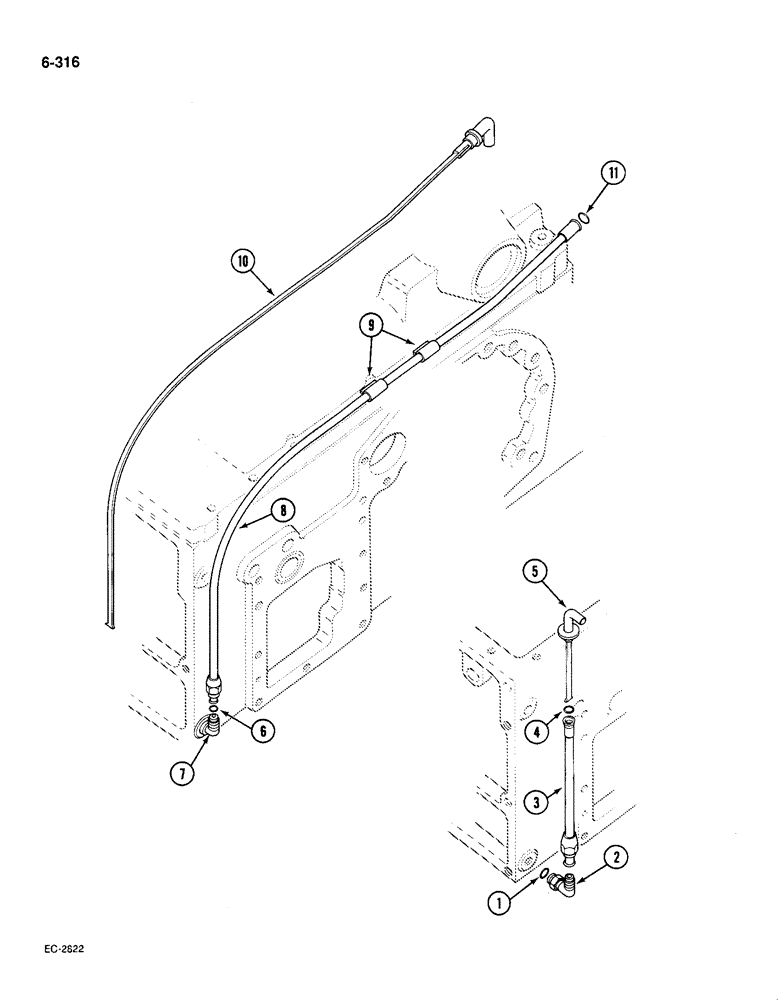

Запчасти Case IH 585 (6-316) - REAR FRAME OIL LEVEL GAUGE, TRACTORS WITHOUT CAB (06) - POWER TRAIN

1

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

2

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 degree, 5/16 inch OD tube

1шт.

3

528059R1

TUBE

rear frame oil level gauge

1шт.

4

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 inch, class 5

1шт.

5

528054R2

DIPSTICK

GAUGE rear frame oil level

1шт.

6

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6, tractors with cab

1шт.

7

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 degree, 5/16 inch OD tube, tractors with cab

1шт.

8

3129618R1

TUBE

rear frame oil level gauge, tractors with cab

1шт.

9

3129619R1

CLAMP

tube support, tractors with cab

2шт.

10

3129620R1

DIPSTICK

GAUGE rear frame oil level, tractors with cab

1шт.

11

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 inch, class 5, tractors with cab

1шт.
