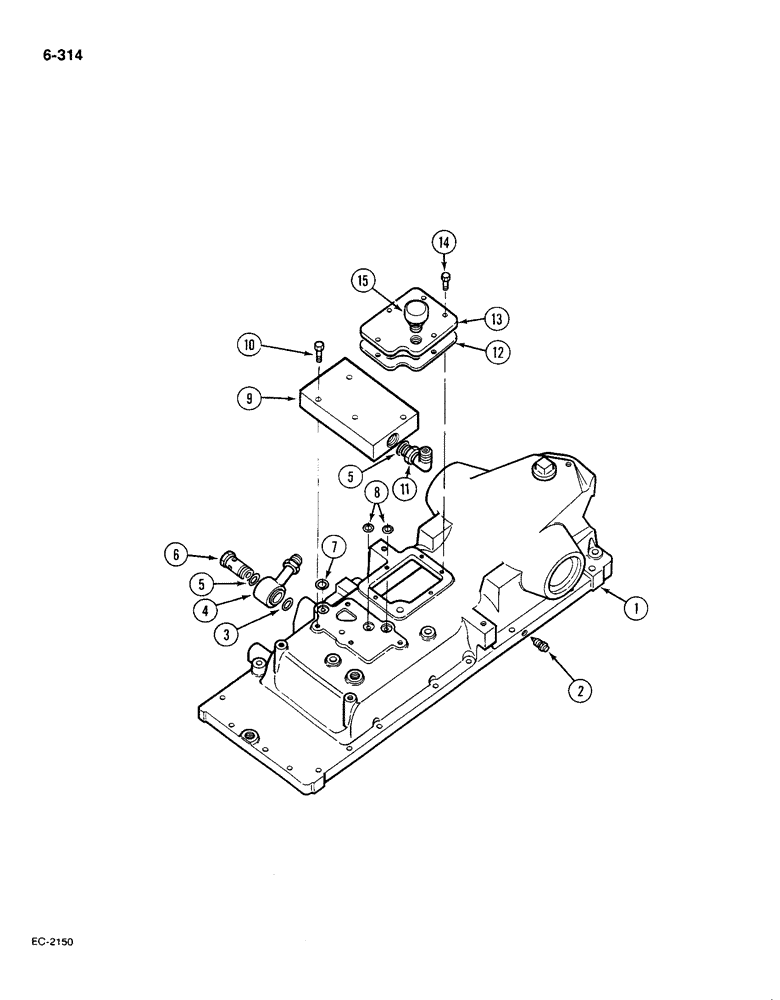

Запчасти Case IH 585 (6-314) - REAR FRAME TOP COVER CONNECTIONS (06) - POWER TRAIN

1

529381R96

COVER ASSY

COVER rear frame (see Figure 6-312)

1шт.

2

82301R1

BLEEDER,3/8" - 24 x 117mm

brake bleed

2шт.

2

3068777R1

SCREW

brake bleed, Serial Range: (Optional-82301R1)

2шт.

3

384376R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

15/16 x 1-1/16 inch, class 6

1шт.

4

66762C1

PIPE,0.625" OD, 3.5" Length

TUBE inlet union

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD tube, class 6

2шт.

6

66766C1

PLUG

inlet union

1шт.

7

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 x 7/8 inch, class 6

1шт.

8

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 inch, class 5

2шт.

9

529382R1

MANIFOLD

auxiliary valve

1шт.

10

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

11

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90 degree, adjustable, 5/8 inch OD tube

1шт.

12

399996R1

GASKET

linkage access cover

1шт.

13

65969C1

COVER

linkage access, Serial Range: -18001

1шт.

13

99969C1

COVER

linkage access, Start Serial: 18001

1шт.

14

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

15

65970C2

BREATHER ASSY.

BREATHER hydraulic unit housing, 3/8 inch NPT, use with 65969C1

1шт.

15

1971726C1

BREATHER,1/4" - 18

1/4 inch NPT, use with 99969C1

1шт.
