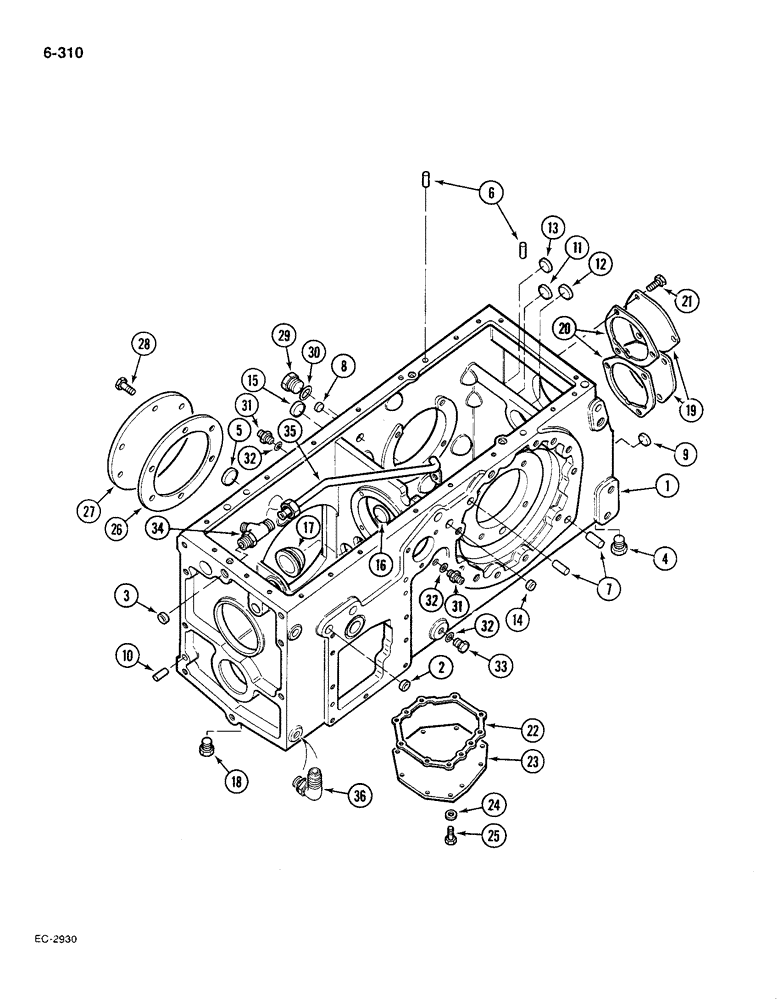

Запчасти Case IH 585 (6-310) - REAR FRAME PLUGS AND CONNECTIONS (06) - POWER TRAIN

1

82793C91

FRAME

rear, Start Serial: 18001

1шт.

1

1289949C91

FRAME ASSY

FRAME rear, Includes: Ref. 2-18, Serial Range: -18001

1шт.

Ref #1 - 1537322C1 New Frame Rear Assy.

1шт.

2

318300R1

PLUG,Cup, 1"

cup, 1 inch, with forward and reverse

1шт.

3

327412R1

PLUG,Cup, 13/16"

cup, 13/16 inch

1шт.

4

3113103R1

PLUG

automotive hex, 3/4 inch NPTF

1шт.

4

444836

PLUG,Hex Hd, 3/4"-14

automotive hex, 3/4 inch NPTF (Optional to 3113103R1)

1шт.

Ref #4 & #18 - (Drain Plug)

1шт.

5

349373R1

PLUG

cup, 1-1/4 inch

1шт.

6

19904R1

DOWEL,1/2" x 1"

PIN dowel, 1/2 x 1 inch

2шт.

7

19875R1

DOWEL,5/8" x 1 1/2"

PIN 5/8 x 1-1/2 inch

4шт.

8

386194R1

PLUG,Cup, 3/4"

cup, 3/4 inch (without diff lock)

1шт.

9

512870R1

PLUG,Cup, 2 1/4"

cup, 2-1/4 inch (without IPTO)

1шт.

10

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1-1/4 inch

1шт.

11

23828R1

PLUG,Cup, 2 1/2"

cup, 2-1/2 inch (without IPTO)

1шт.

12

151162R1

PLUG,Cup, 1 3/8"

cup, 1-3/8 inch (without IPTO)

1шт.

13

3142063R1

PLUG

cup, 52 mm (without IPTO)

1шт.

14

151162R1

PLUG,Cup, 1 3/8"

cup, 1-3/8 inch, Start Serial: 18001

1шт.

14

386194R1

PLUG,Cup, 3/4"

cup, 3/4 inch, Serial Range: -18001

1шт.

15

41-1024

PLUG,Cup, 1 1/2"

cup, 1-1/2 inch

1шт.

16

28673R1

PLUG,Cup, 2 1/8"

cup, 2-1/8 inch, Start Serial: 18001

1шт.

16

70129R1

PLUG,Cup, 2"

cup, 2 inch, Serial Range: -18001

1шт.

17

527748R1

PLUG

oil reservoir, Serial Range: -18001

1шт.

18

3113103R1

PLUG

automotive hex, 3/4 inch NPTF, Serial Range: -18001

1шт.

18

444836

PLUG,Hex Hd, 3/4"-14

automotive hex, 3/4 inch NPTF (Optional to 3113103R1)

1шт.

19

399842R1

COVER

rear frame IPTO (without IPTO)

2шт.

20

399843R3

GASKET

rear frame IPTO flange

2шт.

21

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

22

82632C2

GASKET

transfer gear box, Start Serial: 18001

1шт.

23

94293C1

COVER

CAWD opening, Start Serial: 18001

1шт.

24

26273R1

WASHER

flat 0.531 x 1.062 x 0.134 inch

9шт.

25

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

9шт.

26

405739R2

GASKET

side PTO cover, Serial Range: -18001

1шт.

27

405738R1

COVER

side PTO, Serial Range: -18001

1шт.

28

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

, Serial Range: -18001

7шт.

29

9410363

PLUG

O-ring boss, 1 inch OD tube (auxiliary hydraulic tube)

1шт.

30

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 inch OD tube, class 6

1шт.

31

3129671R1

FITTING

ADAPTER brake pipe

2шт.

32

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

3шт.

33

9410356

PLUG

1/4 inch (without IPTO)

1шт.

34

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

90 degree adjustable, 1/2 inch OD tube

1шт.

35

86337C2

PIPE

TUBE return, transfer pump, Start Serial: 18001

1шт.

35

68393C1

TUBE ASSY.

TUBE return, transfer pump, Serial Range: -18001

1шт.

36

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 degree adjustable, 3/8 inch OD tube

1шт.
