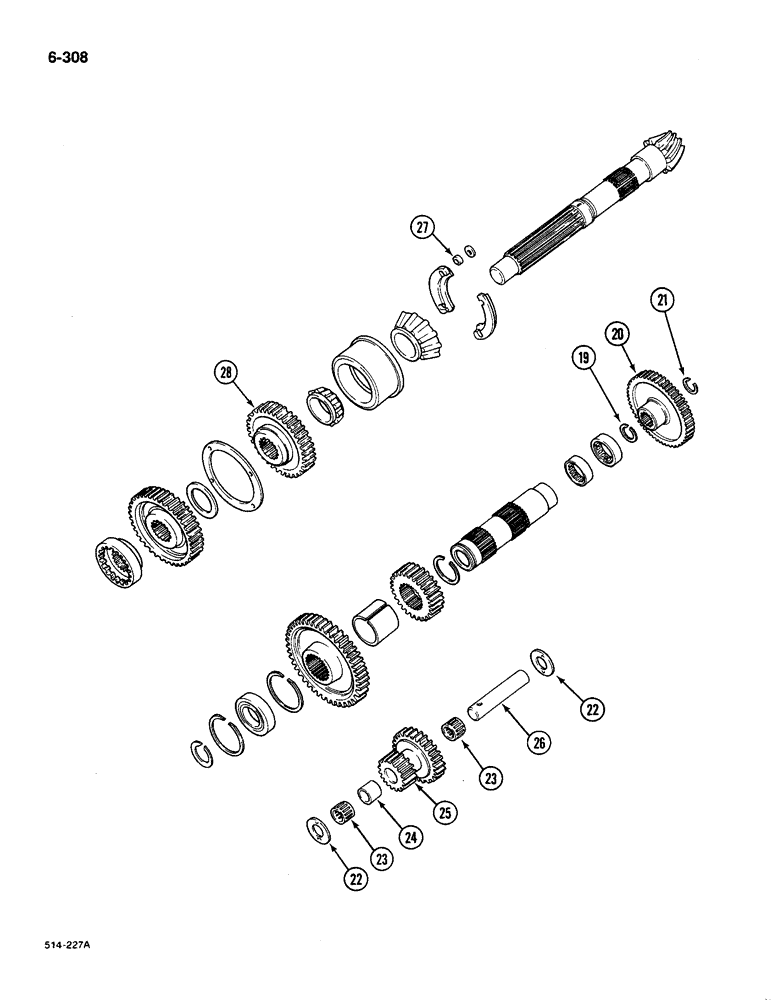

Запчасти Case IH 585 (6-308) - RANGE TRANSMISSION, IN REAR FRAME, 4 WHEEL DRIVE TRACTORS, CONTD (06) - POWER TRAIN

19

399837R1

SNAP RING,#118, 1.121", Ext

RING retaining, external, 1.121 inch, pump drive gear

1шт.

20

94404C1

PINION

GEAR pump drive, 55 teeth

1шт.

21

533266R1

RING, SNAP

RING retaining, IPTO front driven shaft, rear

1шт.

22

3112846R1

THRUST WASHER

WASHER thrust, idler bearing

2шт.

23

3113041R91

ROLLER CAGE BEARING

needle, reverse idler gear (For use with gear 70298C1)

1шт.

23

3112844R91

BEARING, NEEDLE

BEARING needle (Optional to 3113041R91) (For use with gear 70298C1)

1шт.

23

A50877

BEARING needle, reverse idler gear (For use with gear 1975490C1)

1шт.

23

3069773R91

NEEDLE BEARING

BEARING needle (Optional to A58077) (For use with gear 1975490C1)

1шт.

24

3112845R1

SPACER

idler bearing

1шт.

25

1975490C1

GEAR

reverse idler, 20 and 24 teeth (Replaces 70298C1)

1шт.

25

3129936R1

GEAR

4 wheel drive take off, 21 teeth, Serial Range: -18001

1шт.

26

399838R3

SHAFT

reverse idler

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

27

94323C1

BUSHING

bearing retainer

1шт.

28

82354C1

GEAR

drive, 38 teeth

1шт.

65423C1

SHIM KIT

PACKAGE shims, main shaft bearing cage, includes shims

1шт.

NSS

NOT SOLD SEPARAT

SHIM main shaft bearing retainer, 0.004 inch (0.102 mm)

1шт.

NSS

NOT SOLD SEPARAT

SHIM main shaft bearing retainer, 0.007 inch (0.179 mm)

1шт.
