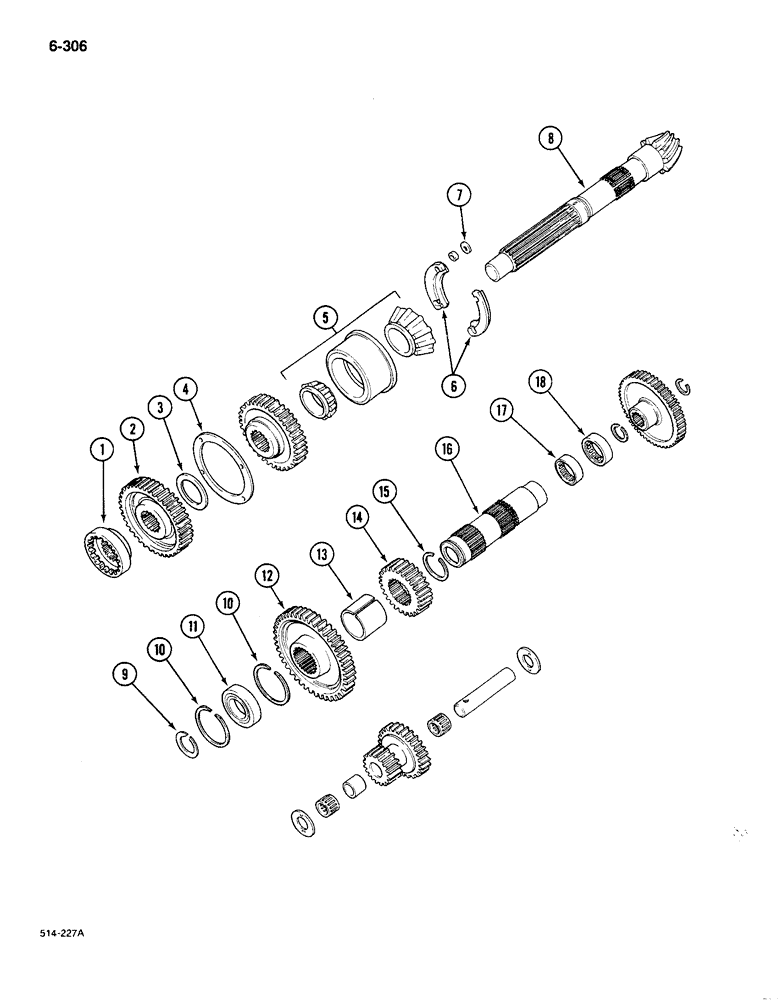

Запчасти Case IH 585 (6-306) - RANGE TRANSMISSION, IN REAR FRAME, 4 WHEEL DRIVE TRACTORS (06) - POWER TRAIN

1

1277137C1

COLLAR ASSY.

COLLAR high speed shift

1шт.

2

1286470C1

GEAR

sliding, forward/reverse, 42 teeth

1шт.

3

65788C1

WASHER

thrust, bevel pinion shaft

1шт.

4

65423C1

SHIM KIT

KIT shim, main shaft bearing cage

1шт.

5

1289706C91

BEARING,52.4mm ID x 116.84mm OD x 66.67mm W

main shaft, Start Serial: 18001

1шт.

5

65783C92

BEARING ASSY,53.9815 mm ID x 116.84 mm OD x 66.675 mm

main shaft, Serial Range: -18001

1шт.

6

83299C1

RETAINER

main shaft bearing, Start Serial: 18001

2шт.

6

65784C2

RETAINER

main shaft bearing, Serial Range: -18001

1шт.

NLS

NO LONGER SERVICED

4шт.

7

65787C1

WASHER

bearing, retainer bolt, Start Serial: 18001

3шт.

7

65787C1

WASHER

bearing, retainer bolt, Serial Range: -18001

4шт.

8

NSS

NOT SOLD SEPARAT

SHAFT pinion (Order bevel gear set)

1шт.

9

A27089

SNAP RING,2.36mm Thk, Ext

RING retaining, main shaft bearing

1шт.

10

399832R1

RING, SNAP

RING retaining, countershaft bearing

2шт.

11

G10418

BEARING, BALL

BEARING ball, countershaft front

1шт.

11

69843C91

BALL BEARING,49.994 mm ID x 79.994 mm OD x 15.94 mm

BEARING ball (Optional to G10418)

1шт.

11

71069C91

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

BEARING ball (Optional to G10418)

1шт.

11

360635R91

BEARING, BALL

BEARING ball, Serial Range: (Optional-G10418)

1шт.

11

528101R91

BEARING, BALL

BEARING ball, Serial Range: (Optional-G10418)

1шт.

11

3047867R91

BEARING, BALL

BEARING ball, Serial Range: (Optional-G10418)

1шт.

11

3069304R91

BALL BEARING

BEARING ball, Serial Range: (Optional-G10418)

1шт.

12

404097R1

GEAR

constant mesh, 46 teeth

1шт.

13

399835R1

BUSHING

countershaft gears

1шт.

14

103150C1

PINION

GEAR driving, lo range, 24 teeth

1шт.

15

398264R1

SNAP RING,#215, 2.026", Ext

RING retaining, external, 2.026 inch

1шт.

16

94403C1

SHAFT

counter, range transmission, Start Serial: 18001

1шт.

16

404096R1

SHAFT

counter, range transmission, Serial Range: -18001

1шт.

17

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING needle, countershaft, Serial Range: -18001

1шт.

17

94376C91

NEEDLE BEARING,47.625 mm ID x 57.162 mm OD x 25.4 mm

needle, Start Serial: 18001

1шт.

18

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING needle, pump drive gear

1шт.

18

527747R91

BEARING, NEEDLE

BEARING needle, Serial Range: (Optional-362251R91)

1шт.
