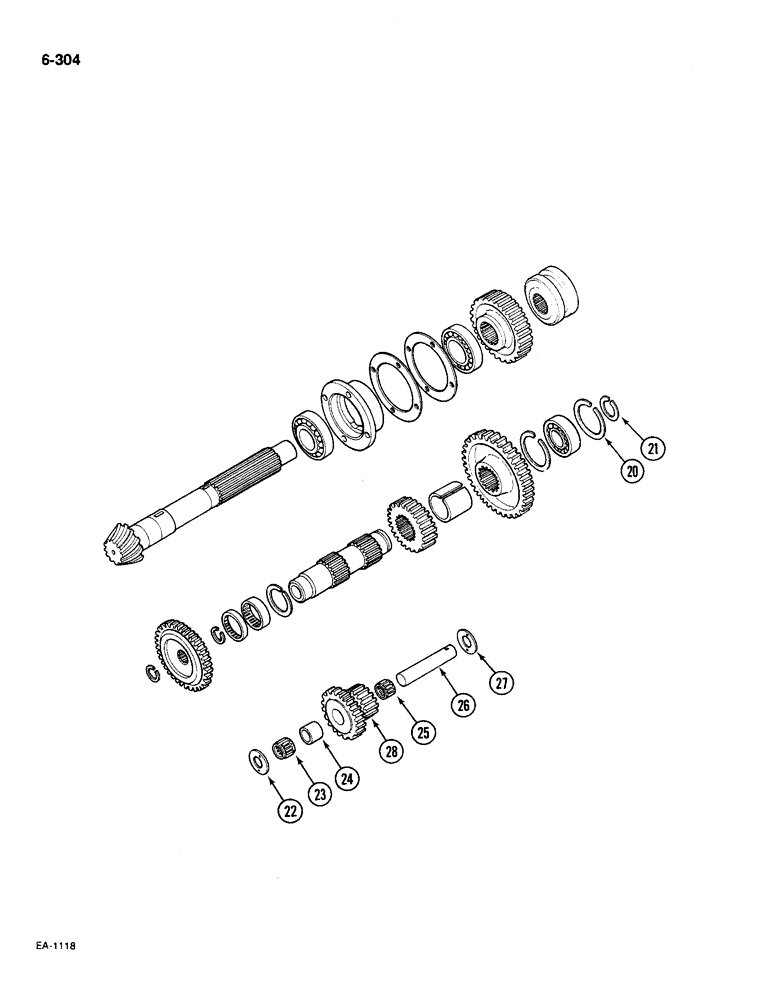

Запчасти Case IH 585 (6-304) - RANGE TRANSMISSION, IN REAR FRAME, 2 WHEEL DRIVE TRACTORS, CONTD (06) - POWER TRAIN

20

399832R1

RING, SNAP

RING retaining

1шт.

21

A27089

SNAP RING,2.36mm Thk, Ext

RING retaining

1шт.

22

3112846R1

THRUST WASHER

WASHER thrust, idler bearing

1шт.

23

3112844R91

BEARING, NEEDLE

BEARING needle, reverse idler gear

1шт.

23

3113041R91

ROLLER CAGE BEARING

needle, Serial Range: (Optional-3112844R91)

1шт.

24

3112845R1

SPACER

idler bearing

1шт.

25

3112844R91

BEARING, NEEDLE

BEARING needle, reverse idler gear (For use with gear 70298C1)

1шт.

25

3113041R91

ROLLER CAGE BEARING

needle (Optional to 3112844R91) (For use with gear 70298C1)

1шт.

25

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING needle (For use with gear 1975490C1)

1шт.

25

3069773R91

NEEDLE BEARING

BEARING needle (Optional to A58077) (For use with gear 1975490C1)

1шт.

26

399838R3

SHAFT

reverse idler

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

27

3112846R1

THRUST WASHER

WASHER thrust, idler bearing

1шт.

28

1975490C1

GEAR

reverse idler, 20/24 teeth (Replaces 70298C1)

1шт.
