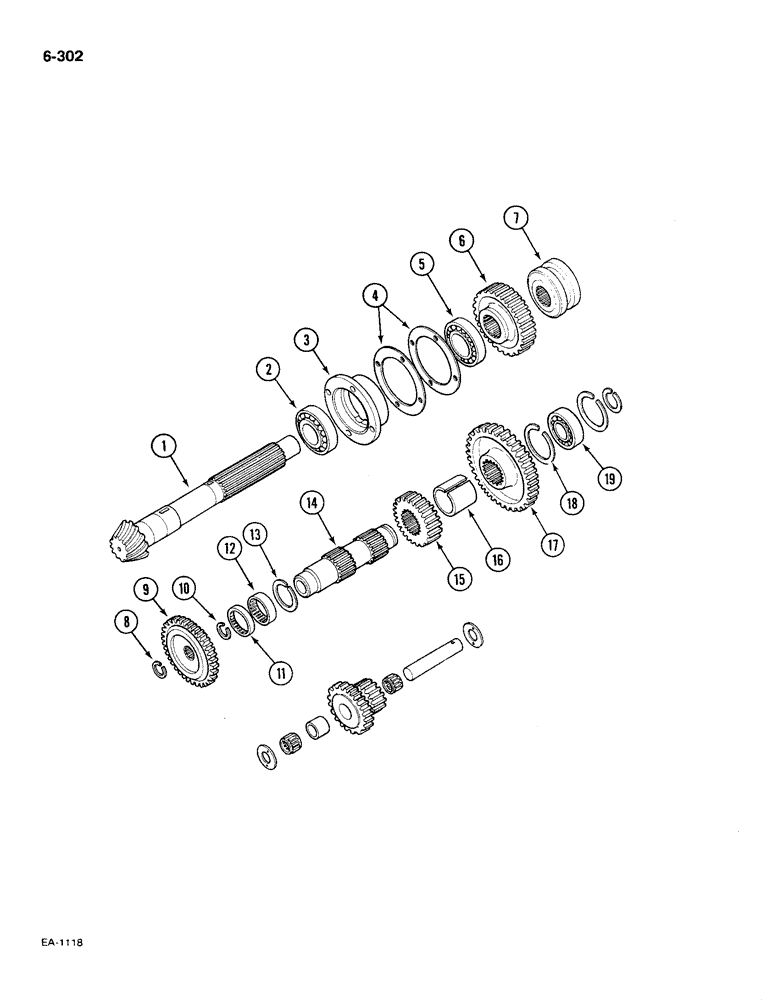

Запчасти Case IH 585 (6-302) - RANGE TRANSMISSION, IN REAR FRAME, 2 WHEEL DRIVE TRACTORS (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

SHAFT (Order bevel gear set 94252C1)

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

main shaft rear

1шт.

2

399824R91

ROLLER BEARING

BEARING, Serial Range: (Optional-399823R91)

1шт.

2

1502181C91

BALL BEARING

, Serial Range: (Optional-399823R91)

1шт.

3

399825R1

BEARING CUP

CAGE bearing, main shaft

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

4шт.

4

65423C1

SHIM KIT

KIT shim, main shaft bearing cage

1шт.

5

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

main shaft front

1шт.

5

399822R91

ROLLER BEARING

BEARING, Serial Range: (Optional-399821R91)

1шт.

5

1502180C91

BALL BEARING

, Serial Range: (Optional-399821R91)

1шт.

6

1286470C1

GEAR

sliding, forward/reserve, 42 teeth

1шт.

7

1277137C1

COLLAR ASSY.

COLLAR high speed shift

1шт.

8

533266R1

RING, SNAP

RING retaining, external, 0.98 inch, IPTO front driven shaft, rear

1шт.

9

94404C1

PINION

GEAR pump drive, 55 teeth

1шт.

10

399837R1

SNAP RING,#118, 1.121", Ext

RING retaining, external, 1.121 inch, pump drive gear

1шт.

11

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING needle, pump drive gear

1шт.

11

527747R91

BEARING, NEEDLE

BEARING needle, Serial Range: (Optional-362251R91)

1шт.

12

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING needle, countershaft, Serial Range: -18001

1шт.

12

94376C91

NEEDLE BEARING,47.625 mm ID x 57.162 mm OD x 25.4 mm

needle, Start Serial: 18001

1шт.

13

398264R1

SNAP RING,#215, 2.026", Ext

RING retaining, external, 2.026 inch, countershaft

1шт.

14

94403C1

SHAFT

counter, range transmission (Replaces 99403C1), Start Serial: 18001

1шт.

14

404096R1

SHAFT

counter, range transmission, Serial Range: -18001

1шт.

15

103150C1

PINION

GEAR driving, lo range, 24 teeth

1шт.

16

399835R1

BUSHING

countershaft gears

1шт.

17

404097R1

GEAR

constant mesh, 46 teeth

1шт.

18

399832R1

RING, SNAP

RING retaining, countershaft bearing

1шт.

19

G10418

BEARING, BALL

BEARING ball, countershaft front

1шт.

19

69843C91

BALL BEARING,49.994 mm ID x 79.994 mm OD x 15.94 mm

BEARING ball (Optional to G10418)

1шт.

19

71069C91

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

BEARING ball (Optional to G10418)

1шт.

19

360635R91

BEARING, BALL

BEARING ball, Serial Range: (Optional-G10418)

1шт.

19

528101R91

BEARING, BALL

BEARING ball, Serial Range: (Optional-G10418)

1шт.

19

528102R91

BEARING, BALL

BEARING ball, Serial Range: (Optional-G10418)

1шт.

19

3047867R91

BEARING, BALL

BEARING ball, Serial Range: (Optional-G10418)

1шт.

19

3069304R91

BALL BEARING

BEARING ball, Serial Range: (Optional-G10418)

1шт.
