(6-300) - BEVEL GEAR MAIN SHAFT, 4 WHEEL DRIVE, P.I.N. 18001 AND AFTER

Запчасти Case IH 585 (6-300) - BEVEL GEAR MAIN SHAFT, 4 WHEEL DRIVE, P.I.N. 18001 AND AFTER (06) - POWER TRAIN

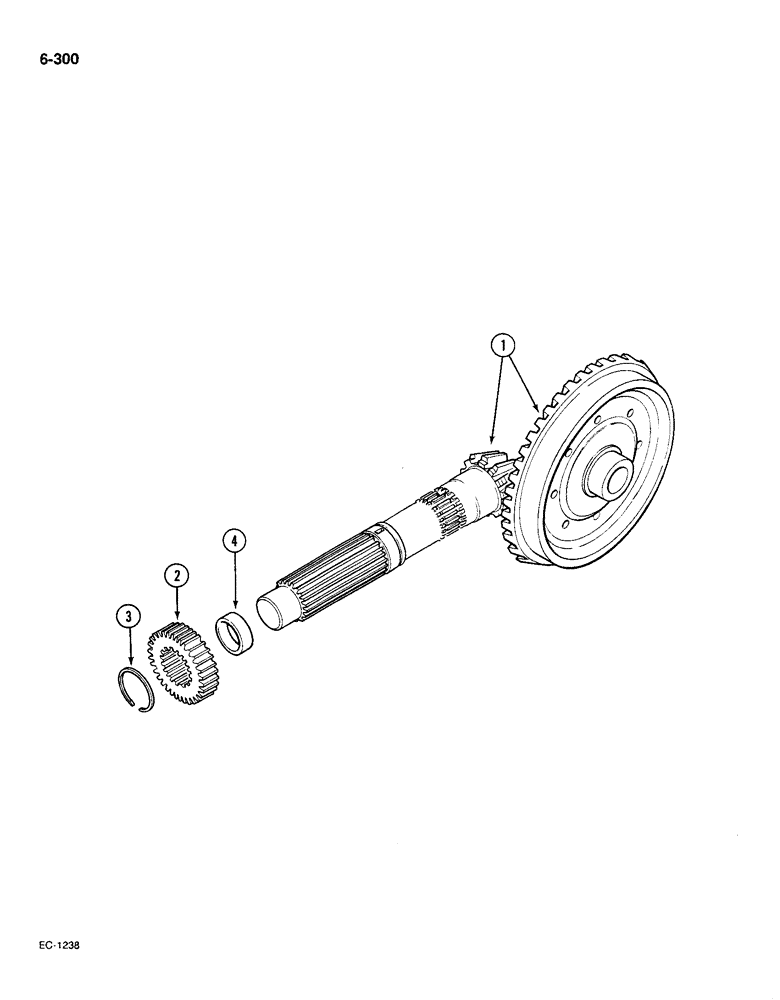

Схема запчастей Case IH 585 - (6-300) - BEVEL GEAR MAIN SHAFT, 4 WHEEL DRIVE, P.I.N. 18001 AND AFTER (06) - POWER TRAIN
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

94252C1

GEAR, BEVEL

SET bevel gear and shaft, matched, 11/52 teeth

1шт.

2

82354C1

GEAR

drive, 38 teeth

1шт.

3

1014674C1

RING, SNAP

RING snap

1шт.

4

3129937R1

SPACER

main shaft

1шт.
