(6-298) - BEVEL GEAR MAIN SHAFT, 4 WHEEL DRIVE, PRIOR TO P.I.N. 18001

Запчасти Case IH 585 (6-298) - BEVEL GEAR MAIN SHAFT, 4 WHEEL DRIVE, PRIOR TO P.I.N. 18001 (06) - POWER TRAIN

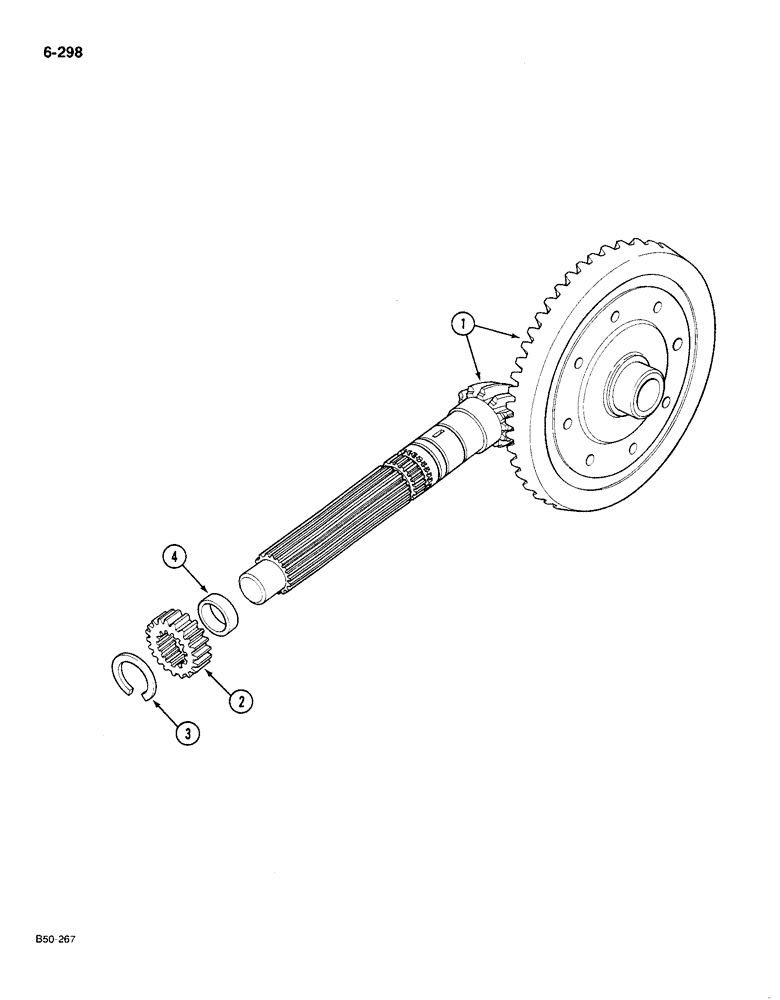

Схема запчастей Case IH 585 - (6-298) - BEVEL GEAR MAIN SHAFT, 4 WHEEL DRIVE, PRIOR TO P.I.N. 18001 (06) - POWER TRAIN
2
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3129934R1

SHAFT

SET bevel gear matched, 11/52 teeth, with shaft

1шт.

2

3129936R1

GEAR

4 wheel drive take off, 21 teeth

1шт.

3

1014674C1

RING, SNAP

RING snap

1шт.

4

3129937R1

SPACER

main shaft

1шт.
