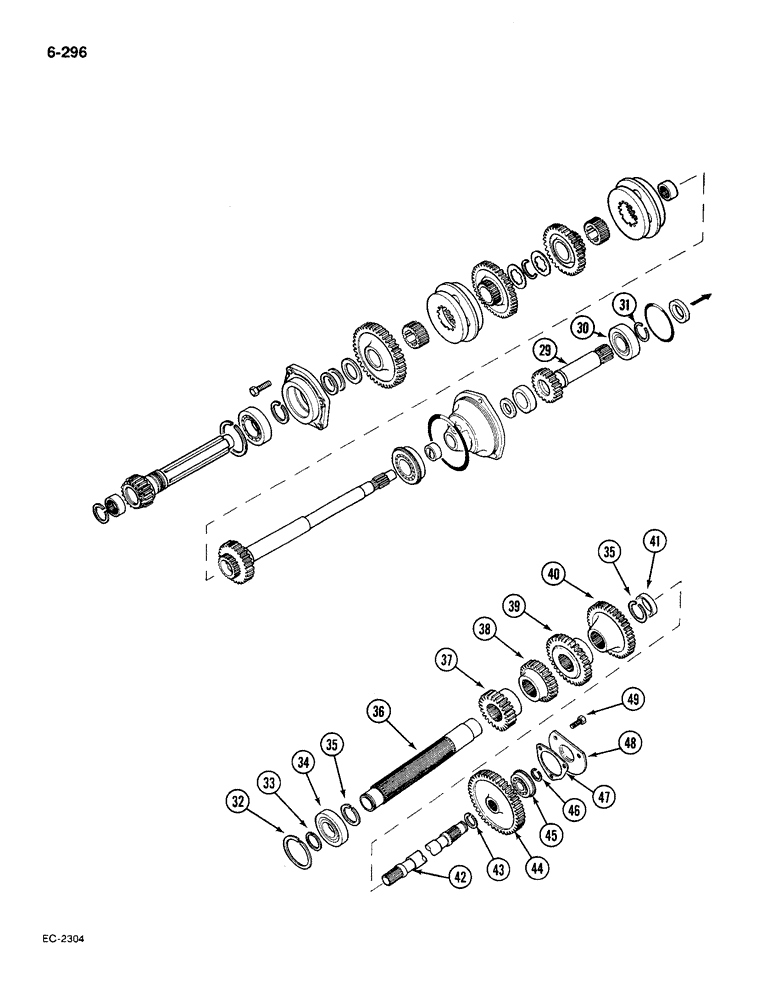

Запчасти Case IH 585 (6-296) - SPEED TRANSMISSION, IN CLUTCH HOUSING, CONTD (06) - POWER TRAIN

29

92713C1

SHAFT

drive, IPTO

1шт.

30

ST342

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING ball

1шт.

30

67653C91

BEARING

ball, Serial Range: (Optional-ST342)

1шт.

30

65354C91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST342)

1шт.

30

1502094C91

BALL BEARING,44.9945 mm ID x 84.9945 mm OD x 18.94 mm

ball (Optional to ST342)

1шт.

31

379511R1

SNAP RING,#177, 1.657", Ext

RING retaining, external, 1.657 inch

1шт.

32

574964R1

RING, SNAP

RING snap, countershaft bearing, inner

1шт.

33

379511R1

SNAP RING,#177, 1.657", Ext

RING retaining, external, 1.657 inch

1шт.

34

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING ball

1шт.

34

13176D

BALL BEARING,2.257" ID x 3.3465" OD x 0.748"

BEARING ball (Optional to ST201)

1шт.

34

67646C91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST201)

1шт.

34

114577C91

BEARING, BALL,44.994 mm ID x 84.9925 mm OD x 18.94 mm

BEARING ball (Optional to ST201)

1шт.

34

452883R91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST201)

1шт.

35

398264R1

SNAP RING,#215, 2.026", Ext

RING retaining, external, 2.026 inch

2шт.

36

404089R2

SHAFT

counter, speed transmission

1шт.

37

404093R1

GEAR

1st speed driven, 26 teeth

1шт.

38

404092R1

PINION

GEAR 2nd speed driven, 34 teeth

1шт.

39

404091R1

PINION

GEAR 3rd and 4th speed driven, 43 teeth

1шт.

40

404090R1

PINION

GEAR constant mesh driven, 39 teeth

1шт.

41

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING needle, Serial Range: -18001

1шт.

41

527746R91

BEARING, NEEDLE

BEARING needle, Serial Range: (Optional-399820R91)

1шт.

41

94376C91

NEEDLE BEARING,47.625 mm ID x 57.162 mm OD x 25.4 mm

needle, Start Serial: 18001

1шт.

42

536748R1

SHAFT ASSY.

SHAFT IPTO driven, front, Serial Range: -18001

1шт.

42

99439C1

SHAFT

IPTO driven, front, Start Serial: 18001

1шт.

43

399837R1

SNAP RING,#118, 1.121", Ext

RING retaining, external, 1.121 inch

1шт.

44

404214R1

GEAR

IPTO driven, 46 teeth

1шт.

45

ST367

BEARING, BALL,25 mm ID x 62 mm OD x 17 mm

BEARING ball

1шт.

45

67654C91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST367)

1шт.

45

65353C91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST367)

1шт.

45

69384C91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST367)

1шт.

45

1502192C91

BALL BEARING,25 mm ID x 67.7 mm OD x 17 mm

BEARING ball (Optional to ST367)

1шт.

45

80491C91

BEARING ASSY

ball, Serial Range: (Optional-ST367)

1шт.

46

A32438

SNAP RING

RING retaining, IPTO driven shaft front bearing

1шт.

47

92648C1

GASKET,0.5mm Thk

IPTO driven shaft front bearing retainer

1шт.

48

398259R1

LARGE PLATE

RETAINER IPTO driven shaft front bearing cap

1шт.

49

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.
