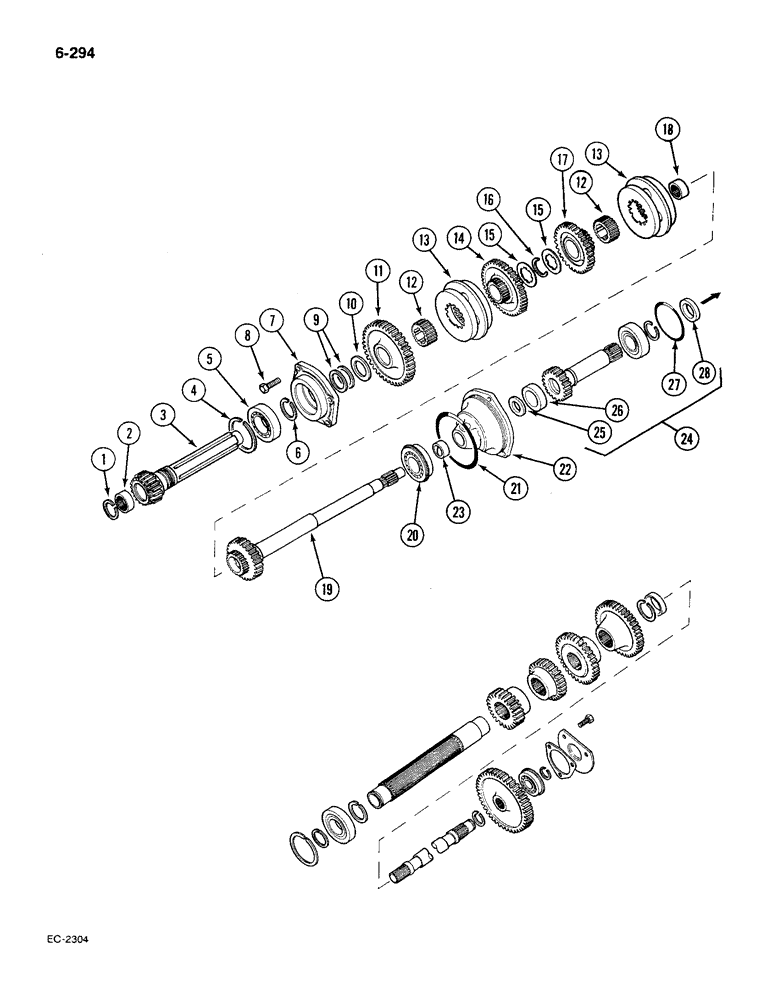

Запчасти Case IH 585 (6-294) - SPEED TRANSMISSION, IN CLUTCH HOUSING (06) - POWER TRAIN

1

66014C1

SNAP RING

RING internal snap

1шт.

2

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

needle

1шт.

3

65258C1

SHAFT

main, speed transmission

1шт.

3

3118323R1

SHAFT

main, speed transmission (With torque amplifier)

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING internal snap

1шт.

5

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING ball

1шт.

5

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING ball (Optional to ST264)

1шт.

5

71271C91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST264)

1шт.

5

704234R91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST264)

1шт.

5

3048701R91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST264)

1шт.

6

A27089

SNAP RING,2.36mm Thk, Ext

RING retaining snap

1шт.

7

534411R1

BEARING ASSY

CAGE main shaft bearing

1шт.

8

NLS

NO LONGER SERVICED

hex, 3/8 NC x 1 inch, grade 5

4шт.

9

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

sealing mainshaft lubrication line

2шт.

10

398332R1

WASHER

mainshaft bearing cage

1шт.

11

398331R2

PINION

GEAR 1st speed driven, 41 teeth

1шт.

12

398325R1

HUB

speed shift

2шт.

13

65793C2

SYNCHRONIZER

with cups

2шт.

14

398330R3

PINION

GEAR 2nd speed driven, 33 teeth

1шт.

15

398328R2

THRUST WASHER

WASHER thrust, main shaft

2шт.

16

398329R1

CIRCLIP

RING snap, synchronizer locating

1шт.

17

398327R3

PINION

GEAR 4th speed driven, 24 teeth

1шт.

18

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING needle

1шт.

RE IT NO. 18-- 531168R91 IS 1.75" OD, 1.37" ID AND 5/8" WIDE. THERE IS ANOTHER BRG USED WHICH IS NOT SHOWN HERE, IT IS PART NUMBER 3118322R91, WHICH IS 1.62" OD, 1.25"ID AND 3/4" WIDE.

1шт.

19

92717C1

SHAFT

clutch

1шт.

20

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING ball

1шт.

20

70126C91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST243)

1шт.

20

42347D

BALL BEARING

BEARING ball, Serial Range: (Optional-ST243)

1шт.

20

398323R91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST243)

1шт.

20

3066860R91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST243)

1шт.

20

3066862R91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST243)

1шт.

20

3067617R91

BEARING, BALL

BEARING ball, Serial Range: (Optional-ST243)

1шт.

21

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 x 5-1/2 inch, class 6

1шт.

22

398318R41

CAGE ASSY.

CAGE PTO and clutch shaft, Includes: Ref. 23

1шт.

23

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

clutch shaft

1шт.

24

1277488C2

SEAL KIT

KIT service, seal, Includes: Ref. 25-28, also includes SLEEVE and INSTRUCTIONS

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL oil, clutch shaft

1шт.

26

376930R91

OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk

oil, IPTO shaft

1шт.

27

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 inch, class 5

1шт.

28

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL oil, release sleeve

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE installation

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS fitting

1шт.
