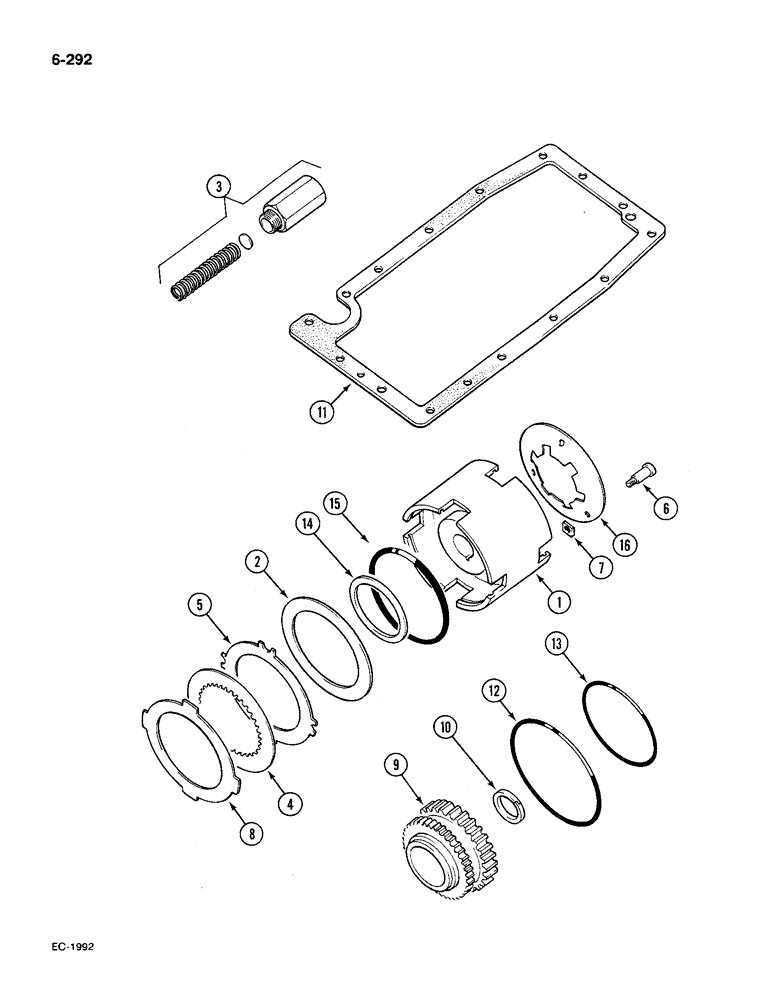

Запчасти Case IH 585 (6-292) - TORQUE AMPLIFIER HEAVY DUTY, UPDATE PACKAGE (06) - POWER TRAIN

1282783C91

PACKAGE

TA heavy duty update, Includes: Ref. 1-16

1шт.

1

1502339C1

HOUSING

CUP direct drive clutch

1шт.

2

1502338C91

SHIM KIT

KIT service, includes SHIMS and INSTRUCTIONS

1шт.

NSS

NOT SOLD SEPARAT

SHIM, .014 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .024 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM, .036 inch

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS clutch cup assembly

1шт.

3

1502344C93

PACKAGE

KIT service, regulator valve, includes PLUG, SPRING, SHIM and INSTRUCTIONS

1шт.

NSS

NOT SOLD SEPARAT

PLUG

1шт.

NSS

NOT SOLD SEPARAT

SPRING

1шт.

NSS

NOT SOLD SEPARAT

SHIM

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

4

401716R3

DISC

PLATE clutch driven

6шт.

5

401717R1

PLATE

clutch separator

4шт.

6

1502341C1

BOLT,Hex Skt, 1/4" - 28 - 9.50mm x 33mm

BOLT piston return

3шт.

7

65240C1

SQUARE NUT

square, 1/4 inch NF

3шт.

8

1502340C1

PLATE

clutch backing

2шт.

9

402563R2

PINION

GEAR drive, sprag clutch

1шт.

10

406275R1

RING

clutch shaft piston

2шт.

11

401621R3

GASKET

clutch housing top cover

1шт.

12

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 x 5-1/2 inch, class 6

1шт.

13

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 inch, class 5

1шт.

14

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

RING clutch piston inner

1шт.

15

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING clutch piston, outer

1шт.

16

402574R1

BELLEVILLE WASHER

WASHER belleville

3шт.
