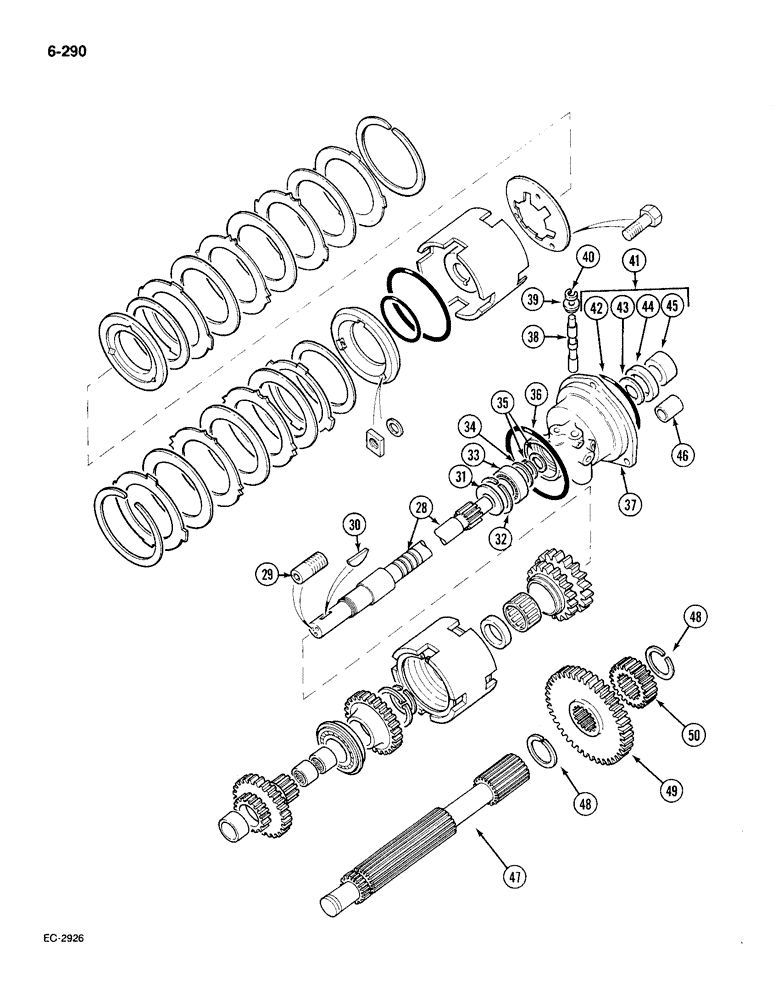

Запчасти Case IH 585 (6-290) - TWO SPEED POWER SHIFT, CONTD (06) - POWER TRAIN

28

1502173C91

SHAFT ASSY.

SHAFT clutch, Serial Range: -18001

1шт.

28

92757C91

SHAFT

clutch, Start Serial: 18001

1шт.

29

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

SCREW set hex socket, 1/4 NC x 1/4 inch

1шт.

29

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set hex socket, 1/4 NC x 1/4 inch (Optional to 222386)

1шт.

30

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

woodruff, 5/16 x 1 inch

1шт.

31

402562R1

THRUST WASHER

WASHER thrust, clutch shaft

1шт.

32

377911R1

RING, SNAP

RING retaining, inner, clutch shaft bearing

1шт.

33

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING ball, clutch shaft

1шт.

33

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

BEARING ball, (Optional to ST205A)

1шт.

33

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

BEARING ball, (Optional to ST205A)

1шт.

33

71270C91

BEARING, BALL

BEARING ball, Serial Range: (Optional-ST205A)

1шт.

33

700311R92

BALL BEARING

BEARING ball, Serial Range: (Optional-ST205A)

1шт.

34

A21619

CIRCLIP

RING retaining

1шт.

35

406275R1

RING

clutch shaft piston, Serial Range: -18001

2шт.

35

85038C1

SEALING RING,27.15mm ID x 30.4mm OD x 2.29mm Thk

clutch shaft piston, Start Serial: 18001

2шт.

36

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 x 5-1/2 inch, class 6

1шт.

37

531540R5

CAGE

IPTO and clutch cup retainer, Serial Range: -18001

1шт.

37

98555C1

HOUSING

CAGE IPTO and clutch cup retainer, Start Serial: 18001

1шт.

38

536975R1

STEM

TA control, Serial Range: -18001

1шт.

39

531539R1

COLLAR

control stem, Serial Range: -18001

1шт.

40

896045R1

SNAP RING,#37, Ext

Control stem collar #37, Ext, Serial Range: -18001

1шт.

41

1277488C2

SEAL KIT

KIT service, seal, Includes: Ref. 42-46 and INSTRUCTIONS

1шт.

42

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 inch, class 5

1шт.

43

NSS

NOT SOLD SEPARAT

SEAL oil, high pressure

1шт.

44

376930R91

OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk

oil, IPTO shaft

1шт.

45

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL oil, release sleeve

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE installation

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS fitting, clutch shaft and seals

1шт.

47

404104R3

SHAFT

counter-rotating

1шт.

48

381486R1

SNAP RING,#187, 1.759", Ext

RING retaining, external, 1.759 inch

2шт.

49

404105R1

PINION

GEAR driven, 42 teeth

1шт.

50

404106R1

GEAR

pump drive, 27 teeth, Serial Range: -18001

1шт.
