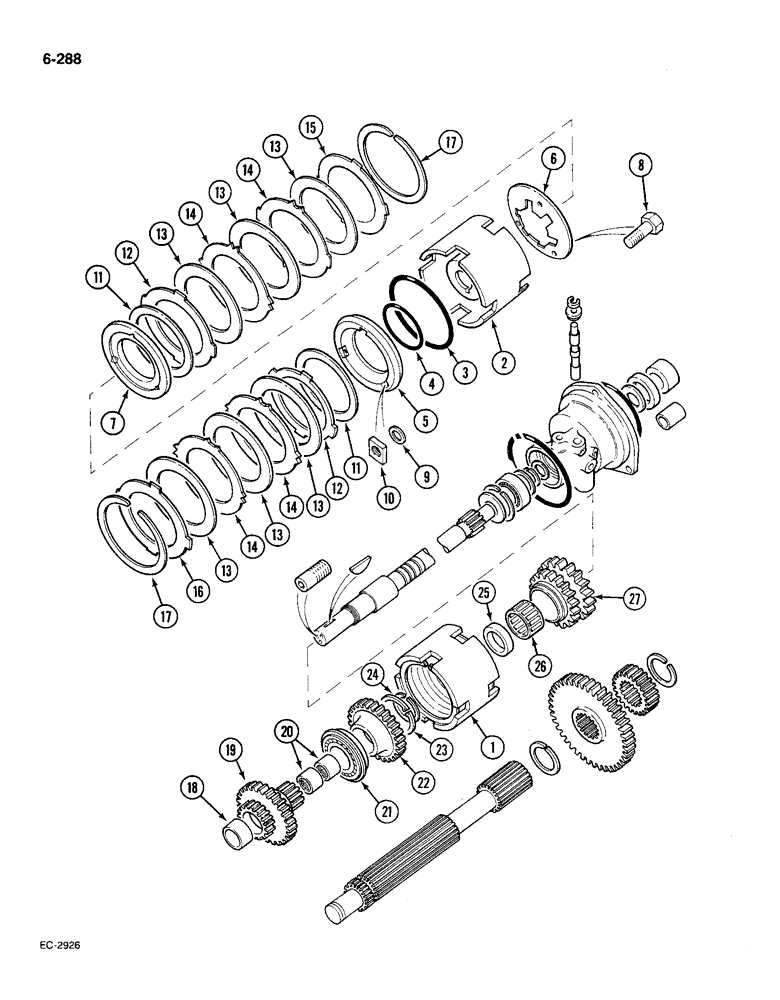

Запчасти Case IH 585 (6-288) - TWO SPEED POWER SHIFT (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

CLUTCH direct drive, Includes: Ref. 1-17

1шт.

2

1502339C1

HOUSING

CUP direct drive clutch

1шт.

3

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING clutch piston, outer

1шт.

4

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

RING clutch piston inner

1шт.

5

402570R1

PISTON

direct drive clutch

1шт.

6

402574R1

BELLEVILLE WASHER

WASHER belleville

3шт.

7

402573R1

PLATE

clutch lock up pressure

1шт.

8

1502341C1

BOLT,Hex Skt, 1/4" - 28 - 9.50mm x 33mm

BOLT piston return

3шт.

9

402576R1

WASHER,6.6mm ID x 15.88mm OD x 0.84mm Thk

piston support

3шт.

10

65240C1

SQUARE NUT

square, 1/4 inch NF

3шт.

11

1502338C91

SHIM KIT

KIT service, includes next three SHIMS and INSTRUCTIONS for installation

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.014 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.024 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.036 inch

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS shim installation

1шт.

12

402572R1

PLATE

piston backing

2шт.

13

401716R3

DISC

PLATE clutch driven

6шт.

14

401717R1

PLATE

clutch separator

4шт.

15

1502340C1

PLATE

clutch backing

1шт.

16

402569R1

PLATE

clutch backing

1шт.

17

401720R1

CIRCLIP

RING retaining, backing plate

2шт.

18

3118322R91

BEARING, NEEDLE

BEARING needle, clutch shaft

1шт.

19

3118321R2

PINION

GEAR direct drive hub, 28 teeth

1шт.

20

550839R91

BEARING, NEEDLE

BEARING needle, clutch shaft

2шт.

20

531436R91

NEEDLE BEARING

BEARING needle, Serial Range: (Optional-550839R91)

2шт.

21

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING ball, direct drive gear

1шт.

21

42347D

BALL BEARING

BEARING ball, Serial Range: (Optional-ST243)

1шт.

21

398323R91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST243)

1шт.

21

70126C91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST243)

1шт.

21

3066862R91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST243)

1шт.

21

3067617R91

BEARING, BALL

BEARING ball, Serial Range: (Optional-ST243)

1шт.

21

3066860R91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST243)

1шт.

22

404199R3

SPROCKET ASSY.

CARRIER direct drive clutch disc

1шт.

23

336000R1

SNAP RING,#175, 1.640", Ext

RING retaining, external, 1.64 inch

1шт.

24

583976R1

SNAP RING,#125, 1.179", Ext

RING retaining, external, 1.179 inch

1шт.

25

402567R91

OIL SEAL,36.65mm ID x 54.86mm OD x 4.78mm Thk

SEAL oil, sprag bore

1шт.

26

402566R1

BEARING ASSY

sprag

1шт.

27

402563R2

PINION

GEAR drive, sprag clutch

1шт.
