(6-286) - FORWARD AND REVERSE CLUTCH

Запчасти Case IH 585 (6-286) - FORWARD AND REVERSE CLUTCH (06) - POWER TRAIN

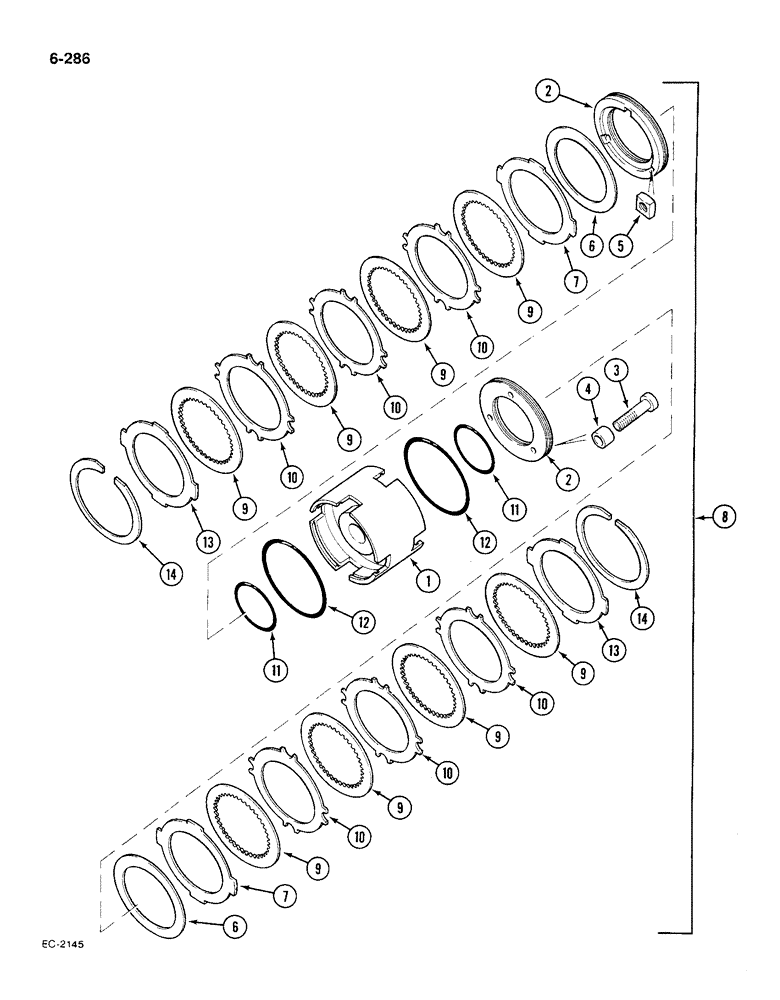

Схема запчастей Case IH 585 - (6-286) - FORWARD AND REVERSE CLUTCH (06) - POWER TRAIN
6
7
10
9
10
2
11
9
9
3
9
14
13
2
9
12
8
6
10
7
13
12
11
10
9
10
4
5
10
14
9
1
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

CUP clutch

1шт.

Ref #1 - 70014C2 Complete Clutch Pak

1шт.

2

70017C1

PISTON

direct drive clutch

2шт.

3

527768R1

BOLT (SPREADER),Skt Hd, 1/4" - 28 x 1"

BOLT forward/reverse piston return

3шт.

3

114530C1

BOLT

forward/reverse piston return, Serial Range: (Optional-527768R1)

3шт.

4

527769R2

SPACER

piston

3шт.

5

65240C1

SQUARE NUT

square, 1/4 inch NF

3шт.

6

70039C1

SHIM KIT

KIT service, piston return, includes next three SHIMS and INSTRUCTIONS for installation

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.014 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.024 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.036 inch

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS shim installation

1шт.

7

402572R1

PLATE

piston backing

2шт.

8

534937R92

PACKAGE, REPAIR

KIT service, forward/reverse clutch plate, Includes: Ref. 9-12

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE clutch driven

8шт.

10

NSS

NOT SOLD SEPARAT

PLATE clutch separator

6шт.

11

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

clutch piston, inner

2шт.

12

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING clutch piston, outer

2шт.

13

70016C1

PLATE

clutch backing

2шт.

14

401720R1

CIRCLIP

RING retaining, backing plate

2шт.
