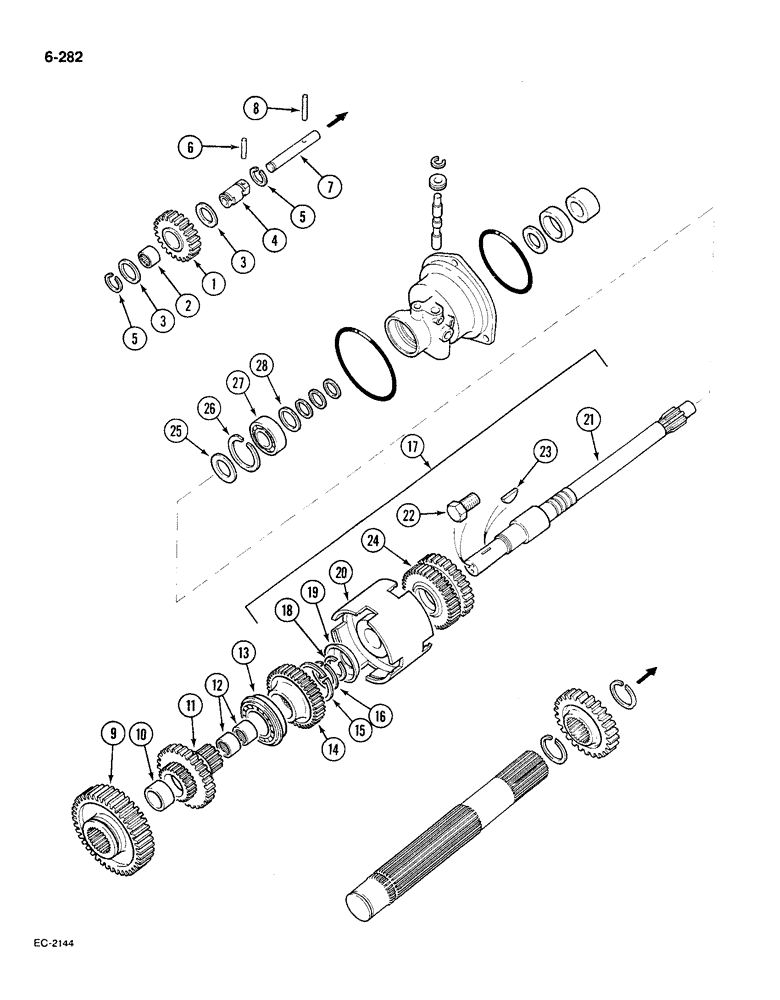

Запчасти Case IH 585 (6-282) - FORWARD AND REVERSE, SYNCHROMESH DRIVE (06) - POWER TRAIN

1

527776R1

PINION

GEAR forward/reverse idler, 23 teeth

1шт.

2

551139R91

BEARING, NEEDLE

BEARING needle

1шт.

2

529930R91

BEARING

needle, Serial Range: (Optional-551139R91)

1шт.

3

527772R1

WASHER

forward/reverse idler gear

2шт.

4

527775R2

SLEEVE

idler gear

1шт.

5

362260R1

RING, SNAP

RING retainer, idler gear

2шт.

6

18543R1

LOCK PIN,7/32" x 1", Slotted

PIN, 7/32" x 1", Slotted

1шт.

7

527774R1

SHAFT

forward/reverse idler

1шт.

8

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

9

527773R2

GEAR

hi-lo sliding, 42 teeth

1шт.

10

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING needle

1шт.

11

404200R3

PINION

GEAR direct drive hub, 28 teeth

1шт.

12

550839R91

BEARING, NEEDLE

BEARING needle

2шт.

12

531436R91

NEEDLE BEARING

BEARING needle, Serial Range: (Optional-550839R91)

2шт.

13

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING ball

1шт.

13

398323R91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST243)

1шт.

13

42347D

BALL BEARING

BEARING ball, Serial Range: (Optional-ST243)

1шт.

13

3066862R91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST243)

1шт.

13

3067617R91

BEARING, BALL

BEARING ball, Serial Range: (Optional-ST243)

1шт.

13

3066860R91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST243)

1шт.

14

404199R3

SPROCKET ASSY.

CARRIER direct drive clutch disc

1шт.

15

70244C1

RING, SNAP

RING internal

1шт.

16

336000R1

SNAP RING,#175, 1.640", Ext

RING retaining, external, 1.64 inch

1шт.

17

92758C91

PACKAGE

KIT service, forward/reverse shaft and clutch cup, Includes: Ref. 18-23

1шт.

18

583976R1

SNAP RING,#125, 1.179", Ext

RING retaining, external 1.179 inch

1шт.

19

70020C1

SLINGER

direct drive clutch

1шт.

20

NSS

NOT SOLD SEPARAT

CUP direct drive clutch

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT clutch, Includes: Ref. 22

1шт.

22

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

SCREW set hex socket, 1/4 NC x 1/4 inch

2шт.

22

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set hex socket, 1/4 NC x 1/4 inch (Optional to 222386)

2шт.

23

124554

O-RING

woodruff, 5/16 x 1 inch

1шт.

24

527763R3

PINION

GEAR drive, 28 teeth

1шт.

25

527767R1

THRUST WASHER

WASHER thrust, clutch shaft

1шт.

26

T17410

SNAP RING,M62 x 1.58mm Thk, Int

RING retaining

1шт.

27

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING ball, clutch shaft

1шт.

27

86276H

BALL BEARING

ball, Serial Range: (Optional-ST213)

1шт.

27

704771R92

BEARING, BALL,30 mm ID x 62 mm OD x 16"

BEARING ball (Optional to ST213)

1шт.

27

70125C91

BEARING, BALL

BEARING ball, Serial Range: (Optional-ST213)

1шт.

28

3112664R1

SNAP RING

RING retaining

1шт.
