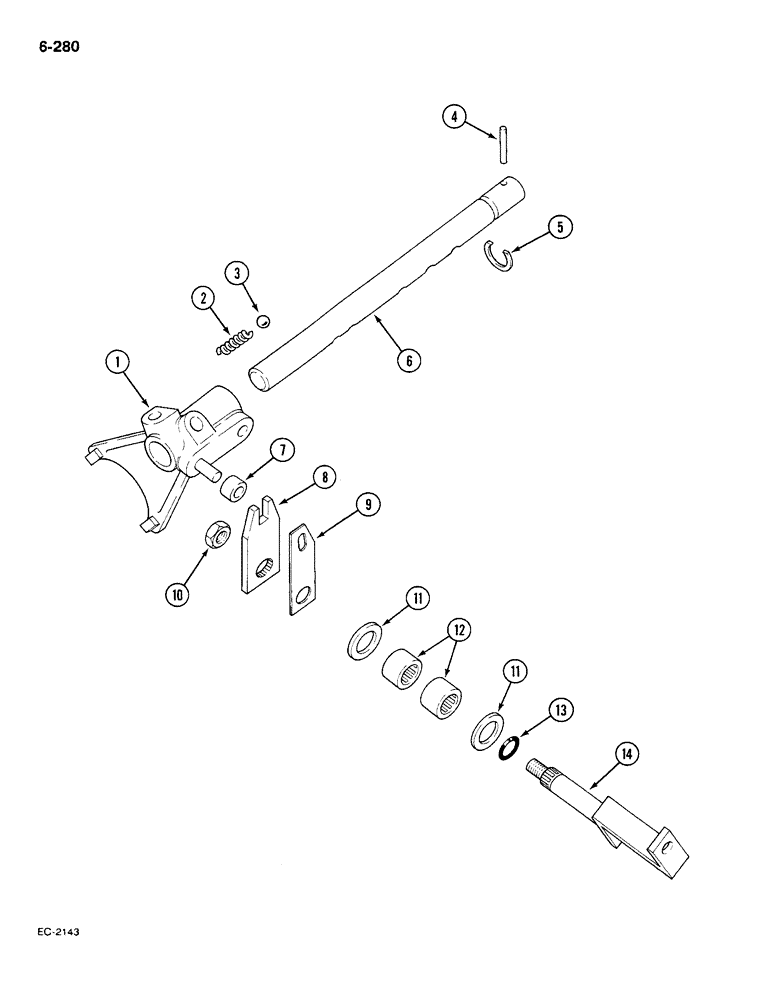

Запчасти Case IH 585 (6-280) - RANGE SHIFT MECHANISM, CONTD (06) - POWER TRAIN

1

86311C1

FORK

rear, range shift

1шт.

2

103062C1

SPRING

poppet ball

1шт.

3

17013R1

BALL,13/32" Dia

1шт.

4

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

5

148501C1

RING, SNAP

RING retaining

1шт.

6

86304C1

RAIL

range shift fork

1шт.

7

1286423C1

BUSHING

range shift pin

1шт.

8

1286421C1

ARM

range shift, inner

1шт.

9

86310C1

PLATE

retainer

1шт.

10

19605R1

LOCK NUT,1/2"-13, GB

NUT lock, 1/2 inch NC, grade 5

1шт.

10

131-208

SPECIAL NUT,1/2"-13

NUT lock, 1/2 inch NC (Optional to 19605R1)

1шт.

11

21018R1

WASHER

flat, 0.781 x 1.5 x 0.027 inch

1шт.

12

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

BEARING needle

2шт.

13

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

1шт.

14

1289948C1

ARM

range shift, outer rear

1шт.
