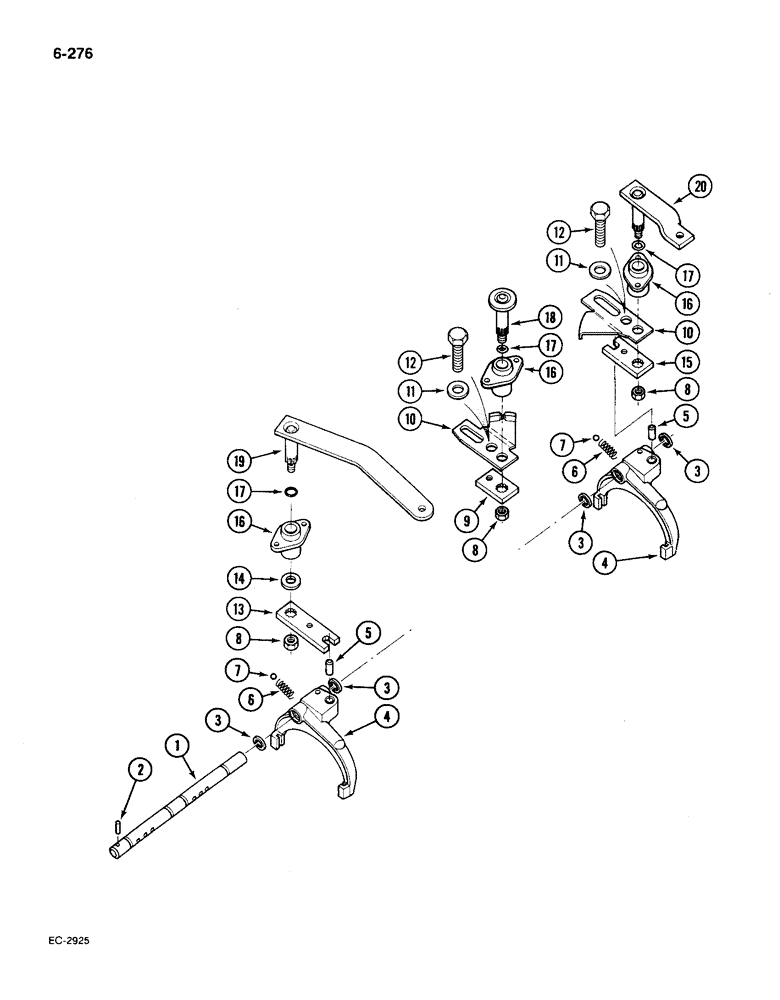

Запчасти Case IH 585 (6-276) - SPEED SHIFT MECHANISM, WITH CAB (06) - POWER TRAIN

1

3129154R1

RAIL

speed shift fork

1шт.

2

25155R1

PIN,1/4" x 1 1/4", Coiled

1шт.

3

661652R1

SNAP RING,#75, Ext

4шт.

4

1500245C91

FORK

gear shift, Includes: Ref. 5

2шт.

5

1500656C1

DOWEL

PIN chamfered dowel, 1/2 x 2-1/4 inch

1шт.

6

103062C1

SPRING

poppet ball

2шт.

7

17013R1

BALL,13/32" Dia

2шт.

8

19605R1

LOCK NUT,1/2"-13, GB

NUT lock, 1/2 inch NC, grade 5

3шт.

8

131-208

SPECIAL NUT,1/2"-13

NUT lock, 1/2 inch NC (Optional to 19605R1)

3шт.

9

1277031C1

LARGE PLATE

PLATE interlock arm support

1шт.

10

1500249C2

LARGE PLATE

PLATE interlock

2шт.

11

30327R1

WASHER,M10 x 21.5 x 2.5, HT

flat, 10.8 x 21 x 2.5 mm

2шт.

12

30019R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

13

3129171R2

ARM

speed shift, 3rd/4th

1шт.

14

1500250C1

SPACER

1шт.

15

3129167R2

ARM

speed shift, 1st/2nd

1шт.

16

3129165R2

HOUSING

speed shift arm

3шт.

17

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

3шт.

18

1277030C1

PIVOT ASSY.

PIVOT interlock

1шт.

19

3129190R4

ARM

shift actuating, 3rd/4th speed

1шт.

20

3129184R1

ARM ASSY.

ARM speed shift actuating, 1st/2nd

1шт.
