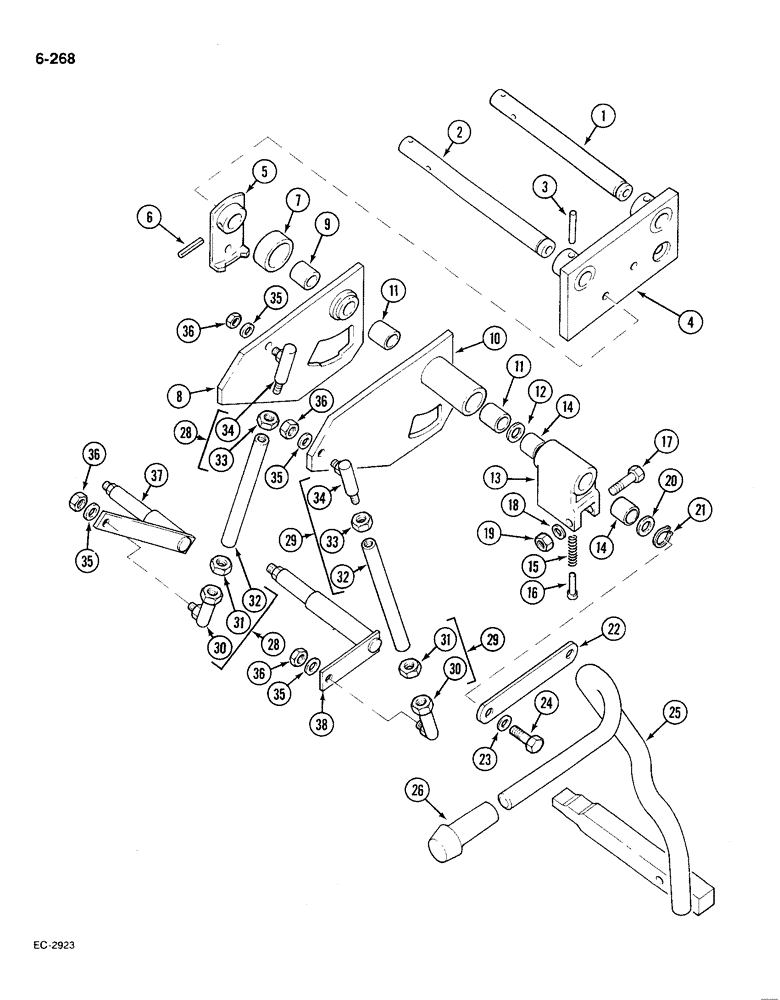

Запчасти Case IH 585 (6-268) - TRANSMISSION RANGE SHIFT CONTROLS, WITH CAB (06) - POWER TRAIN

1

1281602C1

SHAFT

pivot, speed shift lever

1шт.

2

1283218C1

SHAFT

pivot, range shift lever

1шт.

3

617941R1

PIN,5/16" x 2", Coiled

1шт.

4

1283219C1

PLATE ASSY.

PLATE shift pivot

1шт.

5

98615C1

LEVER

GATE range shift

1шт.

6

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

7

86000C1

SPACER

pin, retaining

1шт.

8

1283427C91

LEVER ASSY.

LEVER range shift, H/N, Includes: Ref. 9

1шт.

9

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

10

1283425C92

LEVER

range shift, L/R, Includes: Ref. 11

1шт.

11

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

2шт.

12

615192R1

WASHER

flat, 0.906 x 1.25 x 0.027 inch

1шт.

13

3129214R92

HOUSING ASSY.

HOUSING selector arm, Includes: Ref. 14

1шт.

14

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

clutch and brake shafts

2шт.

15

71486C1

SPRING

compression

1шт.

16

22938R1

HEADED PIN,5/16" x 1/2"

PIN, HEADED, 5/16" x 1/2"

1шт.

17

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot

1шт.

18

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

1шт.

19

9413979

LOCK NUT,3/8"-16, GC

NUT hex lock, 3/8 inch NC, grade 8

1шт.

20

615192R1

WASHER

flat, 0.906 x 1.25 x 0.027 inch

1шт.

21

454331R1

SNAP RING,#87, Ext

1шт.

22

1283477C1

LEVER

pivot shaft

1шт.

23

933965R1

LOCK WASHER,M10

1шт.

24

905260R1

HEX SOC SCREW,M10 x 20mm, Cl 12.9

cap, hex socket, M10 x 20 mm

1шт.

25

1283429C2

LEVER ASSY.

LEVER range shift

1шт.

26

3129412R2

HANDLE

KNOB range lever

1шт.

28

1281620C91

ROD ASSY.

ROD complete, H/N range control

1шт.

29

1281618C91

ROD ASSY.

ROD complete, L/R range control, Includes: Ref. 30-34

1шт.

30

1282947C1

BALL JOINT

JOINT ball, M10 L.H. thread

1шт.

31

30860R1

NUT,M10, Cl 8, LH

hex, M10 L.H. thread, grade 8.8

1шт.

32

NSS

NOT SOLD SEPARAT

ROD tie

1шт.

33

30168R1

NUT,M10, Cl 10

hex, M10, class 10

1шт.

34

3129345R1

BALL JOINT

JOINT ball, M10

1шт.

35

933348R1

WASHER,M10 x 20 x 2

flat, 10.8 x 21 x 2 mm

4шт.

36

905262R1

NUT,M10 x 1.5, Cl 10

NUT lock, M10, grade 10

4шт.

37

1289944C2

ARM ASSY.

ARM range shift actuating, H/N

1шт.

38

1281622C2

ARM ASSY.

ARM range shift actuating, L/R

1шт.
