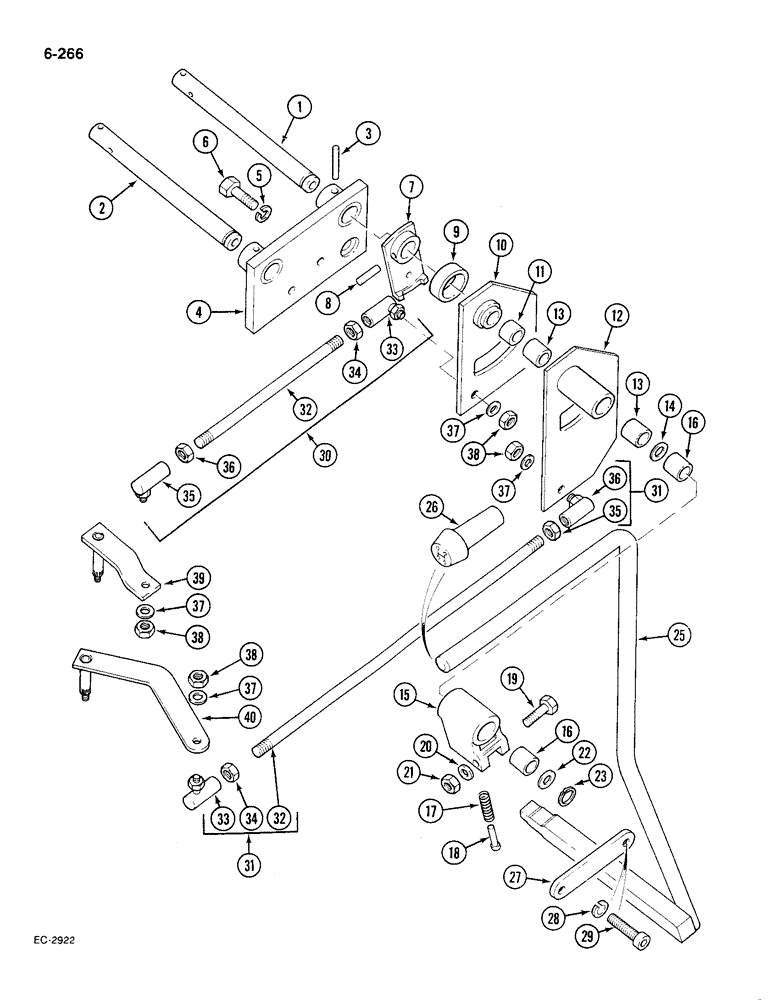

Запчасти Case IH 585 (6-266) - TRANSMISSION SPEED SHIFT CONTROL, WITH CAB (06) - POWER TRAIN

1

1281602C1

SHAFT

pivot, speed shift lever

1шт.

2

1283218C1

SHAFT

pivot, range shift lever

1шт.

3

617941R1

PIN,5/16" x 2", Coiled

1шт.

4

1283219C1

PLATE ASSY.

PLATE shift pivot

1шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, grade 5

3шт.

7

3129218R2

PLATE

GATE shift

1шт.

8

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

9

86000C1

SPACER

pin, retaining

1шт.

10

1281608C91

LEVER ASSY.

LEVER speed shift, 1st and 2nd, Includes: Ref. 11

1шт.

11

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

1шт.

12

1281609C92

LEVER ASSY.

LEVER speed shift, 3rd and 4th, Includes: Ref. 13

1шт.

13

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

lever

2шт.

14

615192R1

WASHER

flat, 0.906 x 1.25 x 0.027 inch

1шт.

15

3129214R92

HOUSING ASSY.

HOUSING selector arm, Includes: Ref. 16

1шт.

16

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

clutch and brake shafts

2шт.

17

71486C1

SPRING

compression

1шт.

18

22938R1

HEADED PIN,5/16" x 1/2"

PIN, HEADED, 5/16" x 1/2"

1шт.

19

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot

1шт.

20

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

1шт.

21

9413979

LOCK NUT,3/8"-16, GC

NUT hex lock, 3/8 inch NC, grade 8

1шт.

22

615192R1

WASHER

flat, 0.906 x 1.25 x 0.027 inch

1шт.

23

454331R1

SNAP RING,#87, Ext

1шт.

25

1283431C1

LEVER

speed shift

1шт.

26

3129420R3

BUTTON

KNOB speed shift lever

1шт.

27

1283477C1

LEVER

pivot shaft

1шт.

28

933965R1

LOCK WASHER,M10

1шт.

29

905260R1

HEX SOC SCREW,M10 x 20mm, Cl 12.9

cap, hex socket, M10 x 20 mm

1шт.

30

1281613C91

ROD

complete 1st and 2nd speed control

1шт.

31

1281616C91

ROD ASSY.

ROD complete 3rd and 4th speed control, Includes: Ref. 32-36

1шт.

32

NSS

NOT SOLD SEPARAT

ROD tie

1шт.

33

1282947C1

BALL JOINT

JOINT ball, M10 L.H. thread

1шт.

34

30860R1

NUT,M10, Cl 8, LH

hex, M10 L.H. thread, grade 8.8

1шт.

35

3129345R1

BALL JOINT

JOINT ball, M10

1шт.

36

30168R1

NUT,M10, Cl 10

hex, M10, class 10

1шт.

37

933348R1

WASHER,M10 x 20 x 2

flat, 10.8 x 21 x 2 mm

4шт.

38

905262R1

NUT,M10 x 1.5, Cl 10

NUT lock, M10, grade 10

4шт.

39

3129184R1

ARM ASSY.

ARM speed shift actuating, 1st/2nd

1шт.

40

3129190R4

ARM

shift actuating, 3rd/4th speed

1шт.
