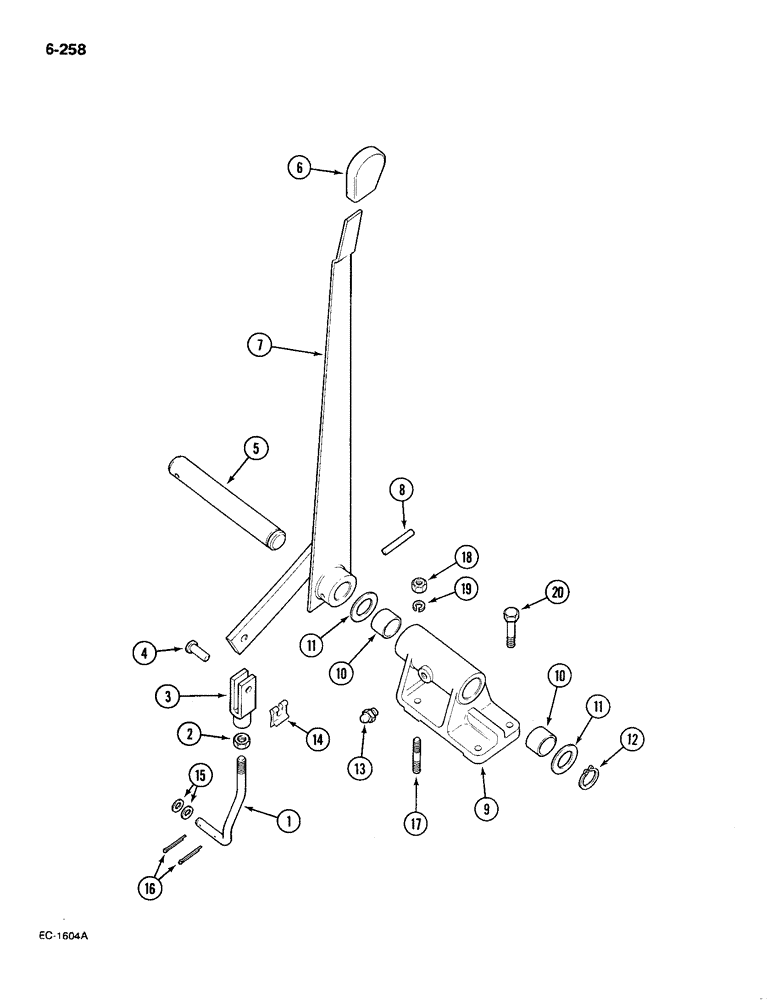

Запчасти Case IH 585 (6-258) - FOUR WHEEL DRIVE CONTROL LEVER, PRIOR TO P.I.N. 18001 (06) - POWER TRAIN

1

1500011C1

ROD

1шт.

2

30168R1

NUT,M10, Cl 10

hex, M10, class 10

1шт.

3

3129369R1

CLEVIS

1шт.

4

1281764C1

PIN

clevis

1шт.

5

1500008C1

SHAFT

1шт.

6

3129746R2

BUTTON

KNOB control

1шт.

7

1500000C1

LEVER

complete assembly

1шт.

8

Q2935

LOCK PIN,M8 x 45, Slotted

PIN, LOCK, M8 x 45, Slotted

1шт.

9

1500004C91

BRACKET

assembly, Includes: Ref. 10

1шт.

10

405574R1

BUSHING

cylinder mounting bracket

2шт.

11

1500009C1

SPACER

2шт.

12

454417R1

SNAP RING,#100, Ext

RING retaining, external, 0.925 inch

1шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPTF 1/8"-27 x .66 lg

1шт.

14

1281765C1

CLIP

safety

1шт.

1093130R1

PRODUCT GRAPHIC

DECAL caution (not illustrated)

1шт.

1093124R1

PRODUCT GRAPHIC

DECAL control (not illustrated)

1шт.

Ref #14 - The 1093124R1 is for 4 Wheel- 2 Wheel / Shift Position

1шт.

1093136R1

PRODUCT GRAPHIC

DECAL lubrication (not illustrated)

1шт.

15

30282R1

WASHER,M10 x 20 x 2

plain, M10

2шт.

16

934792R1

COTTER PIN,M3.2 x 20

PIN cotter, 3.2 x 20 mm

2шт.

17

1500763C1

STUD

M10 x 42 mm

2шт.

18

30284R1

NUT,M10, Cl 10

hex, M10, class 10

2шт.

19

933965R1

LOCK WASHER,M10

2шт.

20

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

hex, M10 x 25 mm, class 8.8, ZND

2шт.
