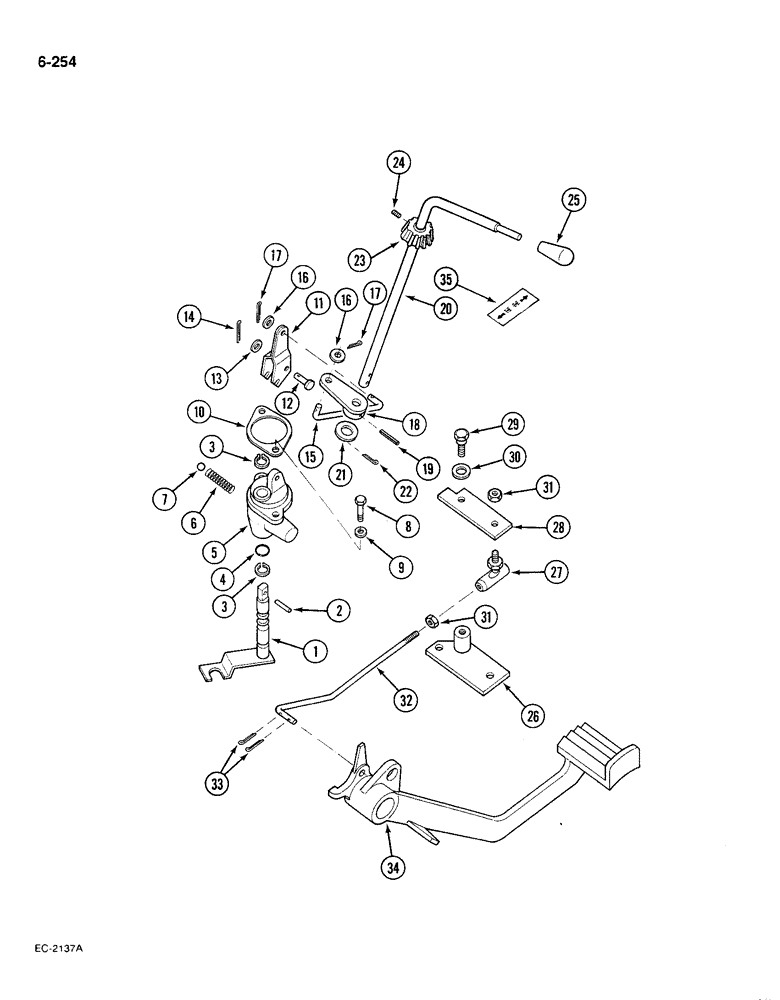

Запчасти Case IH 585 (6-254) - FORWARD AND REVERSE CONTROLS, WITHOUT CAB, LOCKOUT LEVER AND CONNECTIONS (06) - POWER TRAIN

1

531553R1

LEVER ASSY.

LEVER lockout control

1шт.

2

19878R1

DOWEL,3/16" x 1"

PIN, hardened, 3/16 x 1 inch

1шт.

3

309032R1

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

2шт.

4

370920R1

O-RING,1/2" ID

1/2 x 5/8 inch, class 5

1шт.

5

402595R2

SUPPORT

control shaft

1шт.

6

402596R1

SPRING

control

1шт.

7

17014R1

BALL

7/16 inch diameter, grade 25 metal

1шт.

8

179814

SPACER

- hex, 5/16 NC x 5/8 inch, grade 5

2шт.

9

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

401623R1

GASKET

control shaft support

1шт.

11

1282951C1

LEVER

BELLCRANK forward/reverse control

1шт.

12

22731D

SPLIT PIN/SAFETY PIN

PIN clevis, 1/4 x 29/32 inch

1шт.

13

16558R1

WASHER

plain, 0.266 x 0.625 x 0.036 inch

1шт.

14

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

15

98803C1

ROD

control

1шт.

16

95-11028

WASHER,1/4"

plain, 0.281 x 0.625 x 0.051 inch

2шт.

17

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

18

98858C1

ARM ASSY.

ARM control

1шт.

19

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

20

3121402R2

ROD

control handle

1шт.

21

Q5035

WASHER

plain, 0.531 x 1.00 x 0.054 inch

1шт.

22

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

23

528290R1

GUIDE RING

COLLAR control handle

1шт.

24

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW hex socket, No. 8 x 3/8 inch

1шт.

25

402584R1

BUTTON

KNOB control handle

1шт.

26

528942R1

PLATE ASSY.

PLATE mounting

1шт.

27

442720

BALL JOINT

JOINT ball, 5/16 inch NF, type C

1шт.

27

310673R1

BALL JOINT

JOINT ball, 5/16 inch NF, type A, Serial Range: (Optional-442720)

1шт.

27

310673R91

BALL JOINT

JOINT ball, 5/16 inch NF, type G, Serial Range: (Optional-442720)

1шт.

28

1282952C1

STRIP

locking

1шт.

29

399509R1

BOLT,Shldr, Hex, 3/8" - 16 x 1", W/ Wshr

BOLT shoulder

1шт.

30

23408R1

WASHER

flat, 0.461 x 0.75 x 0.054 inch

1шт.

30

21756R1

WASHER

flat, 0.469 x 0.75 x 0.027 inch

1шт.

31

425-115

NUT,5/16"-24, G5

hex, 5/16 inch NF, grade 5

2шт.

32

528946R2

ROD

lockout

1шт.

33

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

34

1500212C92

PEDAL ASSY.

PEDAL clutch, with bushing

1шт.

35

533593R1

PRODUCT GRAPHIC

DECAL forward/reverse

1шт.
