Запчасти Case IH 585 (6-252) - CLUTCH HOUSING AND CONNECTIONS (06) - POWER TRAIN

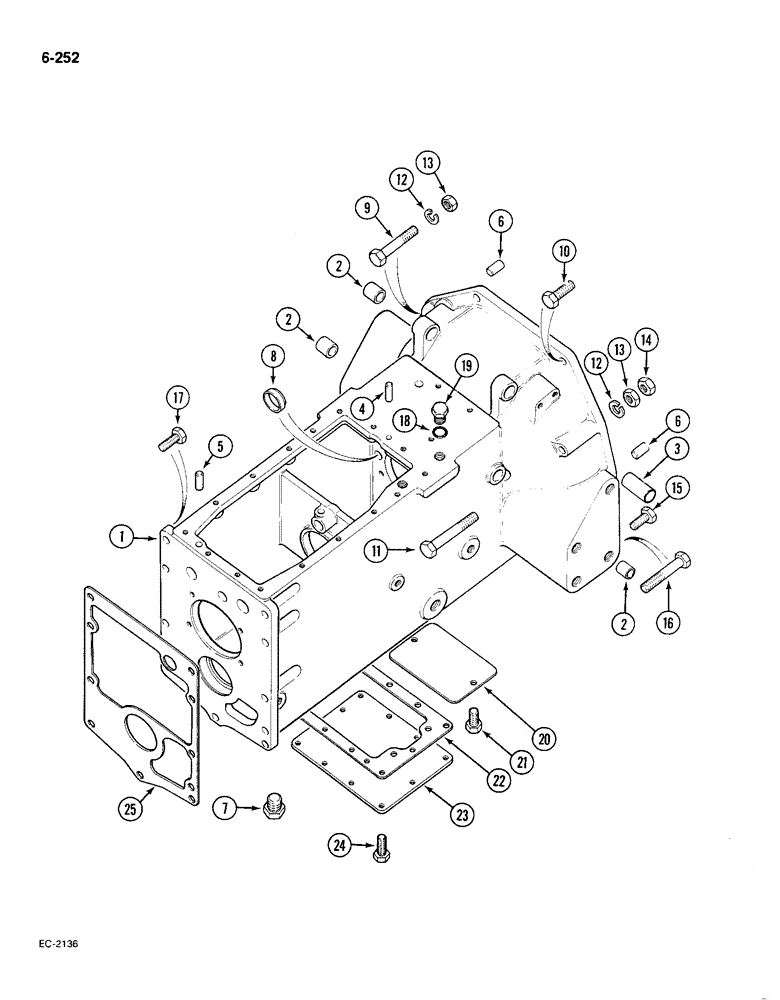

Схема запчастей Case IH 585 - (6-252) - CLUTCH HOUSING AND CONNECTIONS (06) - POWER TRAIN
8
16
18
17
23
2
4
14
12
13
24
1
22
12
5
6
3
25
6
20
2
2
10
13
21
19
15
11
7
9

Артикул

Название

Примечание

Количество

1

94294C91

HOUSING

clutch, with bushing, dowels and plugs, Includes: Ref. 2-8

1шт.

2

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

clutch and brake shafts

3шт.

3

537099R1

NO LONGER SERVICED

BUSHING left brake pedal pivot

1шт.

3

539834R1

BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L

left brake pedal pivot, Serial Range: (Optional-537099R1)

1шт.

4

19962R1

DOWEL,3/8" x 3/4"

PIN dowel, 3/8 x 3/4 inch

1шт.

5

20556R1

DOWEL,1/2" x 3/4"

PIN dowel, 1/2 x 3/4 inch

1шт.

6

19904R1

DOWEL,1/2" x 1"

PIN dowel, 1/2 x 1 inch

2шт.

7

444836

PLUG,Hex Hd, 3/4"-14

automotive hex, 3/4 inch NPTF

1шт.

7

3113103R1

PLUG

automotive hex, 3/4 inch NPTF, Serial Range: (Optional-444836)

1шт.

8

327411R1

PLUG,Cup, 5/8"

cup, 5/8 inch

1шт.

9

186295

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

hex, 1/2 NC x 5-1/2 inch, grade 5

1шт.

10

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

- hex, 1/2" NC x 3-1/4", grade 5

1шт.

11

187238

BOLT,Hex, 1/2" - 13 x 6", Gr 5

hex, 1/2 NC x 6 inch, grade 5

1шт.

12

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

102637

NUT,1/2"-13, G5

2шт.

14

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

15

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(thru spacer to housing) Hex, 1/2"-13 x 1 3/4", G5

4шт.

16

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

hex, 1/2 NC x 3-1/2 inch, grade 5 (thru pan and spacer to clutch housing)

2шт.

17

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

hex, 1/2 NC x 1-1/2 inch, grade 8

9шт.

18

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6 (t.a. pressure port plug)

1шт.

19

9410359

PLUG

O-ring boss, 1/2 inch OD tube (t.a. pressure port)

1шт.

20

399817R1

COVER

clutch compartment

1шт.

21

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

22

402556R2

GASKET

clutch housing bottom rear cover

1шт.

23

402182R1

COVER

clutch housing bottom rear, without forward and reverse

1шт.

23

402547R97

VALVE

pressure regulator, with forward and reverse, see Figure 8-428

1шт.

23

94121C92

VALVE

pressure regulator, with forward and reverse, see Figure 8-436

1шт.

24

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

w/o forward and reverse Hex, 3/8"-16 x 3/4", G5, Full Thd

11шт.

24

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, grade 5, with forward and reverse

9шт.

24

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5, with forward and reverse

2шт.

25

399814R4

GASKET

clutch housing to rear frame, Serial Range: -18001

1шт.

25

B501074

LOCTITE

GASKET liquid, 160ml tube, Start Serial: 18001

1шт.

Выбрано товаров: 32
