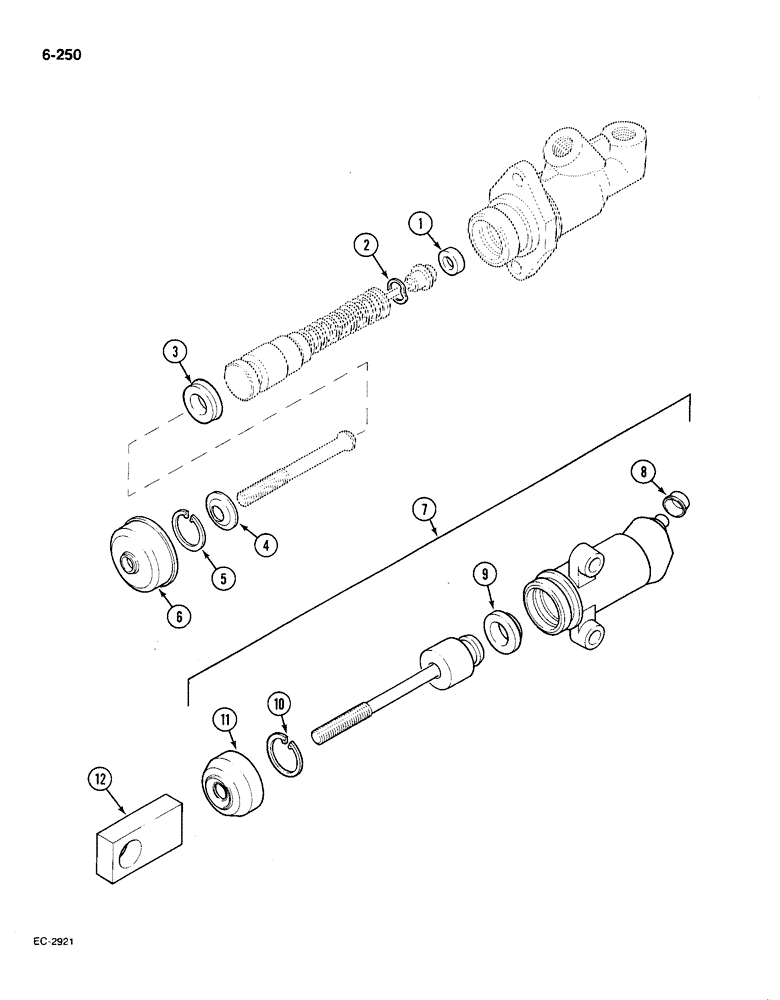

Запчасти Case IH 585 (6-250) - CLUTCH HYDRAULIC CYLINDERS, WITH CAB, CLUTCH MASTER CYLINDER (06) - POWER TRAIN

3129807R91

MASTER CYLINDER

CYLINDER clutch master, Includes: Ref. 1-6 and P/N 80327C91

1шт.

86011371R

REMAN-MASTER CYLINDE

585 CASE IH TRACTOR, CYLINDER Clutch Master, W/ Cab (1/86-12/90), Reman for New PN 3129807R91

1шт.

86011371C

CORE-MASTER CYLINDER

Return Number

1шт.

80327C91

KIT

service, clutch master cylinder, Includes: Ref. 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL valve

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER spring

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL gland

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER retaining

1шт.

5

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

6

NSS

NOT SOLD SEPARAT

COVER dust

1шт.

3129799R91

MASTER CYLINDER

CYLINDER clutch slave, Includes: Ref. 7-12 and KIT

1шт.

7

3129800R91

MASTER CYLINDER

CYLINDER slave, Includes: Ref. 8-11 and P/N 80318C91

1шт.

80318C91

GASKET KIT

KIT service, slave cylinder, clutch, Includes: Ref. 8-11

1шт.

8

NSS

NOT SOLD SEPARAT

CAP dust, clutch slave cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL gland, clutch slave cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

RING retaining, clutch slave cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

COVER dust, clutch slave cylinder

1шт.

12

3129801R1

CLEVIS

EYE connecting, clutch slave cylinder

1шт.
