Запчасти Case IH 585 (6-246) - CLUTCH CONTROLS, WITH CAB (06) - POWER TRAIN

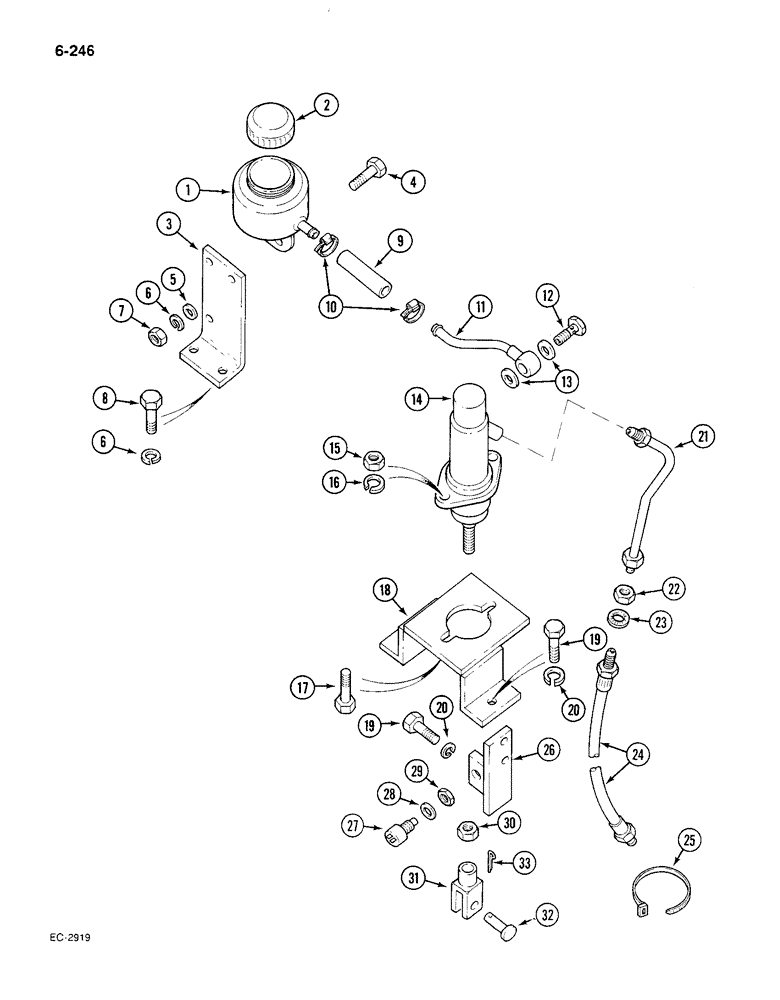

Схема запчастей Case IH 585 - (6-246) - CLUTCH CONTROLS, WITH CAB (06) - POWER TRAIN
29
4
18
25
24
19
6
21
2
31
20
9
30
13
10
22
16
19
8
3
14
28
17
11
15
23
12
7
1
20
27
33
6
5
32
26

Артикул

Название

Примечание

Количество

1

1500732C92

RESERVOIR

clutch, complete with cap, Includes: Ref. 2

1шт.

2

1500731C2

PLUG

CAP clutch reservoir

1шт.

3

3129809R1

SUPPORT

BRACKET reservoir support

1шт.

4

930609R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

hex, M6 x 25 mm, grade 8.8

2шт.

5

933346R1

WASHER,M6 x 12 x 1.6

flat, 6.4 x 12.5 x 1.6 mm

2шт.

6

933833R1

LOCK WASHER,M6

WASHER lock, M6

4шт.

7

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

2шт.

8

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, M6 x 20 mm, grade 8.8

2шт.

9

3129793R1

HOSE,7.90 mm ID x 45.00 mm, SAE 100R6

- Reservoir to clutch master cylinder 7.90 mm ID x 45.00 mm, SAE 100R6

1шт.

10

3125239R1

COLLAR

CLAMP hose, worm drive

2шт.

11

3129811R1

PIPE ASSY.

PIPE reservoir to clutch master cylinder

1шт.

12

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW hollow

1шт.

13

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.

14

3129807R91

MASTER CYLINDER

CYLINDER clutch master (see Figure 6-250)

1шт.

14

86011371R

REMAN-MASTER CYLINDE

585 CASE IH TRACTOR, CYLINDER Clutch Master, W/ Cab (1/86-12/90), Reman for New PN 3129807R91

1шт.

14

86011371C

CORE-MASTER CYLINDER

Return Number

1шт.

15

30284R1

NUT,M10, Cl 10

hex, M10, class 10

2шт.

16

933965R1

LOCK WASHER,M10

2шт.

17

930140R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

hex, M10 x 30 mm, grade 8.8

2шт.

18

3129804R1

SUPPORT ASSY.

SUPPORT master cylinder

1шт.

19

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

hex, M8 x 20 mm, grade 8.8

4шт.

20

934309R1

LOCK WASHER,M8

WASHER lock, M8

4шт.

21

1502285C1

PIPE ASSY.

PIPE clutch master, Serial Range: cylinder-bulkhead

1шт.

22

3129654R1

THIN NUT

hex, M14 x 1.5 mm, thin section

1шт.

23

934492R1

LOCK WASHER,Ext Tooth, M14

WASHER lock, external tooth, 14 mm

1шт.

24

3129814R91

HOSE,450.00 mm, SAE 100R3

- Bulkhead to slave cylinder 450.00 mm, SAE 100R3

1шт.

25

306132C1

CABLE TIE,14.5" L

STRAP cable, 4.0 max bundle

1шт.

26

3129802R1

BRACKET

pedal stop, M16 hole

1шт.

26

1970883C1

BRACKET

pedal stop, 5/8-32 inch hole

1шт.

27

3114409R92

NEUTRAL START SWITCH

SWITCH plunger, neutral start (without 2 sps)

1шт.

27

83907C2

SWITCH

plunger, neutral start (with 2 sps)

1шт.

27

1964885C2

SWITCH

plunger (Replaces 83907C2)

1шт.

28

Q3476

WASHER

flat, 0.594 x 0.938 x 0.21 inch

1шт.

29

3112570R1

NUT

NUT safety switch locking (for use with plunger switch 3114409R92)

1шт.

30

30168R1

NUT,M10, Cl 10

hex, M10, class 10

1шт.

31

3222848R1

CLEVIS

1шт.

32

1500530C1

CLEVIS PIN

PIN clevis

1шт.

33

1500531C1

CLIP, SPRING

CLIP spring, retaining

1шт.

Выбрано товаров: 38
