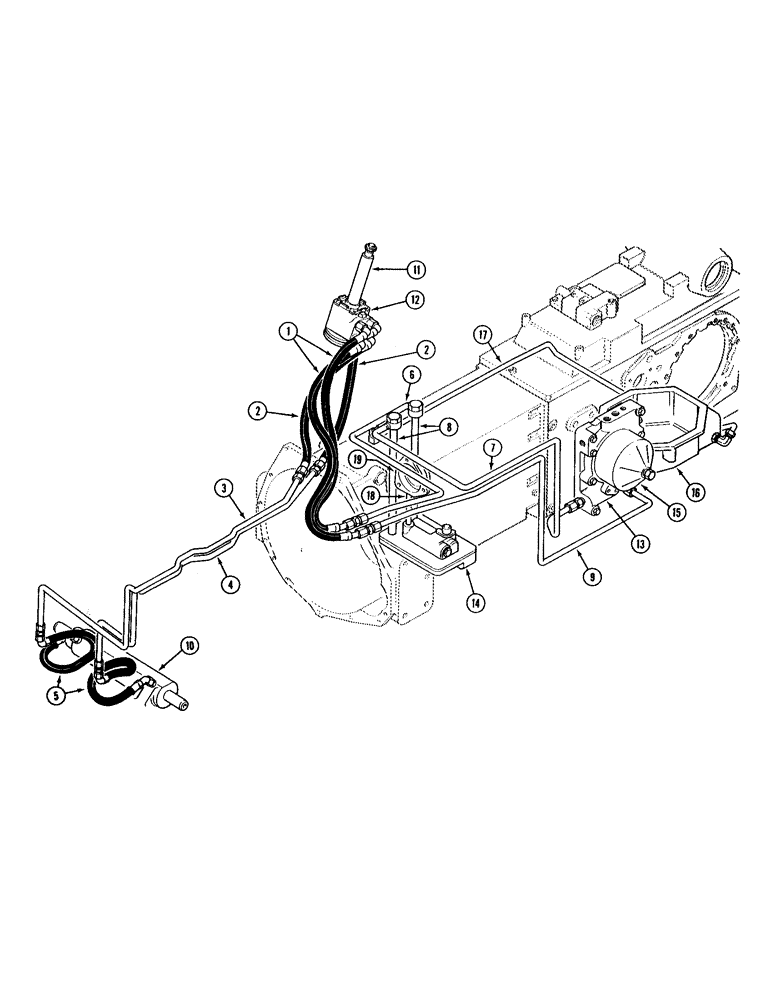

Запчасти Case IH 585 (1-06) - PICTORIAL INDEX, STEERING LINES (00) - PICTORIAL INDEX

1

HOSE - steering, pressure/return, Page 5-185, 187, 189

1шт.

2

HOSE - steering, right and left cylinder, Page 5-175, 177

1шт.

3

TUBE - steering, front right, Page 5-175, 177

1шт.

4

TUBE - steering, front left, Page 5-175, 177

1шт.

5

HOSE - steering cylinder, Page 5-175, 177

1шт.

6

TUBE - two speed power shift, inlet, Page 5-185, 187

1шт.

7

TUBE - two speed power shift, outlet, Page 5-185, 187

1шт.

8

TUBE - steering pump, pressure, Page 8-431, 433

1шт.

9

TUBE - power steering, pressure, Page 5-185, 187, 198

1шт.

10

CYLINDER - steering, Page 5-193, 197, 199, 201

1шт.

11

SHAFT - steering, Page 5-165, 167, 171

1шт.

12

VALVE - steering, Page 5-203, 205

1шт.

13

VALVE - multiple control, Page 8-425

1шт.

14

VALVE - pressure regulator, Page 8-437, 439

1шт.

15

FILTER - hydraulic, oil, Page 8-411

1шт.

16

BOX - transfer gear, Page 6-353

1шт.

17

TUBE - transfer gearbox, Page 5-185

1шт.

18

TUBE - oil inlet, Page 8-431, 433, 435

1шт.

19

CAGE - IPTO and clutch retainer, Page 6-291

1шт.
